ZRC250
PRECISION 2.5 VOLT LOW KNEE CURRENT VOLTAGE REFERENCE
ZRC250
Document number: DS32182 Rev. 6 - 2
1 of 5
March 2012
© Diodes Incorporated
A Product Line of
Diodes Incorporated
Description
The ZRC250 uses a bandgap circuit design to achieve a
precision micropower voltage reference of 2.5 volts. The
device is available in a small outline surface mount package,
ideal for applications where space saving is important, as
well as a package for through hole requirements.
The ZRC250 design provides a stable voltage without an
external capacitor and is stable with capacitive loads. The
ZRC250 is recommended for operation between 20
μA and
5mA and so is ideally suited to low power and battery
powered applications.
Excellent performance is maintained to an absolute
maximum of 25mA, however the rugged design and 20 volt
processing allows the reference to withstand transient effects
and currents up to 200mA. Superior switching capability
allows the device to reach stable operating conditions in only
a few microseconds.
Features
•
Small outline SOT23 package
•
No stabilizing capacitor required
•
Low knee current, 15
μA typical
• Typical
T
C
30ppm/°C
•
Typical slope resistance 0.4
Ω
•
±3, ±2 and ±1% tolerance
•
Industrial temperature range
•
Operating current 20
μA to 5mA
•
Transient response, stable in less than 10
μs
•
Green molding compound (No Br, Sb)
Applications
•
Battery powered and portable equipment.
• Instrumentation.
• Test
equipment.

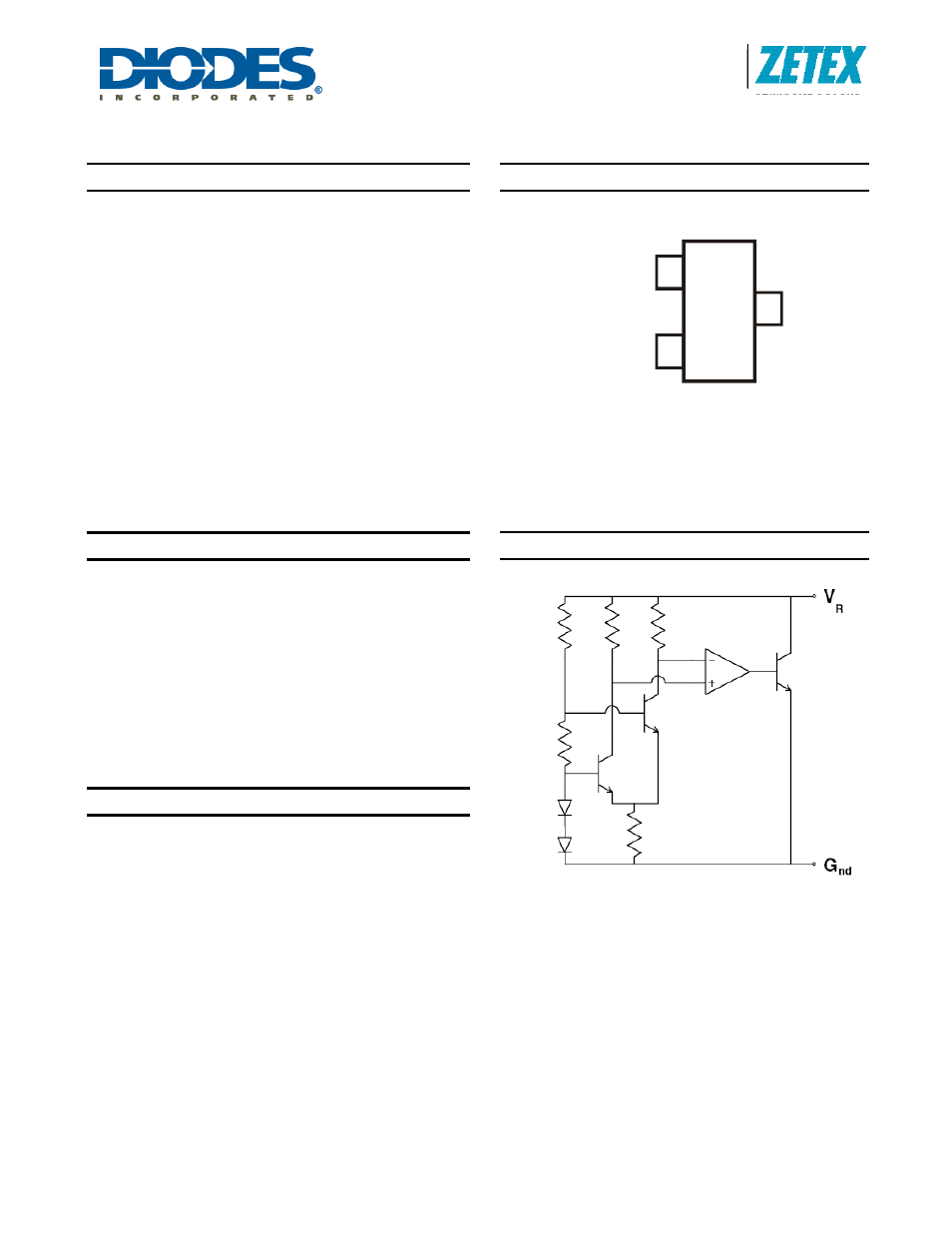

Pin Assignments
SOT23 Package Suffix – F
1
3
2
V
R
GND
(Top View)
Pin 1 floating or connected to pin 2
Typical Application Circuit
