ZRB500
PRECISION 5V MICROPOWER VOLTAGE REFERENCE
ZRB500
Document number: DS32240 Rev. 6 - 2
1 of 5
March 2012
© Diodes Incorporated
A Product Line of
Diodes Incorporated
Description
The ZRB500 uses a bandgap circuit design to achieve a
precision micropower voltage reference of 5.0 volts. The
device is available in small outline surface mount packages,
ideal for applications where space saving is important, as
well as packages for through hole requirements.
The ZRB500 design provides a stable voltage without an
external capacitor and is stable with capacitive loads. The
ZRB500 is recommended for operation between 50µA and
15mA and so is ideally suited to low power and battery
powered applications.
Excellent performance is maintained to an absolute
maximum of 25mA, however the rugged design and 20 volt
processing allows the reference to withstand transient effects
and currents up to 200mA. Superior switching capability
allows the device to reach stable operating conditions in only
a few microseconds.
Features
•
± 3%, ± 2% and 1% tolerance
•
Operating current 50µA to 15mA
•
Typical TC 15ppm/°C
•
Transient response, stable in less than 10µs
•
Industrial temperature range
•
Small outline SOT23 style package
•
Green molding compound (No Br, Sb)

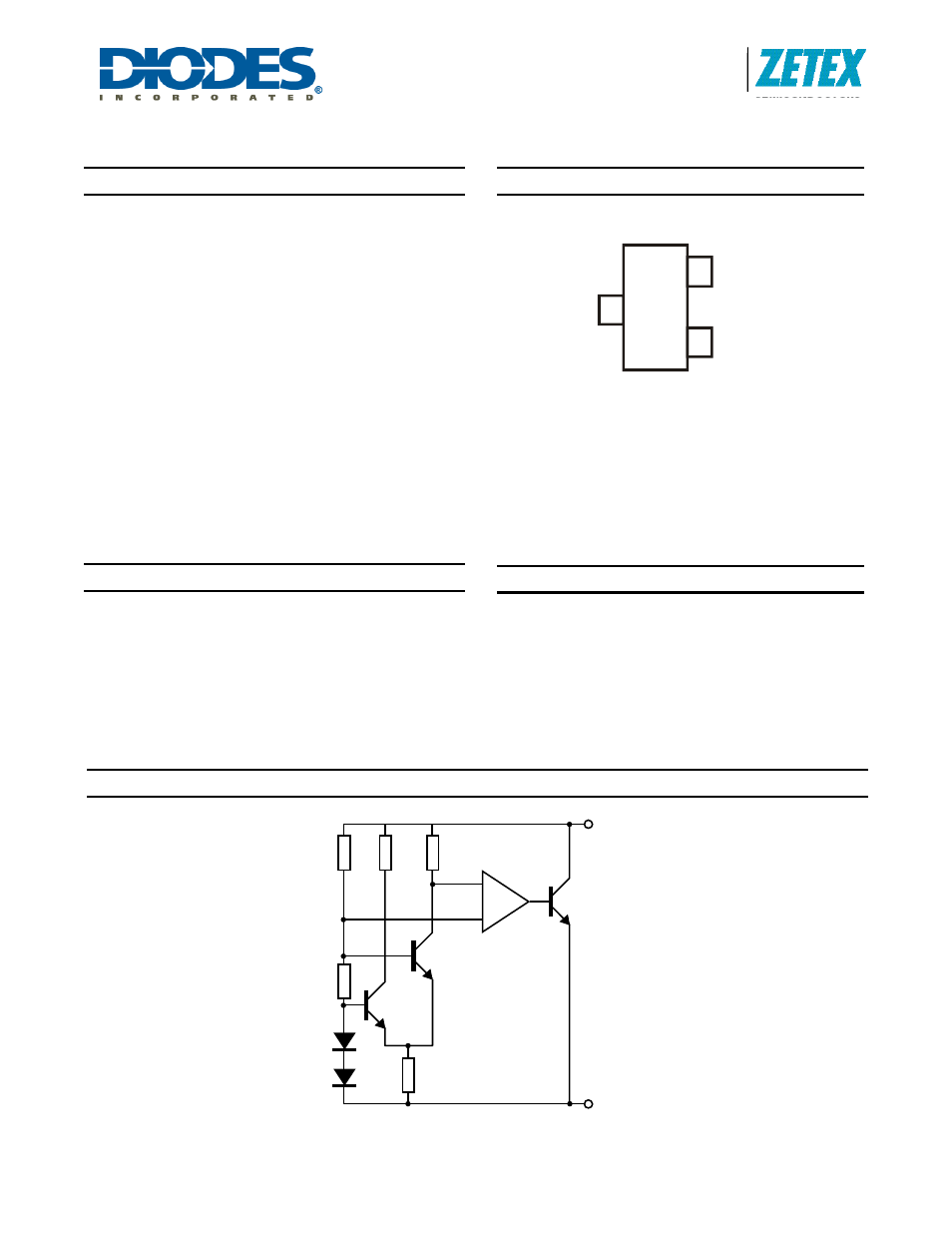

Pin Assignments
SOT23 Package Suffix – F
1
3
2
V
R
GND
(Top View)
Pin 1 floating or connected to pin 2
Applications
•
Battery powered and portable equipment
•
Metering and measurement systems
• Instrumentation
• Test
equipment
•
Data acquisition systems
•
Precision power supplies
Typical Application Circuit
V
R
GND
-
+
