Zmy20m, Magnetic field sensor with internal magnet

S E M I C O N D U C T O R S
DESCRIPTION
The ZMY20M is an extremely sensitive magnetic sensor
employing the magneto-resistive effect of thin film permalloy.
It allows the measurement of magnetic fields or the detection
of magnetic parts.
The highly sensitive and small size
magnetoresistive sensors consist of chip covered with thin film
permalloy stripes. These stripes form a Wheatstone bridge,
whose output voltage is proportional to the magnetic field

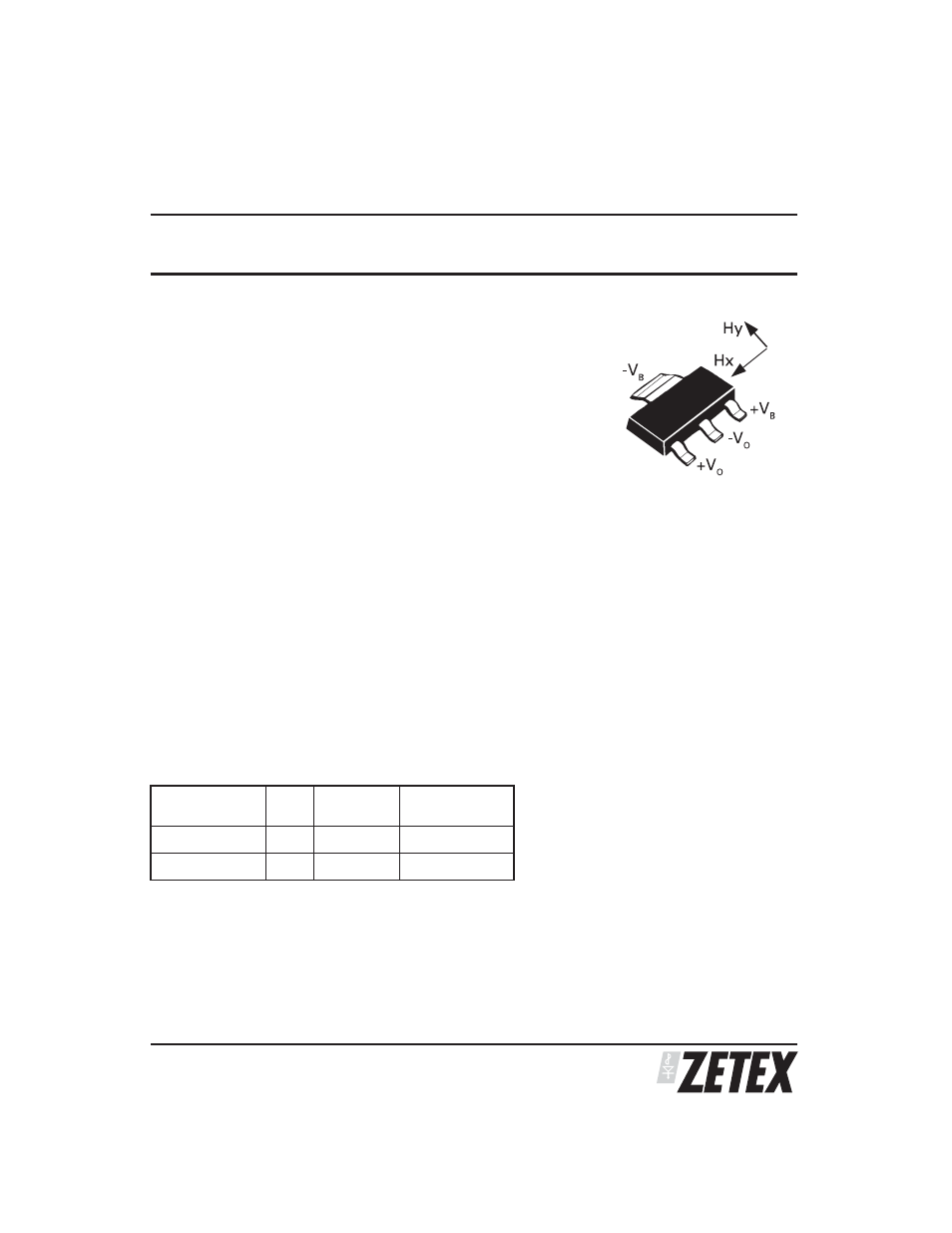

component Hy. The required perpendicular field Hx which is
necessary to stabilize sensor operation, is created by an
internal permanent magnet.
FEATURES
•
Package: SOT223
•
Supply voltage 12V
•
Internal magnet for creation of auxiliary field Hx
•
Available on 12mm tape
APPLICATIONS
•
Linear position measurement
•
Angular position measurement
•
Navigation (electronic compass)
•
Revolution measurement
DEVICE MARKING
•
ZMY20M
ZMY20M
ISSUE 2 - JANUARY 2004
MAGNETIC FIELD SENSOR WITH INTERNAL MAGNET
1
DEVICE
REEL
SIZE
TAPE WIDTH
QUANTITY PER
REEL
ZMY20MTA
7”
12mm
1,000
ZMY20MTC
13”
12mm
4,000
ORDERING INFORMATION
