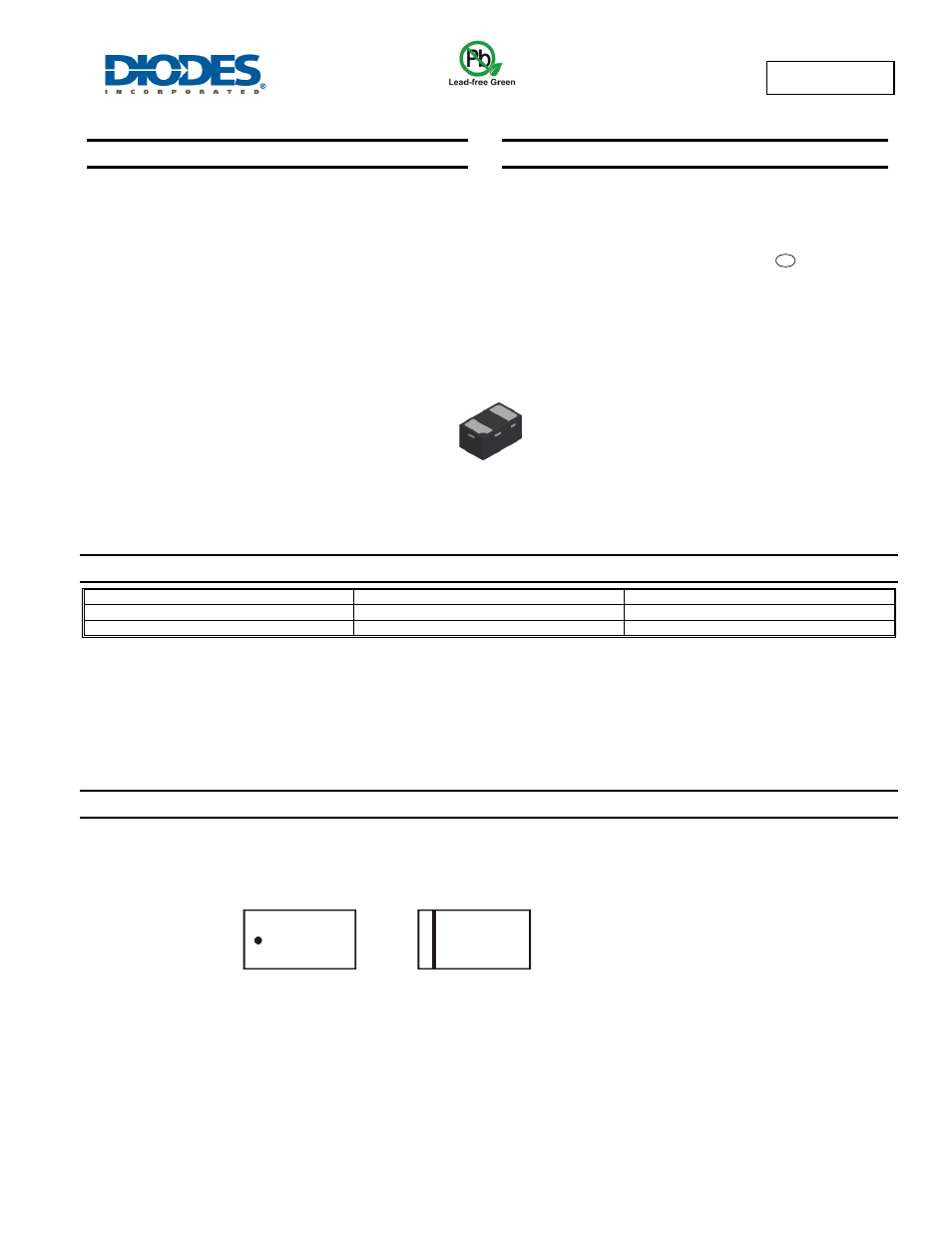

TPD6V8LP
SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Features
Planar Die Construction
Ultra-Small Leadless Surface Mount Package
Unidirectional
Ideally Suited for Automated Assembly Processes
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case:
X1-DFN1006-2
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals:
Finish
NiPdAu over Copper leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.001 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
TPD6V8LP-7
X1-DFN1006-2
3000/Tape & Reel
TPD6V8LP-7B
X1-DFN1006-2
10,000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Bottom View
9C = Product Type Marking Code
TPD6V8LP-7
TPD6V8LP-7B
Bar Denotes
Cathode Side
Dot Denotes
Cathode Side
9C
9C
X1-DFN1006-2
e4
