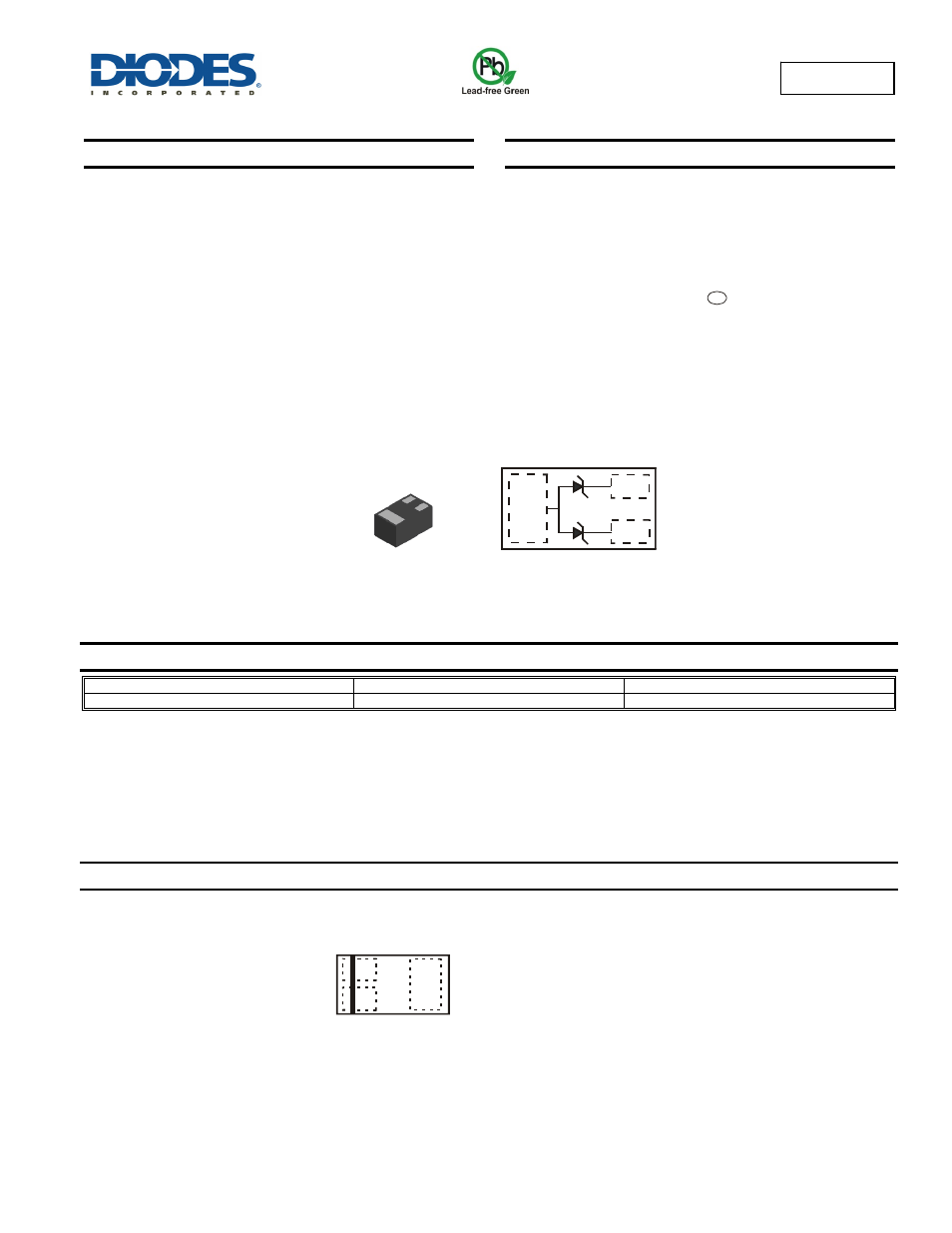

Diodes T5V0DLP User Manual
Features, Mechanical data, Ordering information
T5V0DLP
Document number: DS31906 Rev. 3 - 2
1 of 4
March 2014
© Diodes Incorporated
T5V0DLP
ADVAN
CE I
N
F
O
RM
ATI
O
N
LOW CAPACITANCE SURFACE MOUNT DUAL TVS
Features
25 Watts Peak Pulse Power (tp = 8x20µs)
IEC 61000-4-2 (ESD): Air – 15kV, Contact – 8kV
IEC61000-4-4 (EFT): 40A 5/50ns
Dual TVS for protection of up to two data lines
Low Capacitance (9pF typ), suitable for USB2.0 dataline
protection
Subminiature, low-profile package suitable for portable
applications - case outline of only 1.0 * 0.6 * 0.5mm
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case:
X1-DFN1006-3
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections Indicator: Cathode Bar
Terminals:
Finish
NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208
Weight: 0.0009 grams
Ordering Information
(Note 4)
Part Number
Case
Packaging
T5V0DLP-7B
X1-DFN1006-3
10,000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Bottom View
Device Schematic
X1-DFN1006-3
e4
Bar Denotes
Cathode Side
AB = Product Type Marking Code
AB
