T3V3S5 / T5V0S5 / T6V0S5 / T12S5
Document number: DS31112 Rev. 10 - 2
3 of 4
August 2013
© Diodes Incorporated
T3V3S5 / T5V0S5 / T6V0S5 / T12S5

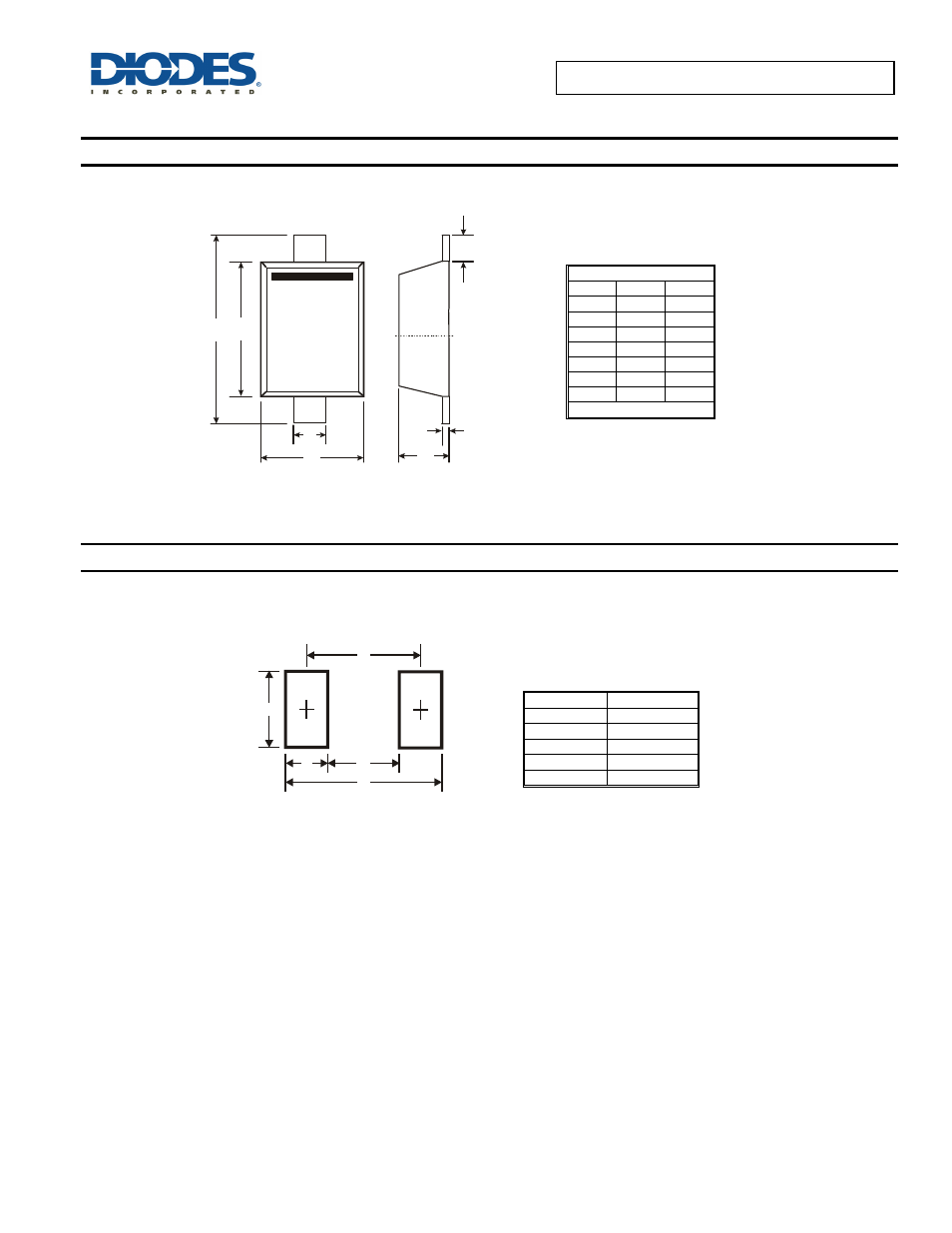

Package Outline Dimensions
rsion.
Suggested Pad Layout
rsion.
SOD523
Dim
Min
Max
A
0.25
0.35
B
0.70
0.90
C
1.50
1.70
H
1.10
1.30
K
0.55
0.65
L
0.10
0.30
M
0.10 0.12
All Dimensions in mm
Dimensions Value (in mm)
Z
2.3
G
1.1
X
0.8
Y
0.6
C
1.7
Z
X
C
G
Y
H
C
A
B
K
M
L
