Diodes ZXMP7A17GQ User Manual
Product summary, Description, Applications

ZXMP7A17GQ
Document Number DS36688 Rev. 2 - 2
1 of 6
December 2013
© Diodes Incorporated
ADVAN
CE I
N
F
O
RM
ATI
O
N
ZXMP7A17GQ
70V P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on)
I
D
T
A
= +25°C
-70V
160mΩ @ V
GS
= -10V
-2.6A
250mΩ @ V
GS
= -4.5V
-1.6A
Description
This MOSFET has been designed to minimize the on-state resistance
and yet maintain superior switching performance, making it ideal for
high efficiency power management applications.
Applications
Motor
Control
Transformer Driving Switch
DC-DC
Converters
Power Management Functions
Uninterrupted Power Supply
Features and Benefits
100% Unclamped Inductive Switch (UIS) test in production
Low
On-Resistance
Fast Switching Speed
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Available
Mechanical Data
Case:
SOT223
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals Connections: See diagram below
Terminals: Finish - Matte Tin annealed over Copper lead frame.
Solderable per MIL-STD-202, Method 208
Weight: 0.112 grams (approximate)
Ordering Information
(Note 4 & 5)
Part Number
Qualification Case
Packaging
ZXMP7A17GQTA
Automotive
SOT223
1,000/Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer
5. For packaging details, go to our website at
Marking Information

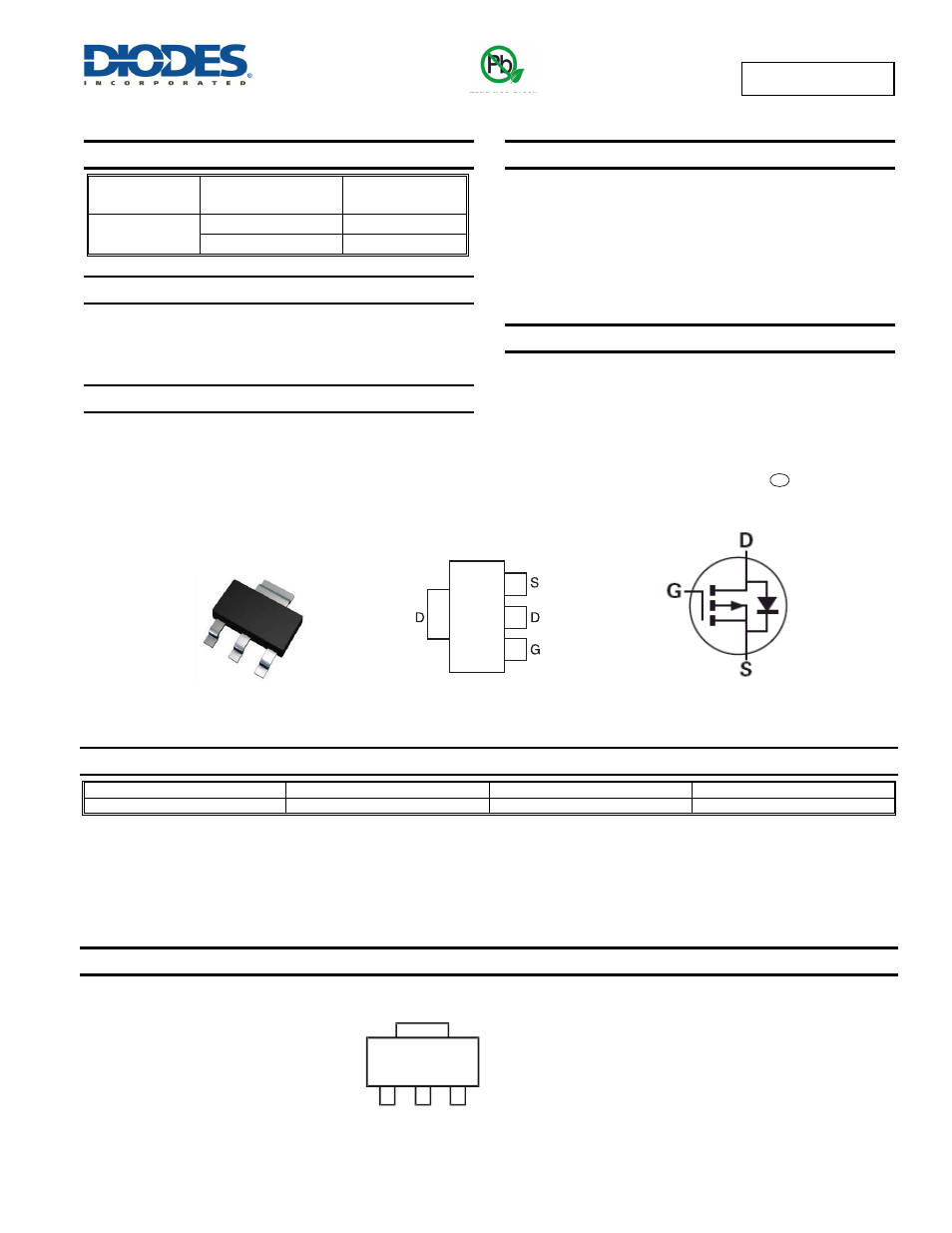

Pin Out - Top View
Top View
SOT223
ZXMP
7A17
e3
Green
Equivalent Circuit
ZXMP7A17 = Product Type Marking Code
