100V N-CHANNEL ENHANCEMENT MODE MOSFET IN SOT23 PACKAGE
Product Summary
BV
DSS
R
DS(ON) Max
I
D
T
A
= +25°C
(Note 6)
100V
700m
Ω @ V
GS
= 10V
0.76A
900m
Ω @ V
GS
= 6V
0.67A
Description
This MOSFET has been designed to minimize the on-state resistance
(R
DS(on)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Applications
•
DC-DC Converters
•
Power Management Functions
•
Motor Control
•
Disconnect switches
Features
• Low
On-Resistance
• Low
Threshold
•
Fast Switching Speed
•
Low Gate Drive
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT23
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish
•
Weight: 0.008 grams (approximate)
Ordering Information
(Note 4)
Part Number
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXMN10A07FTA 7N1
7
8
3,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at

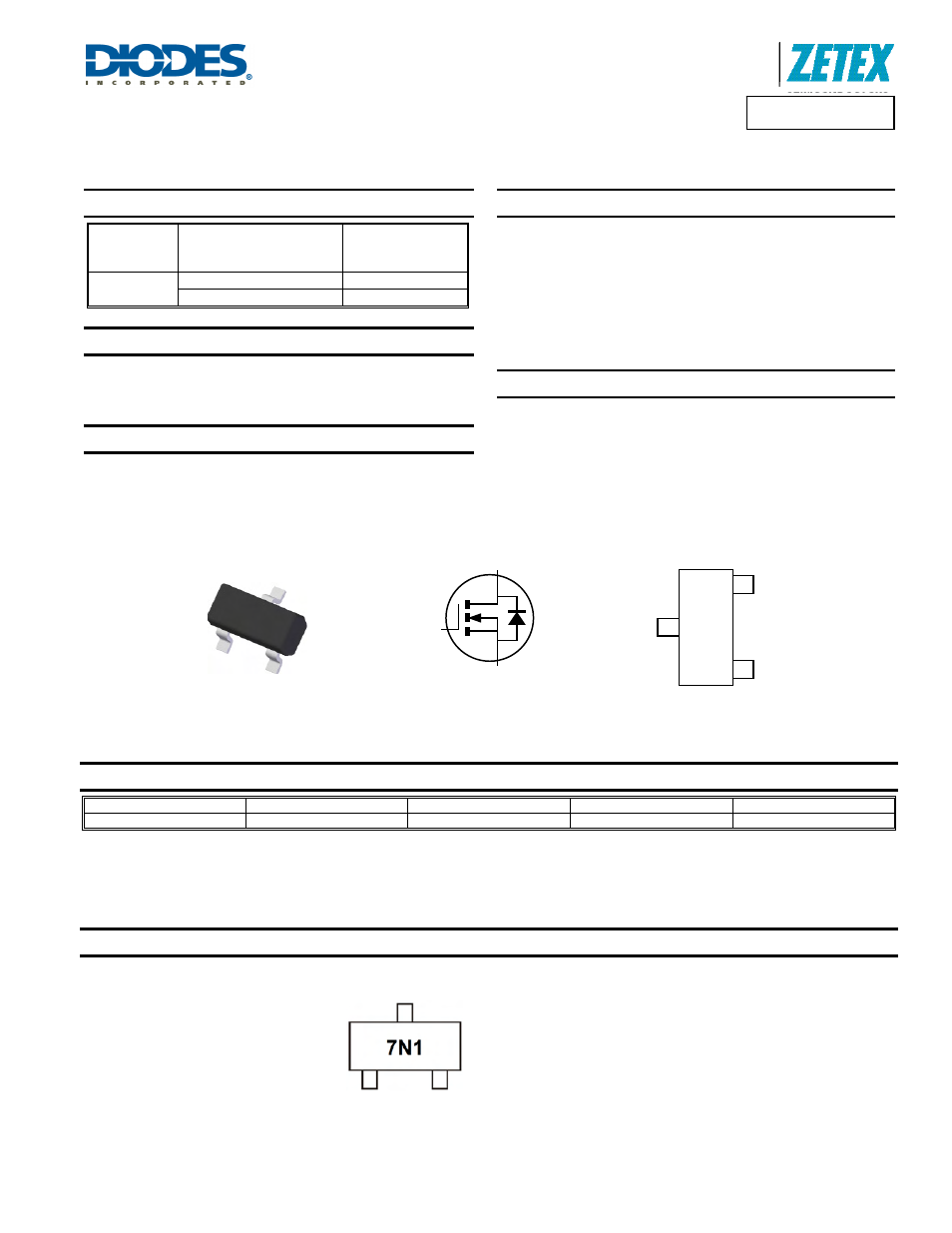

Marking Information
Top View
SOT23
Device Symbol
Top View
Pin-Out
D
S
G
D
S
G
7N1 = Product Type Marking Code
