ZVN4306A
Document number: DS33367 Rev. 4 - 2
2 of 6
January 2012
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZVN4306A

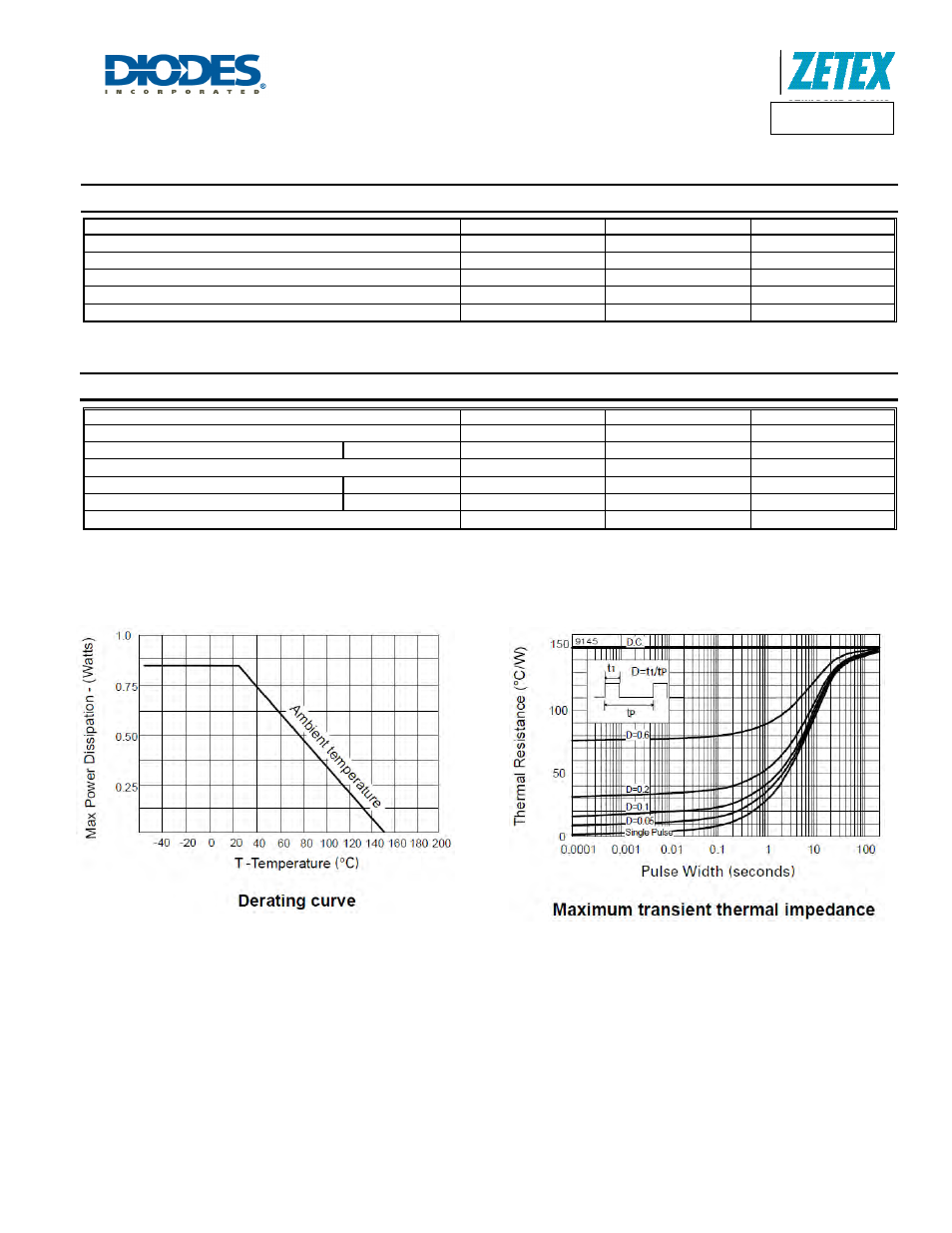

Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic
Symbol
Value
Unit
Drain-Source Voltage
V
DSS
60 V
Gate-Source Voltage
V
GSS
±20 V
Continuous Drain Current
I
D
1.1 A
Practical Continuous Drain Current
I
DP
1.3 A
Pulsed Drain Current
I
DM
15 A
Thermal Characteristics
@T
A
= 25°C unless otherwise specified
Characteristic Symbol
Value
Unit
Power Dissipation
P
D
850 mW
Practical Power Dissipation
(Note 2)
P
DP
1.13 W
Thermal Resistance, Junction to Ambient
R
θJA
150 °C/W
Thermal Resistance, Junction to Ambient
(Note 2)
R
θJA
111 °C/W
Thermal Resistance, Junction to Leads
(Note 3)
R
θJL
50 °C/W
Operating and Storage Temperature Range
T
J
,
T
STG
-55 to +150
°C
Notes:
2. For a device mounted on 25mm X 25mm X 1.6mm FR-4 PCB with high coverage of single sided 1oz copper, in still air condition.
3. Thermal resistance from junction to solder-point
