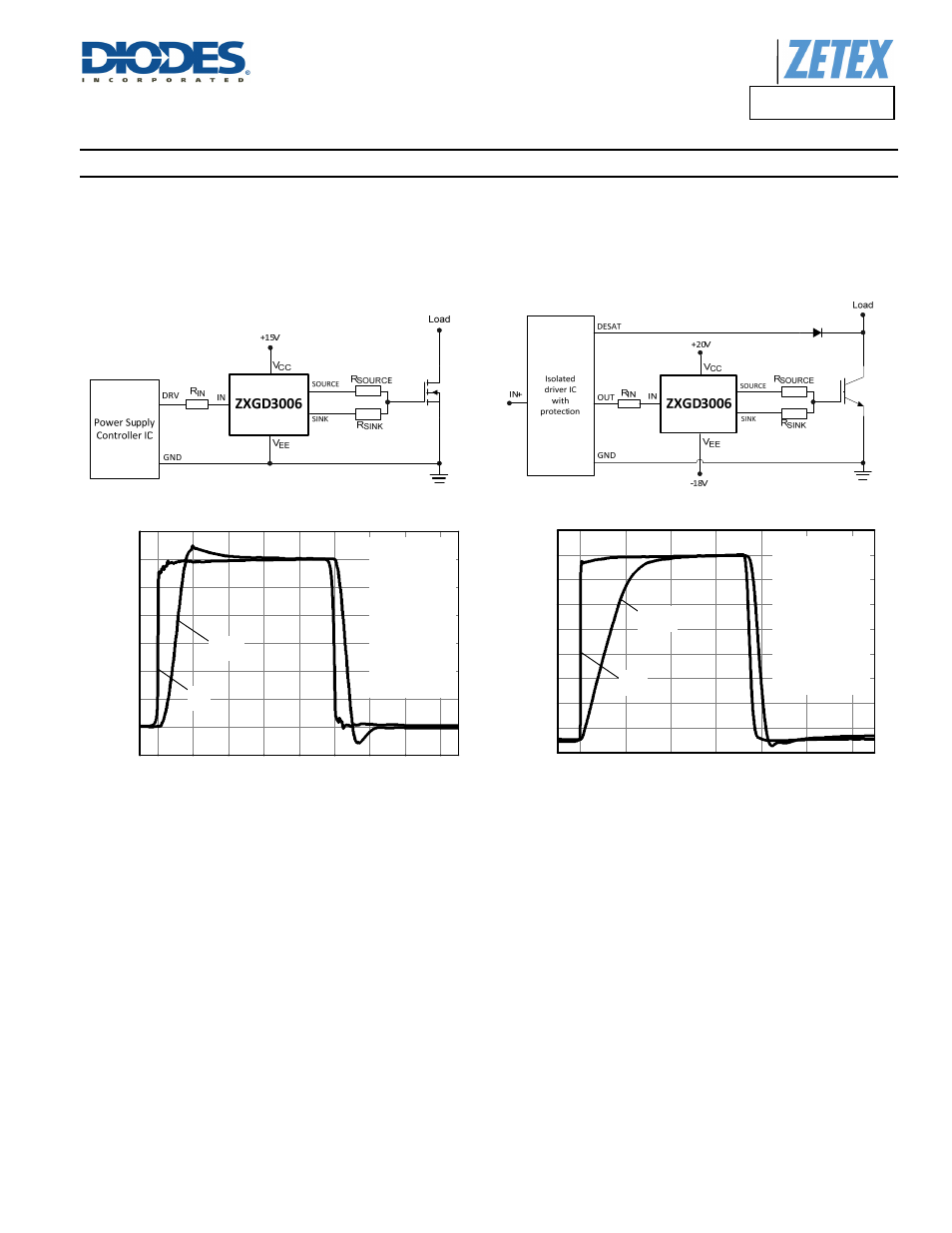

Circuit Examples
ZXGD3006 driving a MOSFET
Application example of the ZXGD3006 driving the gate of a
MOSFET from 0 to +15V with R
SOURCE
= R
SINK
= 0Ω
Switching Time Characteristic
ZXGD3006 driving an IGBT
Application example of ZXGD3006 driving the gate of an IGBT with
independent t
on
and t
off
using asymmetric R
SOURCE
and R
SINK
In
addition, the gate is driven negative to -18V to prevent dV/dt induced
false triggering.
Switching Time Characteristic
