ZXGD3004E6
Issue 1 - October 2007 2 www.zetex.com
© Zetex Semiconductors plc 2007
Applications
Power MOSFET and IGBT Gate Driving in
• Synchronous switch-mode power supplies
• Secondary side synchronous rectification
• Plasma Display Panel power modules
• 1, 2 and 3-phase motor control circuits
• Audio switching amplifier power output stages

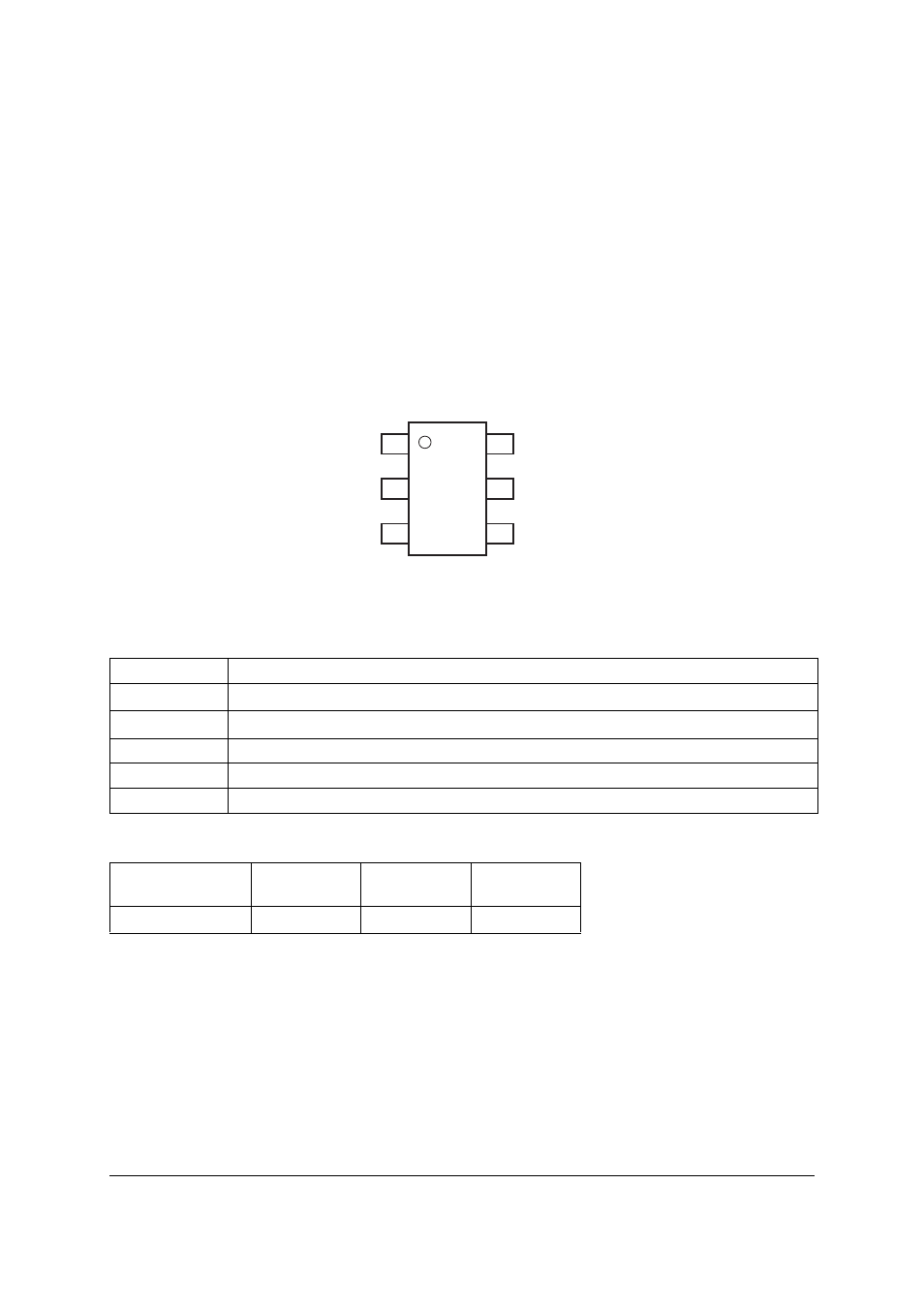

Pin configuration
Pin description
Ordering information
Device marking
3004
Pin Name Pin Function
V
CC
Driver supply.
IN
1
/ IN
2
Driver input pins. These are normally connected together by circuit tracks.
GND Ground.
SOURCE Source current output.
SINK Sink current output.
Device Reel size
(inches)
Tape width
(mm)
Quantity per
reel
ZXGD3004E6TA 7 8 embossed 3000
V
CC
IN
1
GND
SOT236
Top view
SOURCE
IN
2
SINK
