ZXTN4006Z

Datasheet Number: DS35609 Rev. 1 - 2

1 of 5

www.diodes.com

January 2012

© Diodes Incorporated

A Product Line of

Diodes Incorporated

ZXTN4006Z

200V NPN LED DRIVING TRANSISTOR IN SOT89

Features

• BV

CEO

> 200V

Max continuous current I

C

= 1A

h

FE

> 100 @ I

C

= 150mA, V

CE

= 320mV

Lead Free, RoHS Compliant (Note 1)

Halogen and Antimony Free "Green" Device (Note 2)

Qualified to AEC-Q101 Standards for High Reliability

Applications

LED TV backlight

Mechanical Data

• Case:

SOT89

Case material: molded Plastic. “Green” molding Compound.

UL Flammability Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish

Weight: 0.052 grams (Approximate)























Ordering Information

(Note 3)

Product

Marking

Reel size (inches)

Tape width (mm)

Quantity per reel

ZXTN4006ZTA 1S5

7

12

1000

units

Notes:

1. No purposefully added lead.
2. Diodes Inc’s “Green” Policy can be found on our website at http://www.diodes.com

3. For Packaging Details, go to our website at http://www.diodes.com.


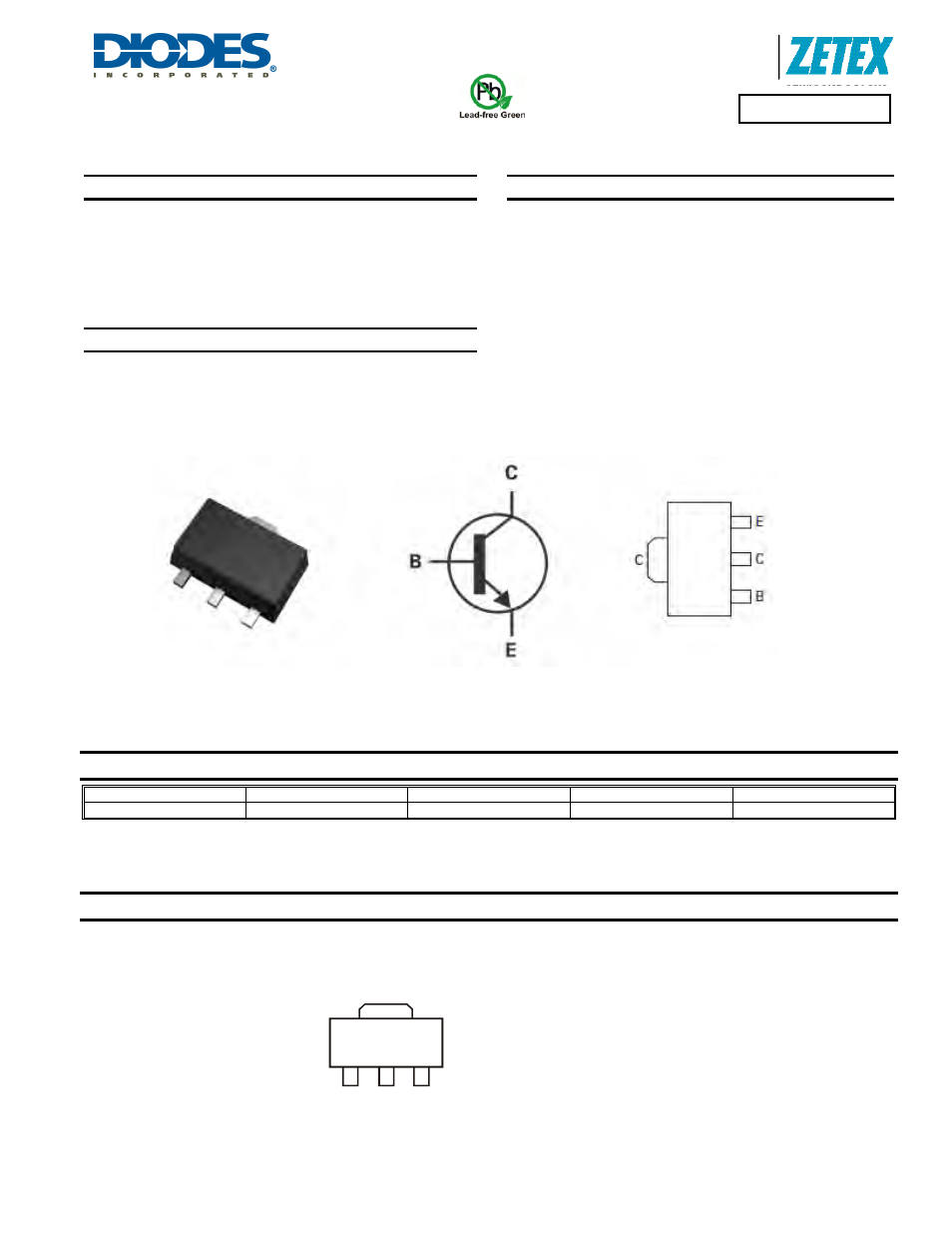

Marking Information













1S5 = Product type Marking Code

1S5

Top View

Device symbol

SOT89

Top View

Pin Out
