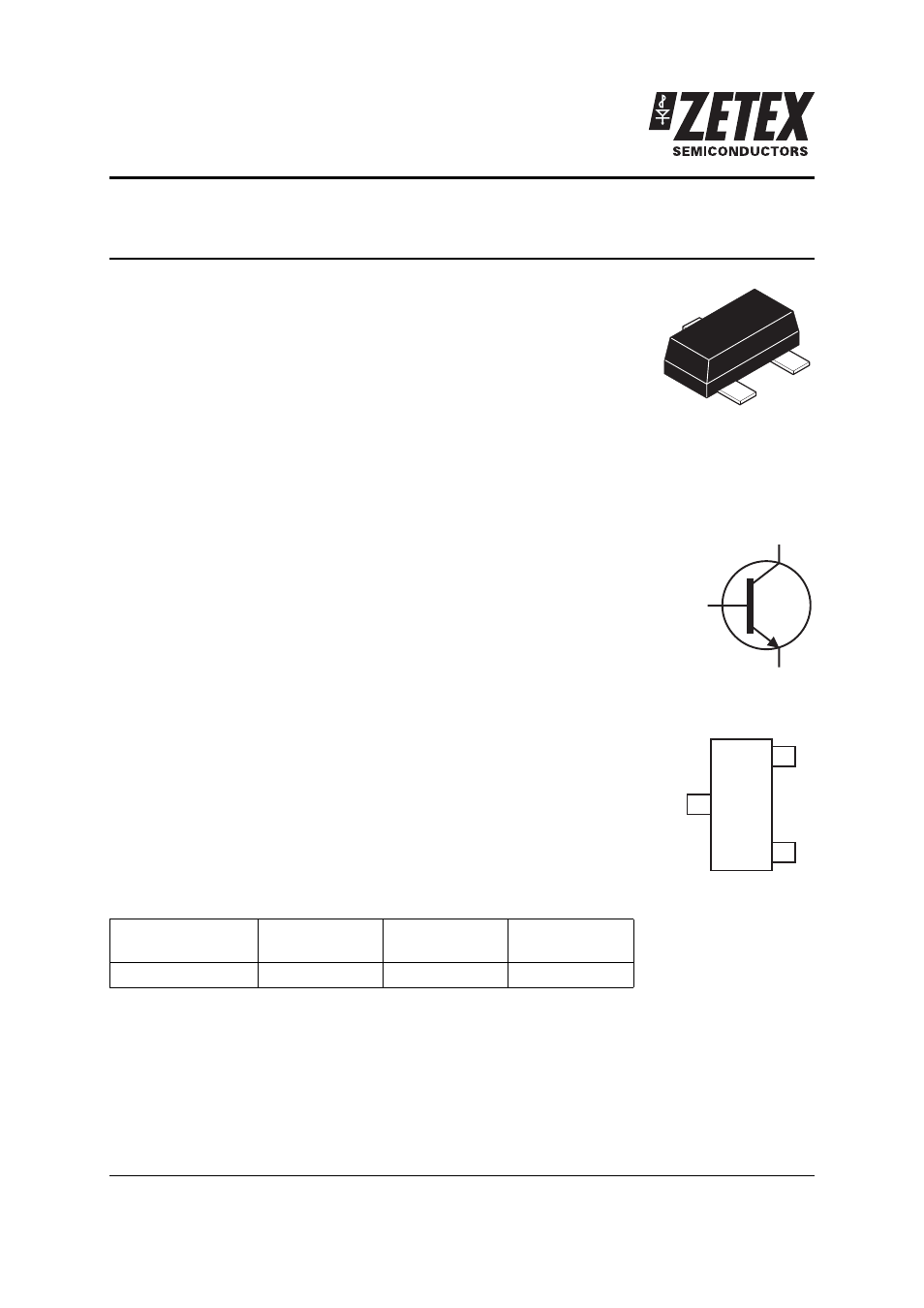

ZXTN08400BFF
400V, SOT23F, NPN medium power high voltage transistor
Summary
BV
CEX
> 450V
BV
CEO
> 400V
BV
ECO
> 6V
I
C(cont)
= 0.5A
V
CE(sat)
< 175mV @ 500mA
P
D
= 1.5W
Complementary part number ZXTP08400BFF
Description
This NPN transistor has been designed for applications requiring high
voltage blocking. The SOT23F package is pin compatible with the
industry standard SOT23 foot print but offers lower profile and higher
dissipation for applications where power density is of utmost
importance.
Features
•
High voltage
•
Low saturation voltage
•
Low profile small outline package
Applications
•
Modems
•
Telecoms line switching
Ordering information
Device marking
1D5
Device
Reel size
(inches)
Tape width
(mm)
Quantity
per reel
ZXTN08400BFFTA
7
8 3000
C
E
B
C
E
B
Pinout - top view
