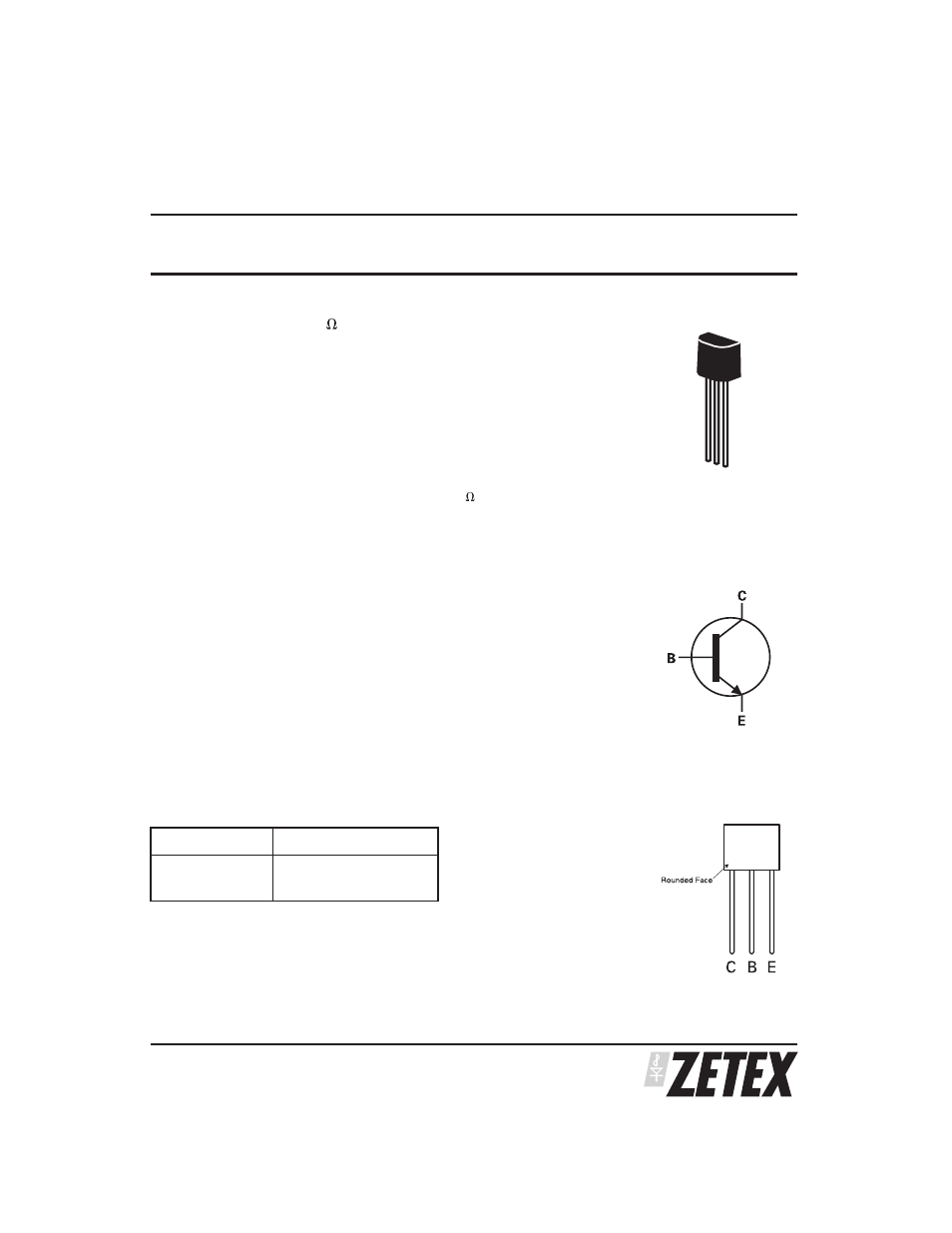

Diodes ZX5T851A - Manual

1 S E M I C O N D U C T O R S
SUMMARY
BV
CEO
= 60V : R
SAT
= 34m ; I
C
= 4.5A
DESCRIPTION
Packaged in the E-line outline this new 5th generation low saturation 60V NPN
transistor offers extremely low on state losses making it ideal for use in DC-DC
circuits and various driving and power management functions.
FEATURES
•
Extemely low equivalent on-resistance; R
SAT
= 34m at 5A
•
4.5 amps continuous current
•
Up to 15 amps peak current
•
Very low saturation voltages
APPLICATIONS
•
Emergency lighting circuits
•
Motor driving (including DC fans)
•
Solenoid, relay and actuator drivers
•
DC modules
•
Backlight inverters
DEVICE MARKING
•
X5T851
ZX5T851A
ISSUE 1 - NOVEMBER 2003
60V NPN LOW SATURATION MEDIUM POWER TRANSISTOR IN E-LINE
DEVICE QUANTITY
ZX5T851ASTOA
ZX5T851ASTZ
2000 units / reel
2000 units / carton
ORDERING INFORMATION
PINOUT
E-LINE
