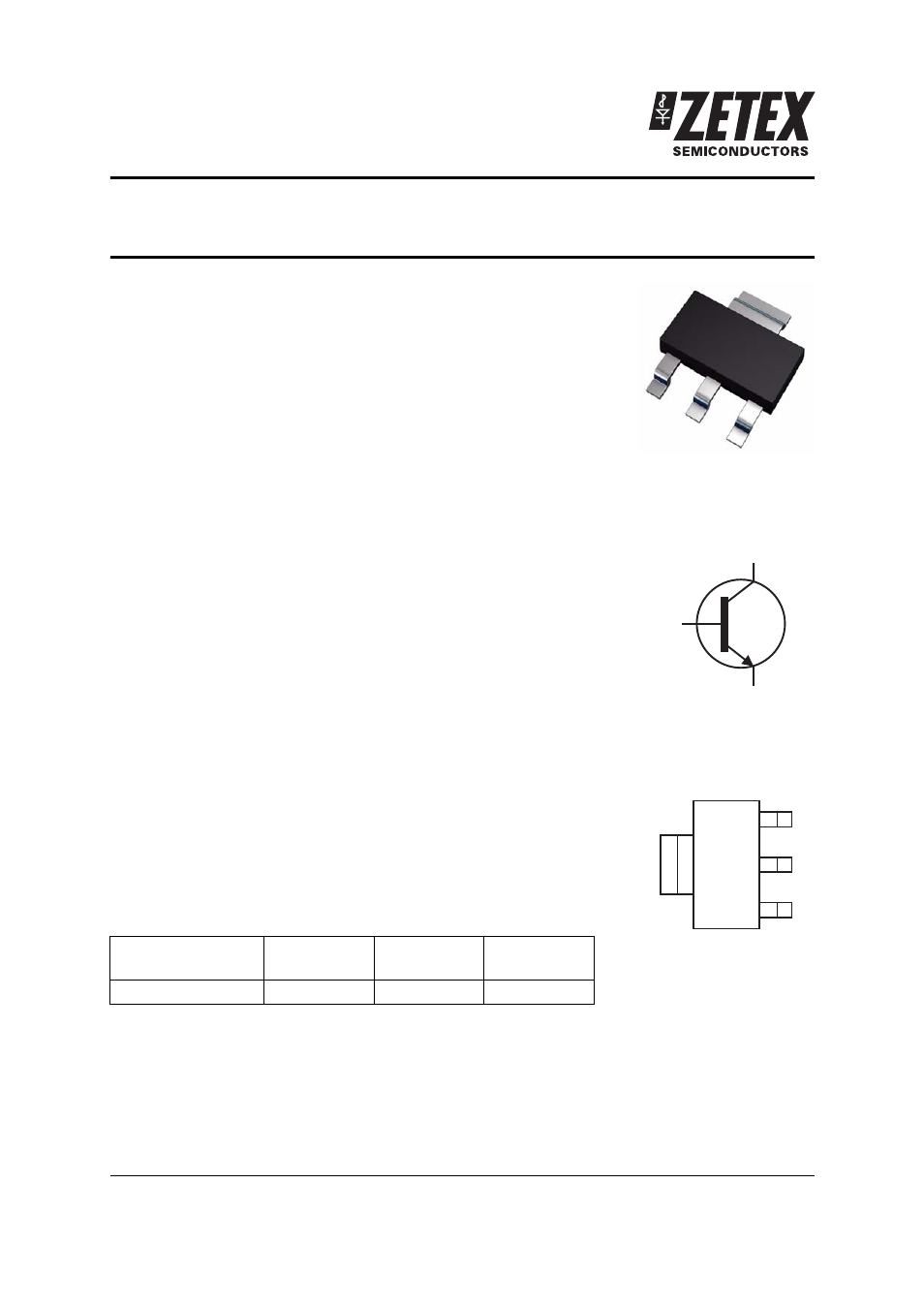

ZXTN19100CG
100V NPN low sat medium power transistor in SOT223
Summary
BV
CEX
> 200V
BV
CEO
> 100V
BV
ECO
> 5V
I
C(cont)
= 5.5A
V
CE(sat)
< 65mV @ 1A
R
CE(sat)
= 43m
Ω
P
D
= 3.0W
Complementary part number ZXTP19100CG
Description
Packaged in the SOT223 outline this new low saturation NPN transistor
offers extremely low on state losses making it ideal for use in DC-DC
circuits and various driving and power management functions.
Features
•
Higher power dissipation SOT223 package
•
High peak current
•
Low saturation voltage
•
Highforward blocking voltage
Applications
•
PSU start up switch
•
Motor drive
•
Lamp, relay and solenoid drive
Ordering information
Device marking
ZXTN19
100C
Device
Reel size
(inches)
Tape width
(mm)
Quantity
per reel
ZXTN19100CGTA
7
12
1000
C
E
B
C
E
C
B
Pinout - top view
