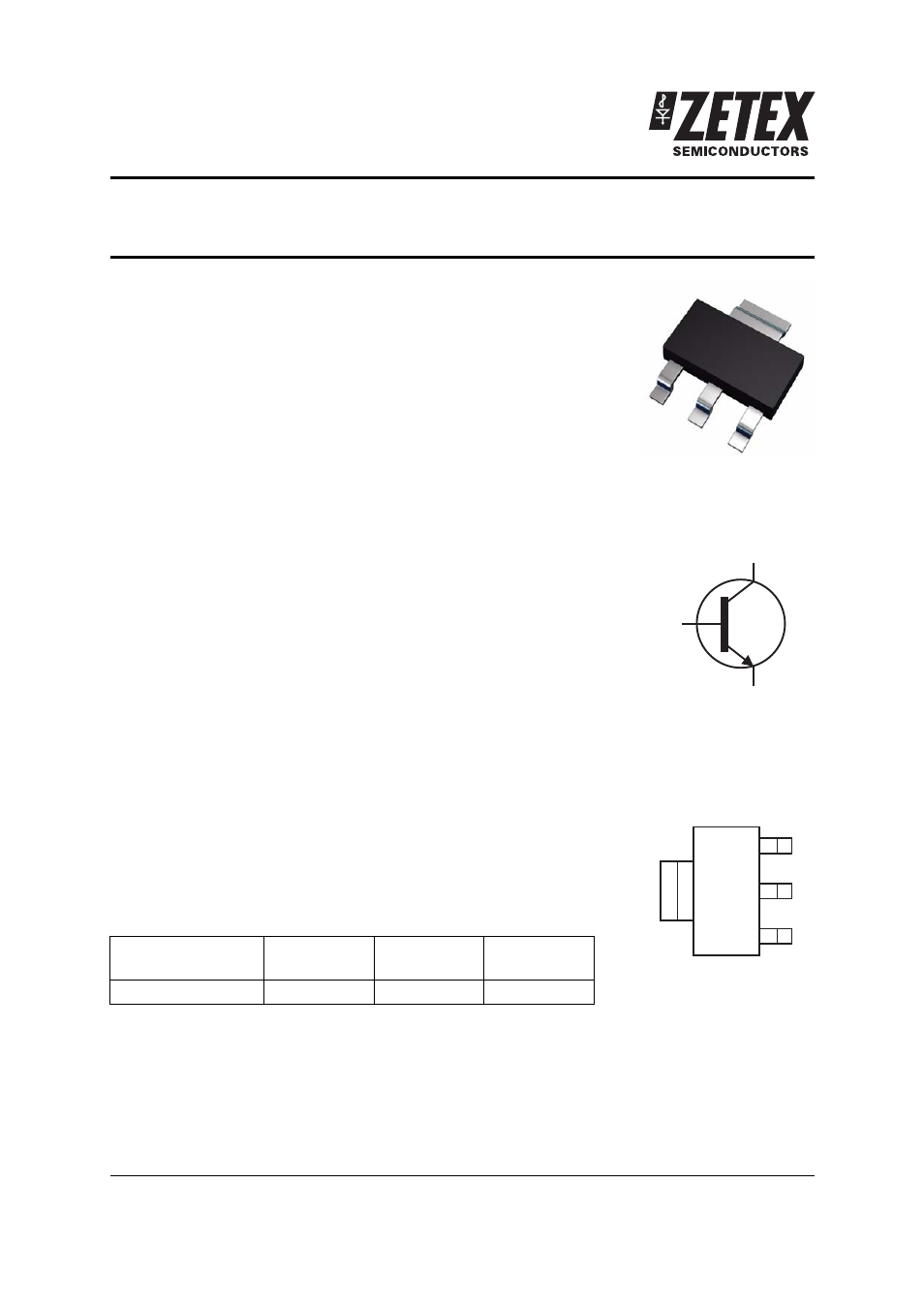

ZXTN19060CG
60V NPN low sat medium power transistor in SOT223
Summary
BV
CEO
> 60V
BV
CEX
> 160V
BV
ECO
> 6V
I
C(cont)
= 7A
V
CE(sat)
< 50mV @ 1A
R
CE(sat)
= 30m
Ω
P
D
= 3.0W
Complementary part number ZXTP19060CG
Description
Packaged in the SOT223 outline this new low saturation NPN transistor
offers extremely low on state losses making it ideal for use in DC-DC
circuits and various driving and power management functions.
Features
•
Higher power dissipation SOT223 package
•
High peak current
•
Low saturation voltage
•
160V forward blocking voltage
•
6V reverse blocking voltage
Applications
•
Motor drive
•
Lamp, relay and solenoid drive
Ordering information
Device marking
ZXTN19
060C
Device
Reel size
(inches)
Tape width
(mm)
Quantity
per reel
ZXTN19060CGTA
7
12
1000
C
E
B
C
E
C
B
Pinout - top view
