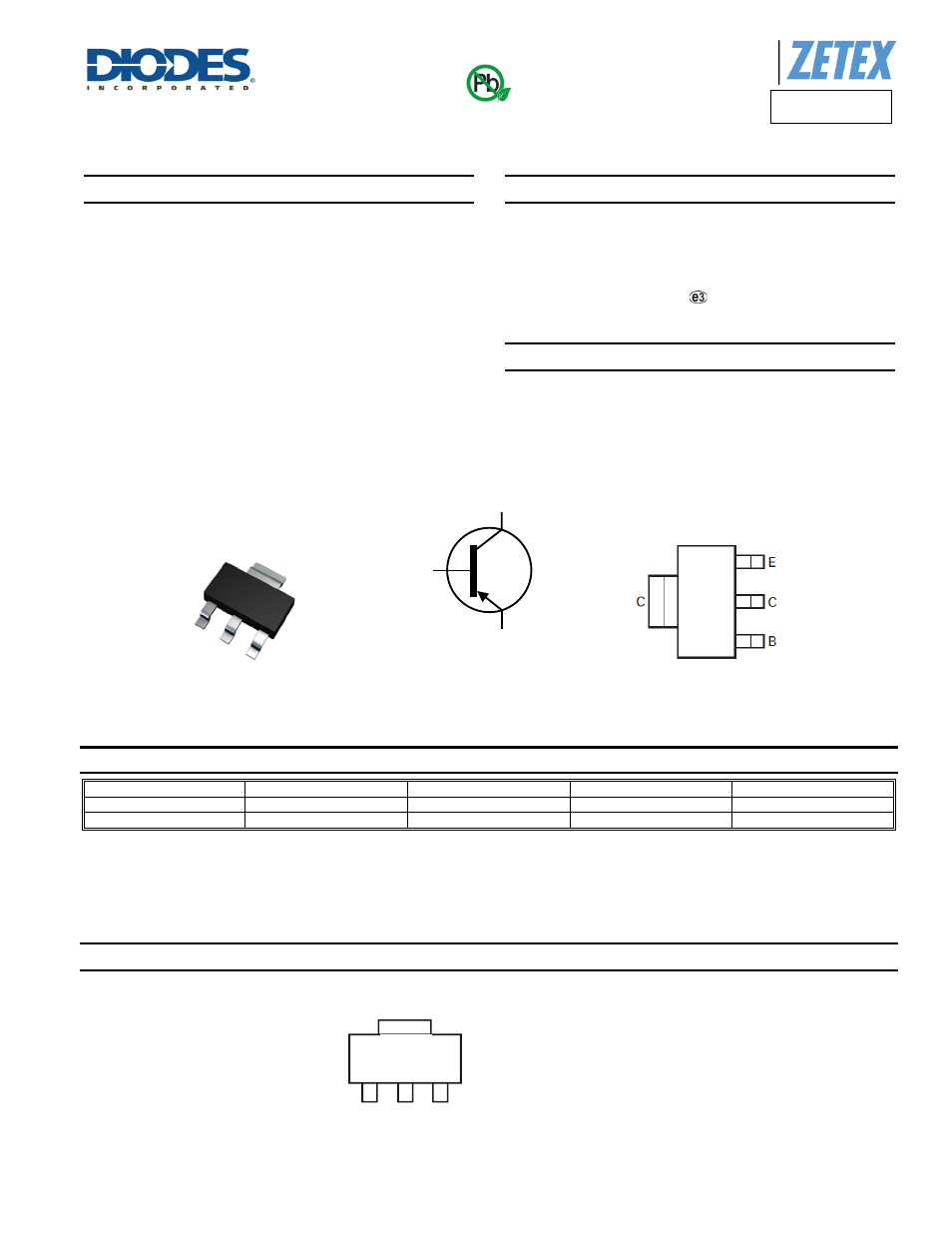

ZX5T951G
Datasheet Number: DS33424 Rev. 3 - 2
1 of 7
January 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZX5T951G
60V PNP MEDIUM POWER LOW SATURATION TRANSISTOR IN SOT223
Features
• BV
CEO
> -60V
•
I
C
= -5.5A High Continuous Collector Current
•
I
CM
= -15A Peak Pulse Current
•
Low Saturation Voltage V
CE(sat)
< -70mV @ -1A
•
R
SAT
= 39mΩ for a Low Equivalent On-Resistance
•
h
FE
Specified Up to -10A for a High Gain Hold Up
•
Complementary NPN Type: ZX5T851G
•
Lead-Free Finish; RoHS compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT223
•
Case Material: Molded Plastic. “Green” Molding Compound.
•
UL Flammability Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
•
Weight: 0.112 grams (approximate)
Applications
•
DC-DC converters
•
MOSFET & IGBT gate drivers
• Charging
circuits
• Power
switches
• Motor
control
Ordering Information
(Note 4)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZX5T951GTA X5T951
7
12
1,000
ZX5T951GTC X5T951
13
12
4,000
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
X5T951 = Product type Marking Code
SOT223
Top View
Device Symbol
Top View
Pin-Out
C
E
B
Green
X5T
953
X5T
951
