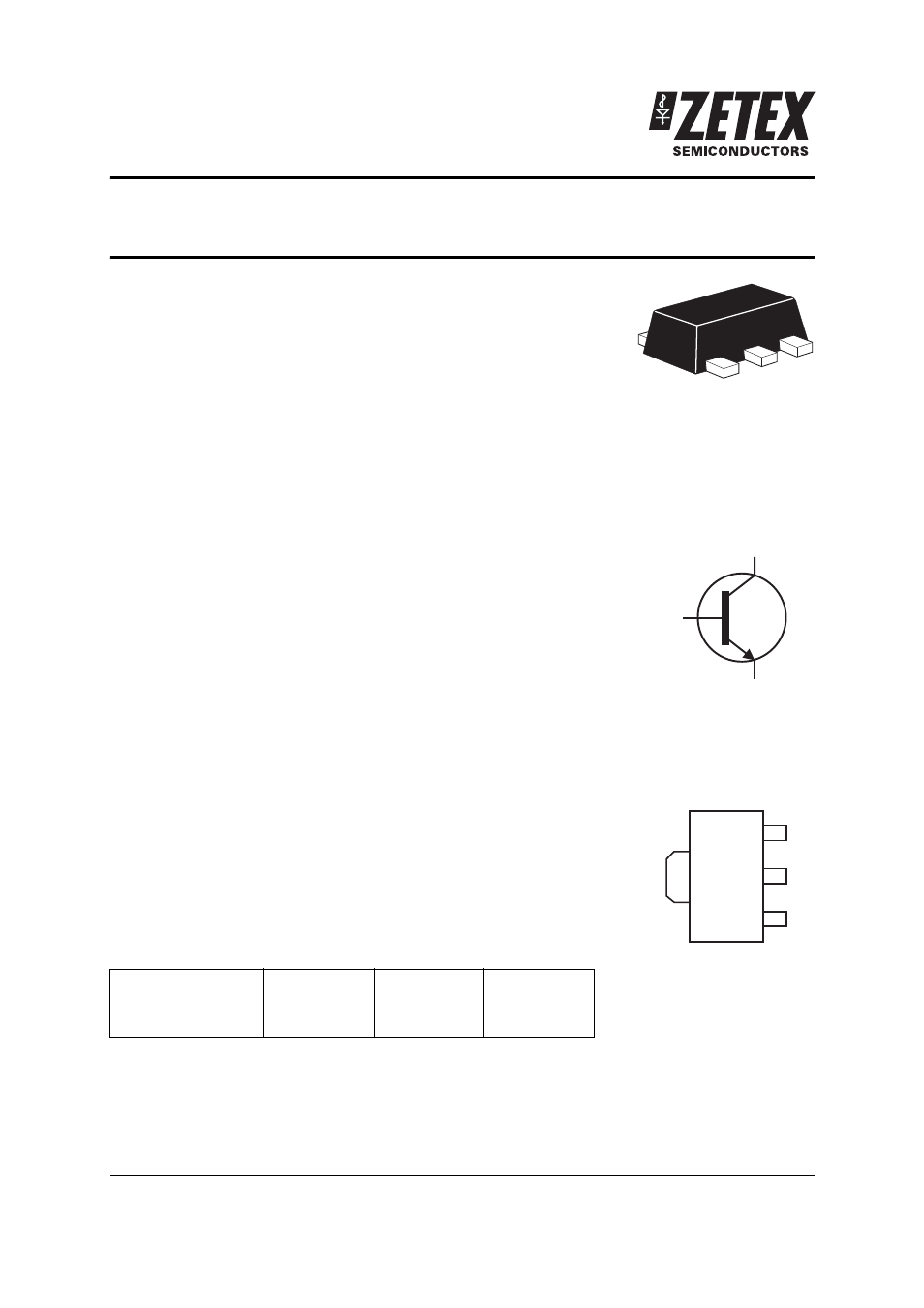

ZXTN25100DZ
100V NPN high gain transistor in SOT89
Summary
BV
CEX
> 180V
BV
CEO
> 100V
BV
ECO
> 6V
I
C(cont)
= 2.5A
V
CE(sat)
< 100mV @ 1A
R
CE(sat)
= 80m
⍀
P
D
= 2.4W
Complementary part number ZXTP25100CZ
Description
Packaged in the SOT89 outline this new low saturation NPN transistor
offers extremely low on state losses making it ideal for use in DC-DC
circuits and various driving and power management functions.
Features
•
High power dissipation SOT89 package
•
High gain
•
Low saturation voltage
•
180V forward blocking voltage
•
6V reverse blocking voltage
Applications
•
PSU start up switch
•
DC - DC converters
•
Motor drive
•
Relay, lamp and solenoid drive
Ordering information
Device marking
1K9
Device
Reel size
(inches)
Tape width
(mm)
Quantity
per reel
ZXTN25100DZTA
7
12
1000
C
E
B
C
E
Pinout - top view
C
B
