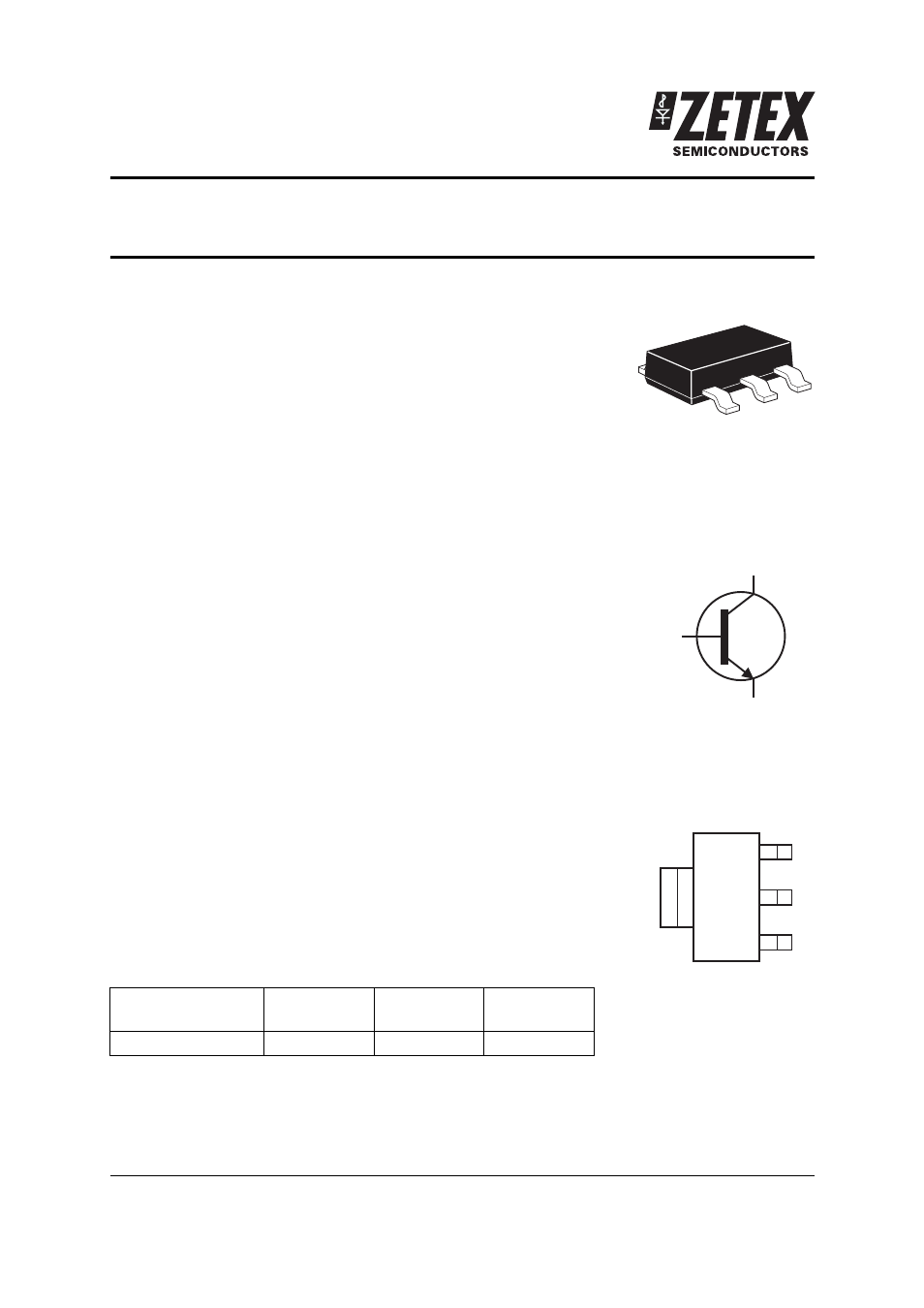

ZXTN25100DG
100V NPN high gain transistor in SOT223
Summary
BV
CEX
> 180V
BV
CEO
> 100V
BV
ECO
> 6V
I
C(cont)
= 3A
V
CE(sat)
< 100mV @ 1A
R
CE(sat)
= 85m
⍀
P
D
= 3.0W
Complementary part number ZXTP19100CG
Description
Packaged in the SOT223 outline this new low saturation NPN transistor
offers extremely low on state losses making it ideal for use in DC-DC
circuits and various driving and power management functions.
Features
•
High power dissipation SOT223 package
•
High gain
•
Low saturation voltage
•
180V forward blocking voltage
•
6V reverse blocking voltage
Applications
•
PSU start up circuit
•
DC - DC converters
•
Motor drive
•
Relay, lamp and solenoid drive
Ordering information
Device marking
•
ZXTN25
100D
Device
Reel size
(inches)
Tape width
(mm)
Quantity
per reel
ZXTN25100DGTA
7
12
1000
C
E
B
C
E
C
B
Pinout - top view
