1 S E M I C O N D U C T O R S
SUMMARY
BV
CEO
= 100V : R
SAT
= 36m ; I
C
= 6A
DESCRIPTION
Packaged in the SOT223 outline this new low saturation 100V NPN transistor
offers extremely low on state losses making it ideal for use in DC-DC circuits
and various driving and power management functions.
FEATURES
•
6 amps continuous current
•
Up to 10 amps peak current
•
Very low saturation voltages
APPLICATIONS
•
Motor driving
•
Line switching
•
High side switches
•
Subscriber line interface cards (SLIC)
DEVICE MARKING
ZXTN
2011
ZXTN2011G
ISSUE 2 - MAY 2006
100V NPN LOW SATURATION MEDIUM POWER LOW SATURATION
TRANSISTOR IN SOT223
DEVICE REEL
SIZE
TAPE
WIDTH
QUANTITY PER
REEL
ZXTN2011GTA 7” 12mm
embossed
1,000 units
ZXTN2011GTC 13” 4,000 units

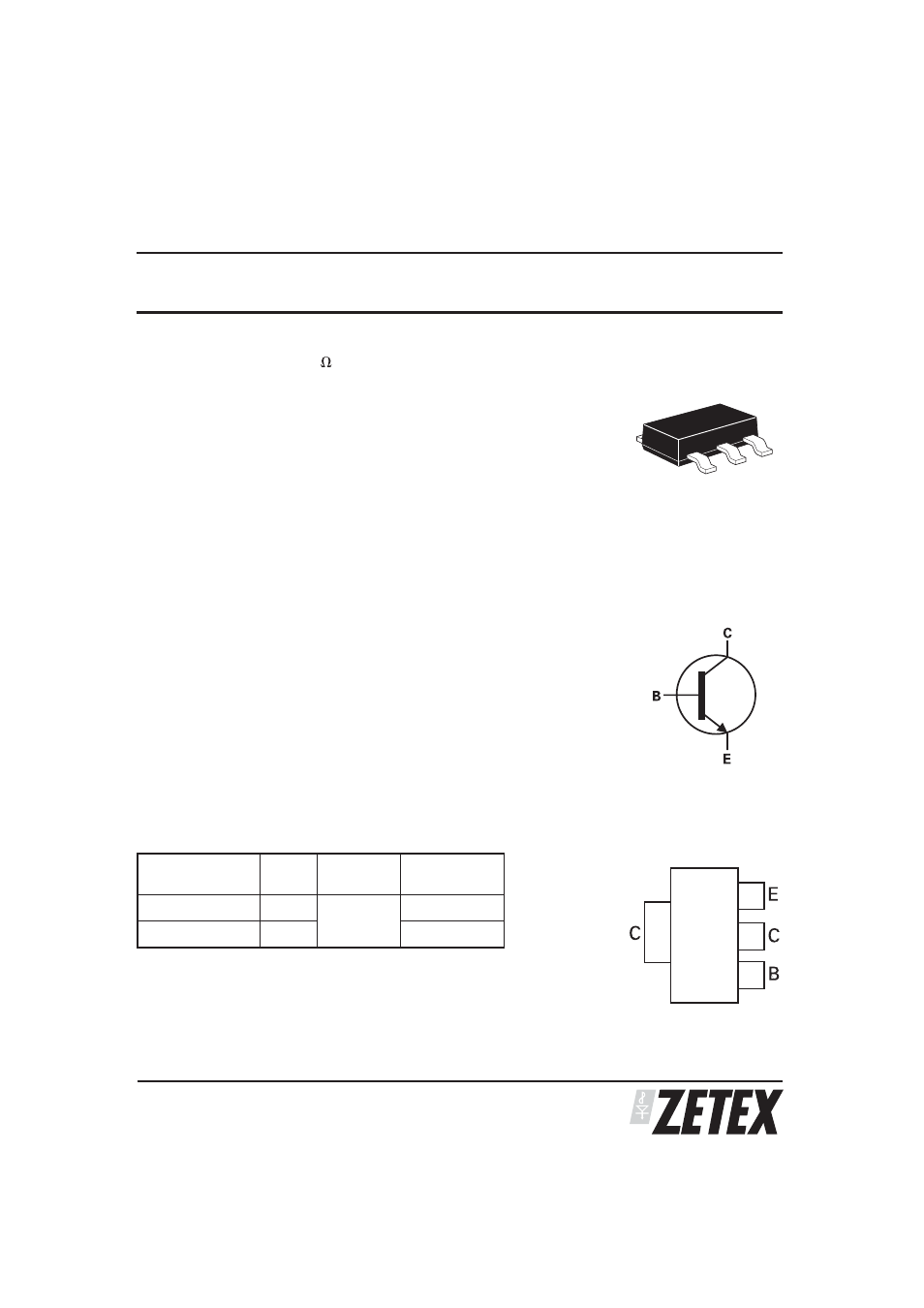

ORDERING INFORMATION PINOUT
TOP VIEW
SOT223
