ZXTN19100CZ
100V NPN medium power transistor in SOT89
Summary
BV
CEX
> 200V
BV
CEO
> 100V
BV
ECO
> 5V
I
C(cont)
= 5.25A
V
CE(sat)
< 65mV @ 1A
R
CE(sat)
= 44m
⍀
P
D
= 2.4W
Complementary part number ZXTP19100CZ
Description
Packaged in the SOT89 outline this new low saturation NPN transistor
offers extremely low on state losses making it ideal for use in DC-DC
circuits and various driving and power management functions.
Features
•
Higher power dissipation SOT89 package
•
High peak current
•
Low saturation voltage
•
High forward blocking voltage
Applications
•
PSU start up switch
•
Motor drive
•
Lamp, relay and solenoid switches
Ordering information
Device marking
1L9
Device
Reel size
(inches)
Tape width
(mm)
Quantity
per reel
ZXTN19100CZTA
7
12
1000
C
E
B
C
E

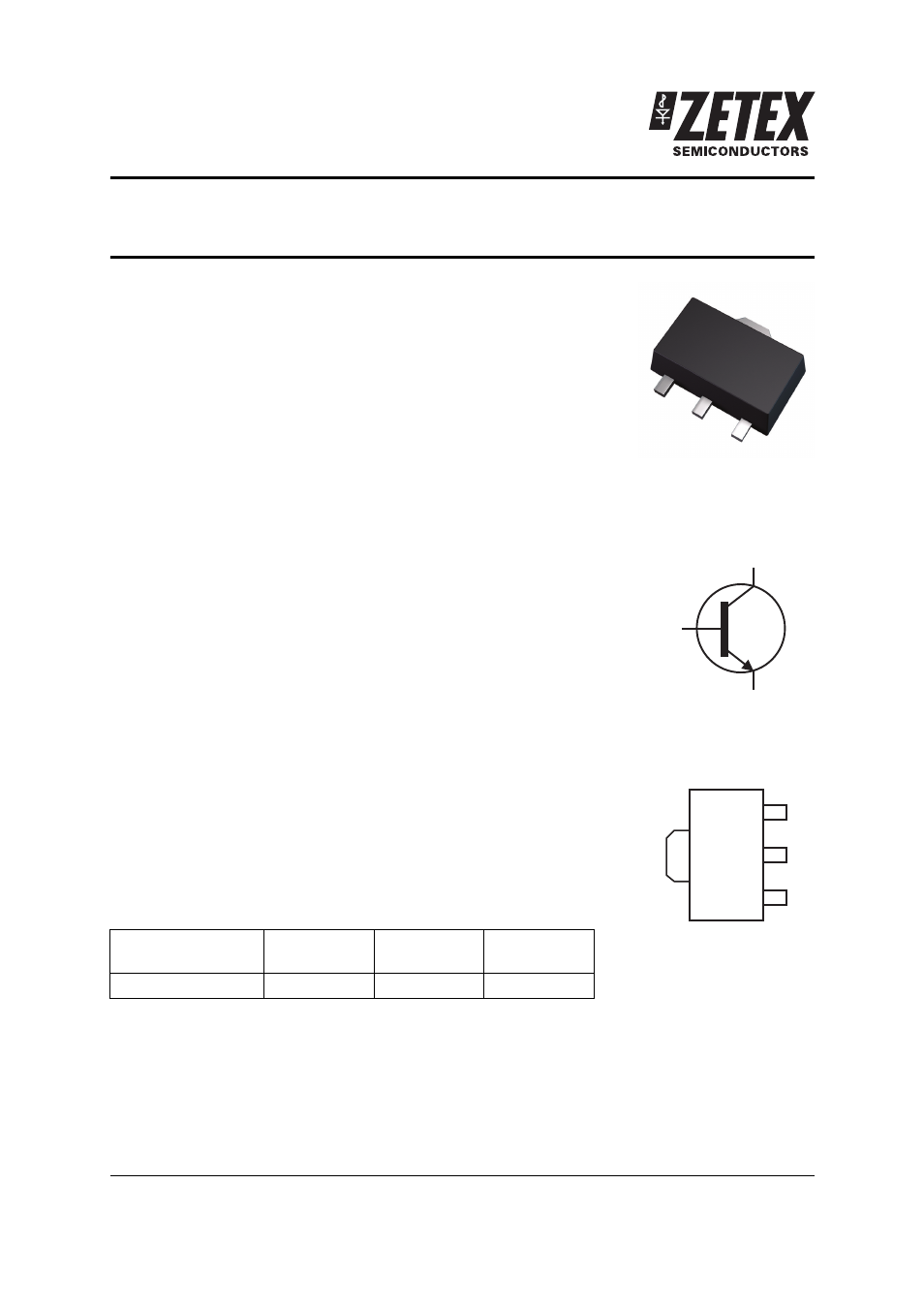

Pinout - top view
C
B
