ZXTP720MA
Document Number DS31883 Rev. 5 - 2
1 of 7
January 2011
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTP720MA
40V PNP LOW SATURATION SWITCHING TRANSISTOR
Features and Benefits
• BV
CEO
> -40V
•
I
C
= -3A Continuous Collector Current
•
Low Saturation Voltage (-220mV max @ -1A)
•
R
SAT
= 104 m
Ω for a low equivalent On-Resistance
•
h
FE
specified up to -3A for high current gain hold up
•
Low profile 0.6mm high package for thin applications
•
R
θJA
efficient, 60% lower than SOT23
• 4mm
2
footprint, 50% smaller than SOT23
•
Lead-Free, RoHS Compliant (Note 1)
•
Halogen and Antimony Free. "Green" Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
DFN2020B-3
•
Case material: Molded Plastic. “Green” Molding Compound.
•
Terminals: Pre-Plated NiPdAu leadframe.
•
Nominal package height: 0.6mm
•
UL Flammability Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Weight: 0.01 grams (approximate)
Applications
•
MOSFET Gate Driving
• DC-DC
Converters
• Charging
Circuits
• Power
switches
• Motor
control
Ordering Information
(Note 3)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXTP720MATA S3
7
8
3000
Notes:
1. No purposefully added lead.
2. Diodes Inc's "Green" policy can be found on our w3. For Packaging Details, go to our website at

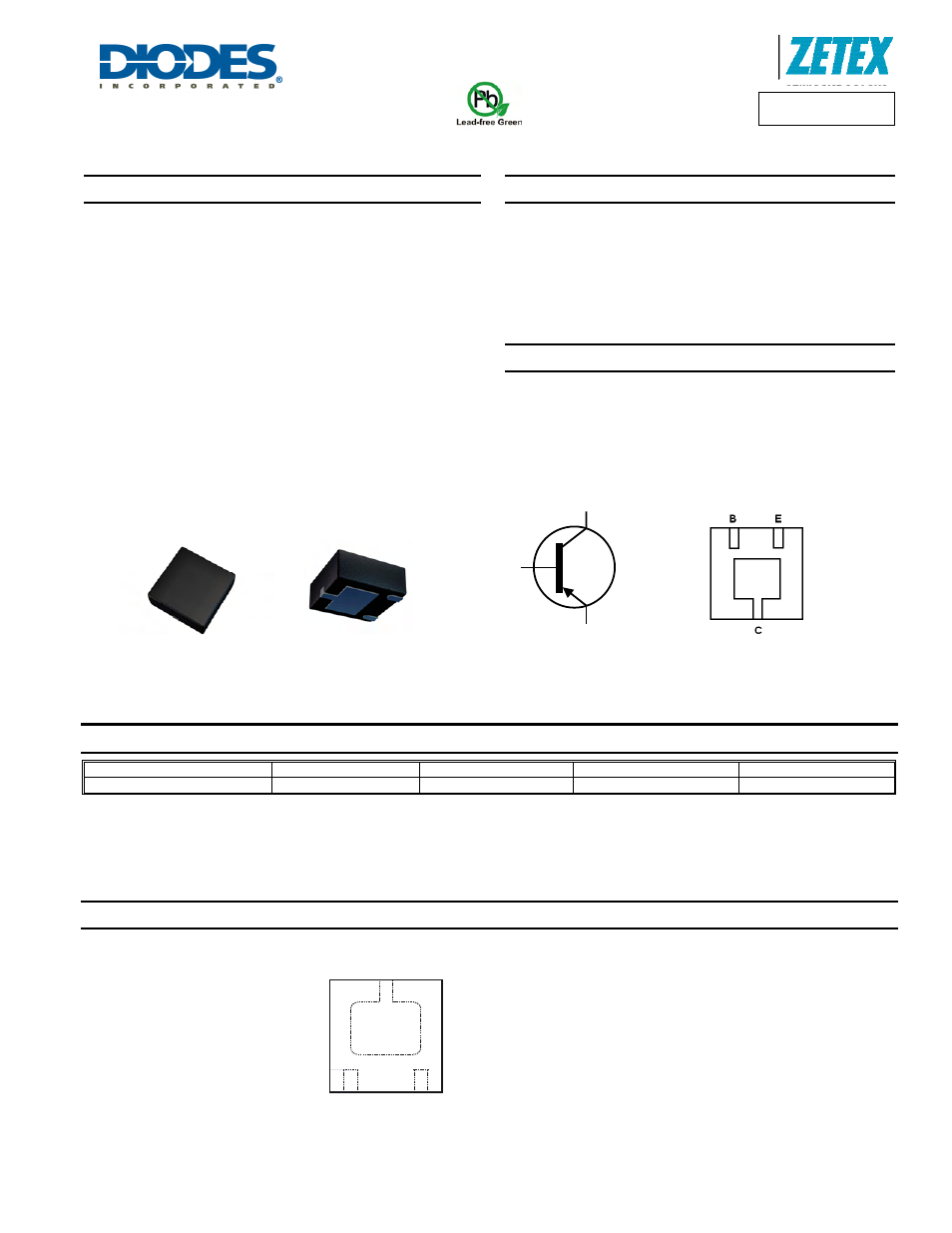

Marking Information
Top View
DFN2020B-3
Device Symbol
Bottom View
Pin-Out
Bottom View
C
E
B
S3 = Product Type Marking code
Top View
S3
