1 S E M I C O N D U C T O R S
SUMMARY
BV
CEO
= 30V : R
SAT
= 28m ; I
C
= 7A
DESCRIPTION
Packaged in the SOT223 outline this new low saturation 30V NPN transistor
offers extremely low on state losses making it ideal for use in DC-DC circuits
and various driving and power management functions.
FEATURES
•
Extemely low equivalent on-resistance; R
SAT
= 28m at 6.5A
•
7 amps continuous current
•
Up to 20 amps peak current
•
Very low saturation voltages
•
Excellent h
FE
characteristics up to 20 amps
APPLICATIONS
•
DC - DC converters
•
MOSFET gate drivers
•
Charging circuits
•
Power switches
•
Motor control
DEVICE MARKING
ZXTN
2007
ZXTN2007G
ISSUE 2 - MAY 2006
30V NPN MEDIUM POWER LOW SATURATION TRANSISTOR IN SOT223
DEVICE REEL
SIZE
TAPE
WIDTH
QUANTITY PER
REEL
ZXTN2007GTA 7”
12mm
embossed
1,000 units
ZXTN2007GTC 13" 4,000 units
ORDERING INFORMATION

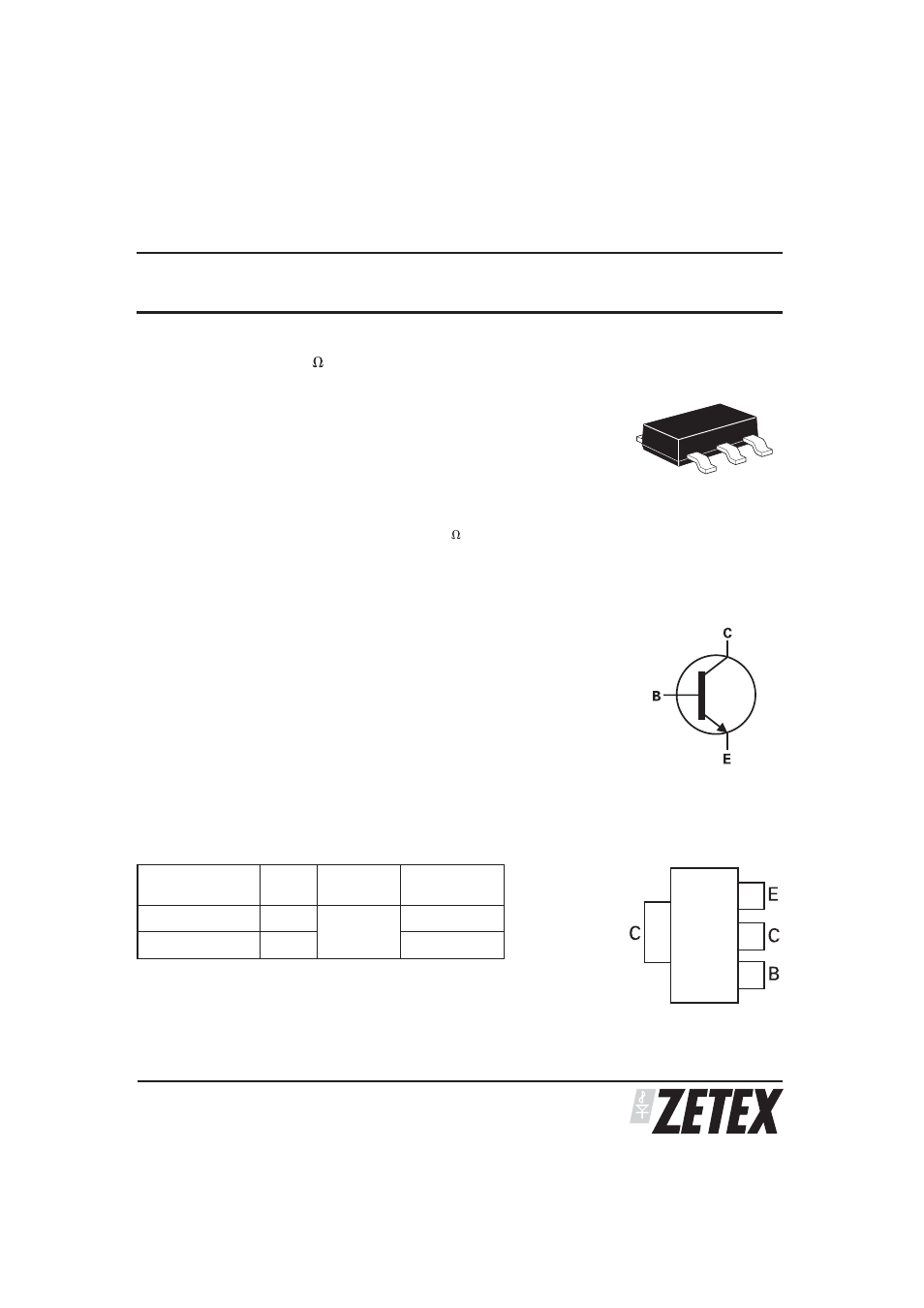

PINOUT
TOP VIEW
SOT223
