ZXTD720MC
DUAL 40V PNP LOW SATURATION SWITCHING TRANSISTOR
Features and Benefits
• BV
CEO
> -40V
• I
C
= -3A Continuous Collector Current
•
Low Saturation Voltage (-220mV @ -1A)
•
R SAT = 104 m Ω for Low Equivalent On Resistance
•
hFE specified up to -3A for high gain holds up
• Dual NPN saving footprint and component count
• Low profile 0.8mm high package for thin applications
• R θJA efficient, 40% lower than SOT26
• 6mm 2 footprint, 50% smaller than TSOP6 and SOT26
•
Lead-Free, RoHS Compliant (Note 1)
• Halogen and Antimony Free. “Green” Device (Note 2)
• Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case: DFN3020B-8
• Case material: Molded Plastic. “Green” Molding Compound. UL
Flammability Rating 94V-0
• Terminals: Pre-Plated NiPdAu leadframe.
•
Nominal package height: 0.8mm
•
Moisture Sensitivity: Level 1 per J-STD-020
• Solderable per MIL-STD-202, Method 208
• Weight: 0.013 grams (approximate)
Applications
• DC-DC
Converters
• Charging
circuits
• Power switches
• Motor control
• CCFL
Backlighting
• Portable
applications
Ordering Information
(Note 3)
Product Marking Reel size (inches) Tape width (mm) Quantity per reel
ZXTD720MCTA D33 7 8 3,000
Notes: 1. No purposefully added lead.
2. Diodes Inc’s “Green” Policy can be found on our website at http://www.diodes.com
3. For Packaging Details, go to our website at http://www.diodes.com.
Marking Information
D33 = Product type Marking Code
Top View, Dot Denotes Pin 1

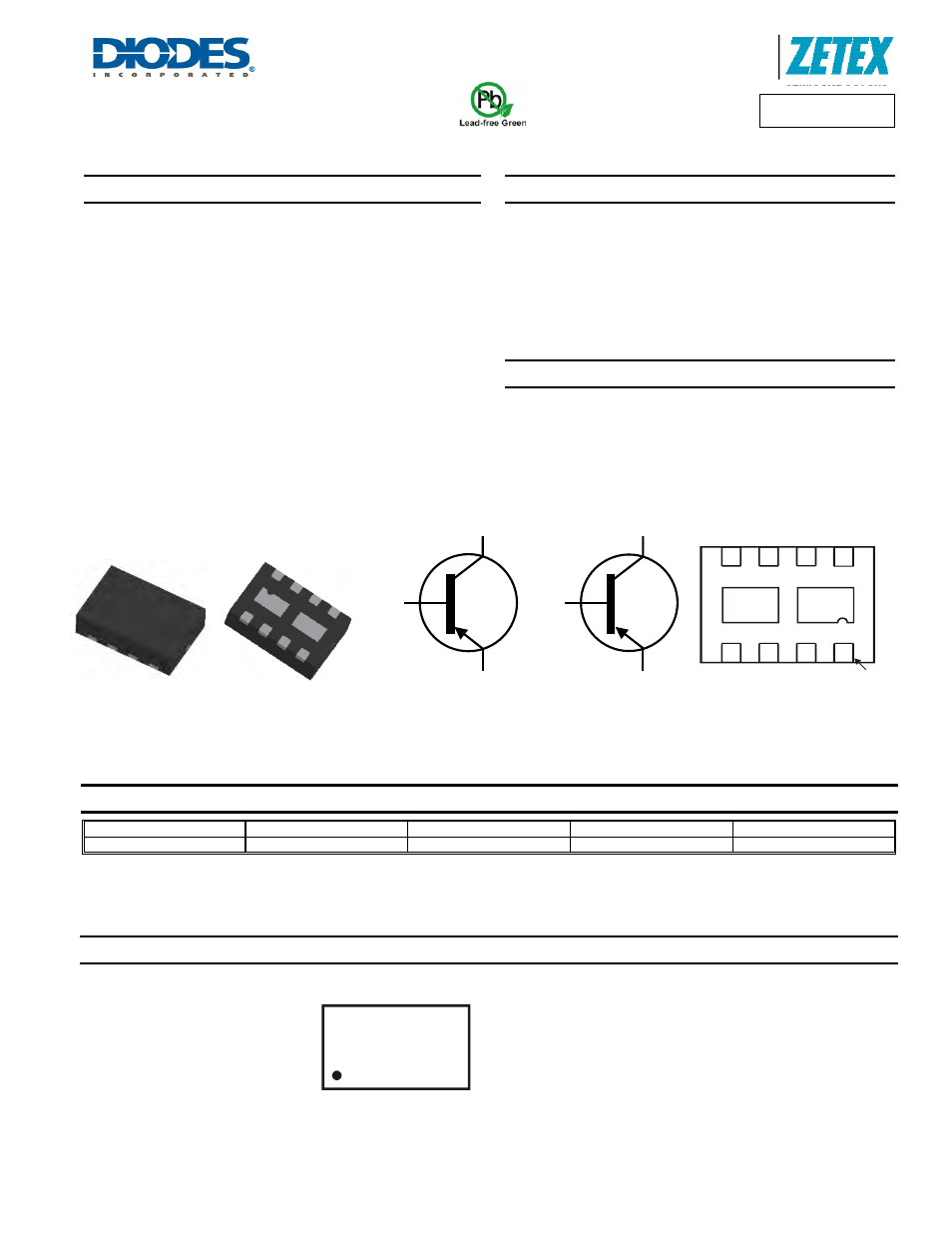

Equivalent Circuit
Top View Bottom View
DFN3020B-8
PNP Transistor PNP Transistor
D33
C2 C2 C1 C1
E2 B2 E1 B1
C1 C2
Pin 1
Bottom View
Pin Out
C1
E1
B1
C2
E2
B2
