ZXTD619MC
Document Number DS31932 Rev. 3 - 2
1 of 7
January 2011
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTD619MC
DUAL 50V NPN LOW SATURATION SWITCHING TRANSISTOR
Features and Benefits
• BV
CEO
> 50V
•
I
C
= 4A Continuous Collector Current
•
Low Saturation Voltage (100mV max @ 1A)
•
R
SAT
= 68m
Ω for Low Equivalent On Resistance
•
h
FE
specified up to 6A for high current gain holds up
•
Dual NPN saving footprint and component count
•
Low profile 0.8mm high package for thin applications
•
R
θJA
efficient, 40% lower than SOT26
• 6mm
2
footprint, 50% smaller than TSOP6 and SOT26
•
Lead-Free, RoHS Compliant (Note 1)
•
Halogen and Antimony Free. “Green” Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
DFN3020B-8
•
Case Material: Molded Plastic. “Green” Molding Compound.
•
Terminals: Pre-Plated NiPdAu leadframe.
•
UL Flammability Rating 94V-0
•
Nominal package height: 0.8mm
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Weight: 0.013 grams (approximate)
Applications
•
DC – DC Converters
•
MOSFET gate drivers
• Charging
circuits
• Motor
Control
• Power
switches
• Portable
applications
Ordering Information
(Note 3)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXTD619MCTA DCC
7
8
3,000
Notes:
1. No purposefully added lead.
2. Diodes Inc’s “Green” Policy can be found on our websit
3. For Packaging Details, go to our website at
Marking Information
DCC = Product type Marking Code
Top view, dot denotes Pin 1

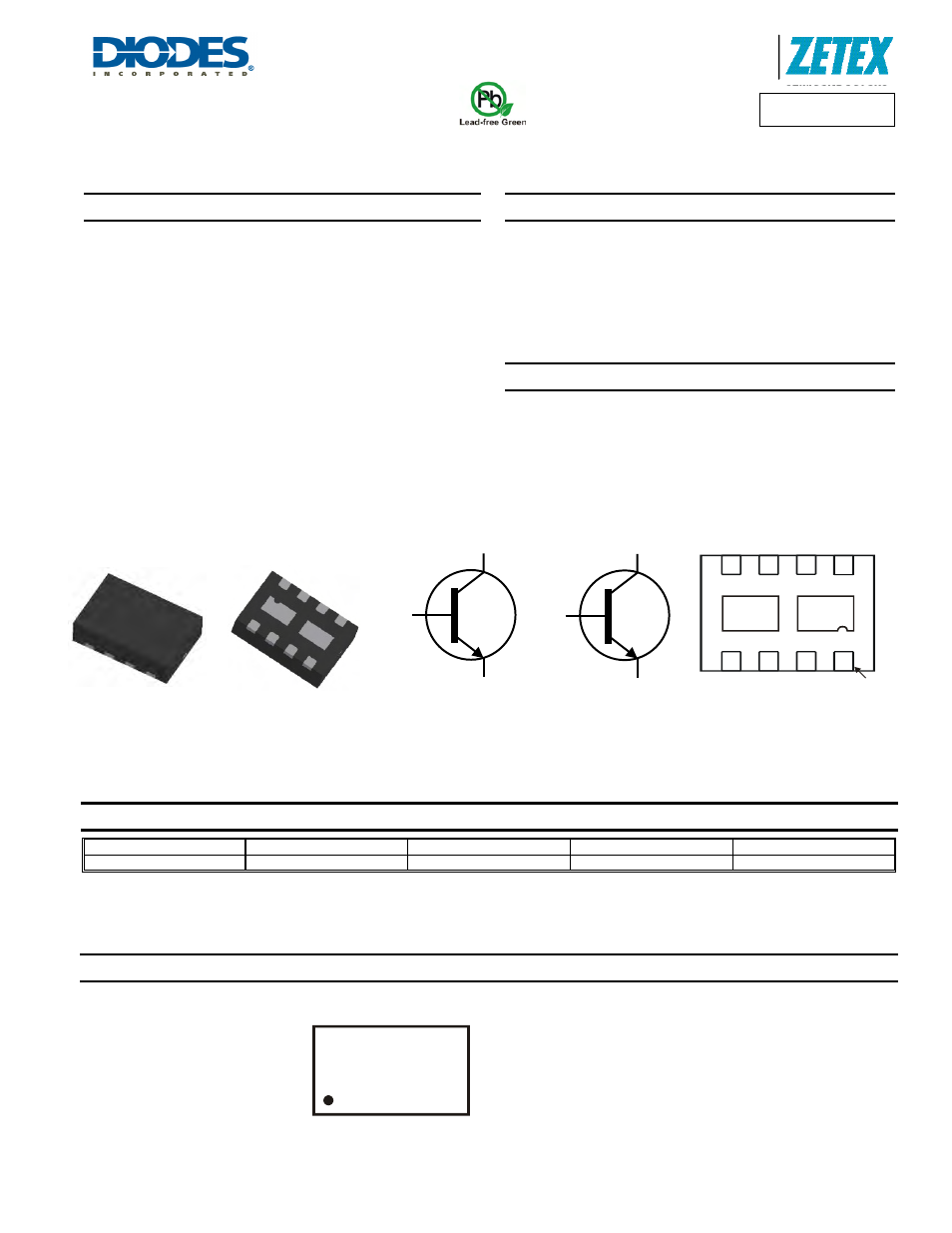

Equivalent Circuit
Top View
Bottom View
DFN3020B-8
NPN Transistor
NPN Transistor
C2
E2
B2
C1
E1
B1
C2
C2
C1
C1
E2
B2
E1
B1
C1
C2
Pin 1
Bottom View
Pin Out
DCC
