CONTROL ELEMENTS
The Control Elements are
1.
Remote Control Sensor
2.
Channel Up button
3.
Channel Down button
4. LED
display
5.
USB 2.0 High Speed port
6.
Power button for Stand-By mode
Note:
The unit is automatically ready to work as soon as the power supply is applied.
Description of the elements:
1.
Aerial input jack (75Ω). It supports active antenna with 5 V DC output.
2.
SCART jack (TV)
3.
Digital audio coaxial output jack
4.
AC power cord
5.
Antenna Loop Out jack
6.
SCART VCR jack (output and input)
Note:
Please unplug the power cord and keep it orderly when the unit shall not be used for a long time in
case that the power cord may get scratched and thus lead to electric leak and shock.

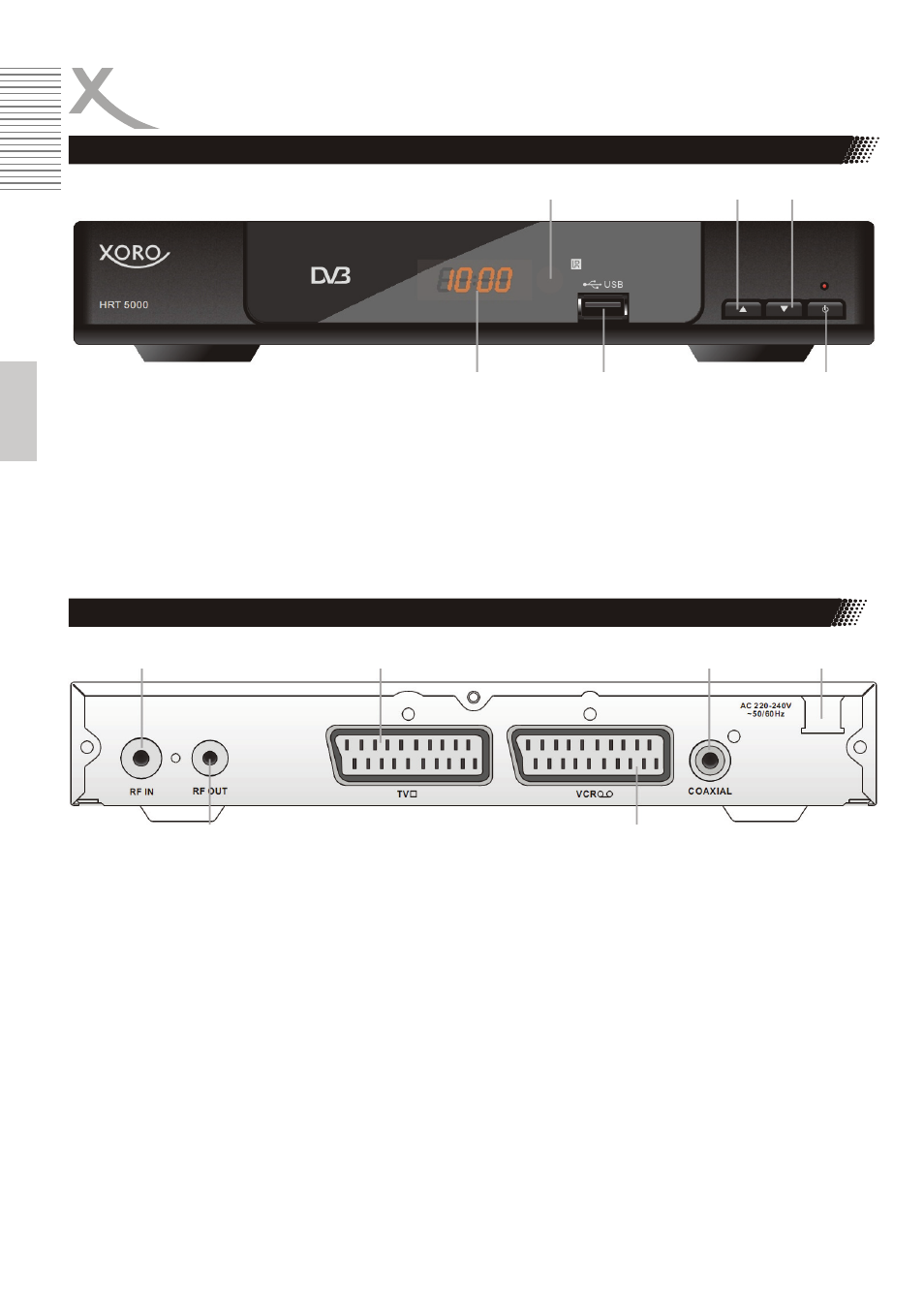

Front Panel
Rear Panel
1. 2.
3.
4. 5.
6.
1. 2.
3.
4.
5. 6.
