ZXTD718MC
DUAL 20V PNP LOW SATURATION SWITCHING TRANSISTOR
Features and Benefits
• BV
CEO > -20V;
•
I
C
= -3.5A Continuous Collector Current
•
R
SAT
= 64 m Ω for Low Equivalent On Resistance
• Low Saturation Voltage (-220mV @ -1A)
•
hFE characterized up to -6A for high current gain holds up
•
Dual NPN saving footprint and component count
•
Low profile 0.8mm high package for thin applications
•
R θJA efficient, 40% lower than SOT26
• 6mm 2 footprint, 50% smaller than TSOP6 and SOT26
• Lead-Free, RoHS Compliant (Note 1)
•
Halogen and Antimony Free. “Green” Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
DFN3020B-8
•
Case material: Molded Plastic. “Green” Molding Compound.
• UL Flammability Rating 94V-0
• Terminals: Pre-Plated NiPdAu leadframe.
•
Nominal package height: 0.8mm
•
Moisture Sensitivity: Level 1 per J-STD-020
• Solderable per MIL-STD-202, Method 208
• Weight: 0.013 grams (approximate)
Applications
• Battery
charging circuits
•
Load disconnect switches
• DC-DC converters
• Motor drive
•
LED backlighting circuits
• Portable applications
Ordering Information
(Note 3)
Product Marking Reel size (inches) Tape width (mm) Quantity per reel
ZXTD718MCTA D22 7 8 3,000
Notes: 1. No purposefully added lead.
2. Diodes Inc’s “Green” Policy can be found on our website at http://www.diodes.com
3. For Packaging Details, go to our website at http://www.diodes.com.
Marking Information
D22 = Product type Marking Code
Top view, dot denotes Pin 1

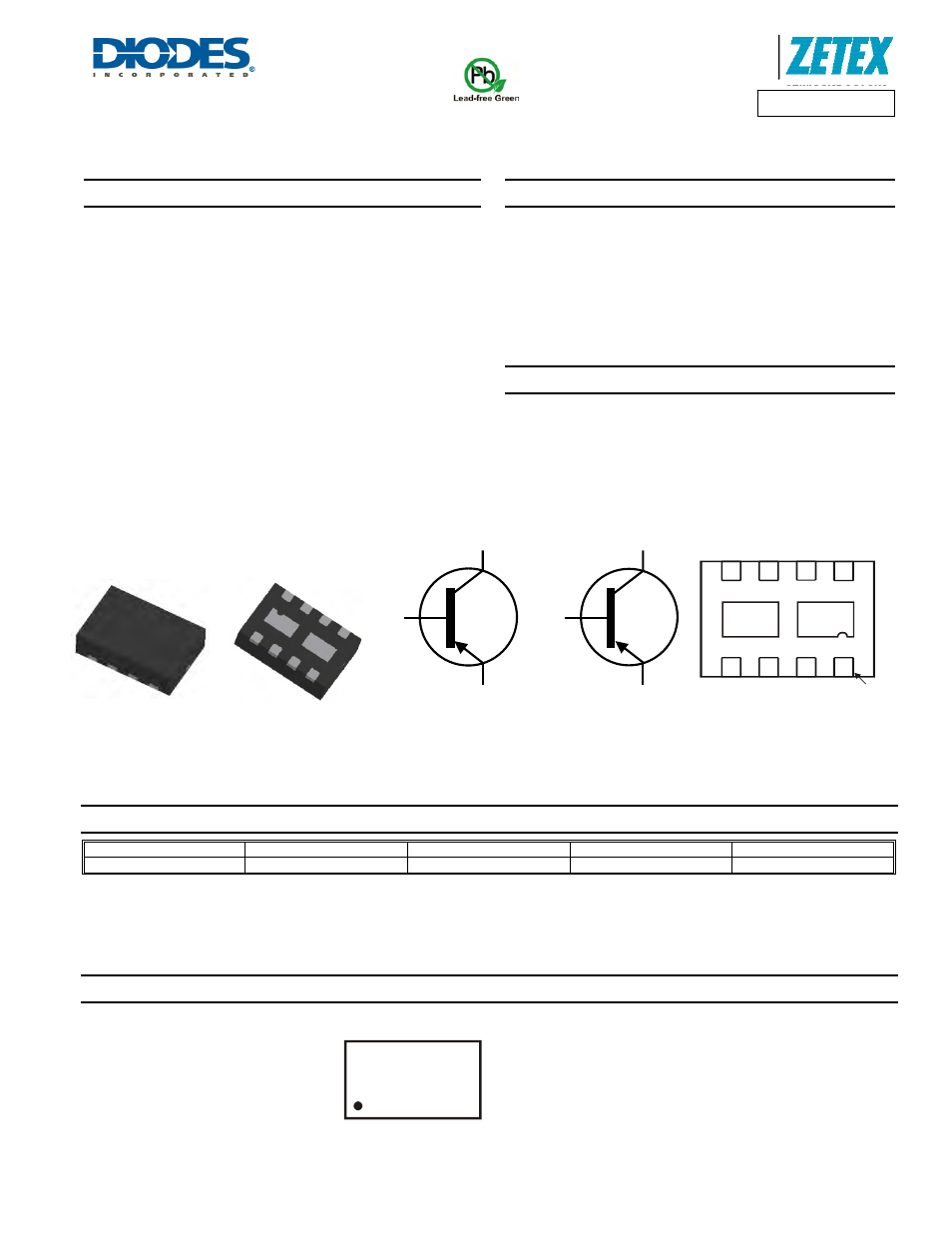

Equivalent Circuit
Top View Bottom View
DFN3020B-8
PNP Transistor PNP Transistor
C2 C2 C1 C1
E2 B2 E1 B1
C1 C2
Pin 1
Bottom View
Pin Out
C1
E1
B1
C2
E2
B2
D22
