ZXTD717MC
Document Number DS31934 Rev. 3 - 2
1 of 7
December 2010
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTD717MC
DUAL 12V PNP LOW SATURATION TRANSISTORS
Features and Benefits
• BV
CEO
> -12V
•
I
C
= -4A Continuous Collector Current
•
Low Saturation Voltage (-140mV @ -1A)
•
R
SAT
= 60 m
Ω
for a low equivalent On-Resistance
•
h
FE
specified up to -10A for a high current gain hold up
•
Dual NPN saving footprint and component count
•
Low profile 0.8mm high package for thin applications
•
R
θJA
efficient, 40% lower than SOT26
• 6mm
2
footprint, 50% smaller than TSOP6 and SOT26
•
Lead-Free, RoHS Compliant (Note 1)
•
Halogen and Antimony Free. “Green” Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
DFN3020B-8
•
Case material: Molded Plastic. “Green” Molding Compound.
•
Terminals: Pre-Plated NiPdAu leadframe.
•
Nominal package height: 0.8mm
•
UL Flammability Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Weight: 0.013 grams (approximate)
Applications
• DC-DC
Converters
• Charging
circuits
• Power
switches
• Motor
drive
Ordering Information
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXTD717MCTA D11
7
8
3000
Notes:
1. No purposefully added lead.
2. Diodes Inc’s “Green” Policy can be found on our websit
Marking Information
D11 = Product type marking code
Top view, dot denotes pin 1

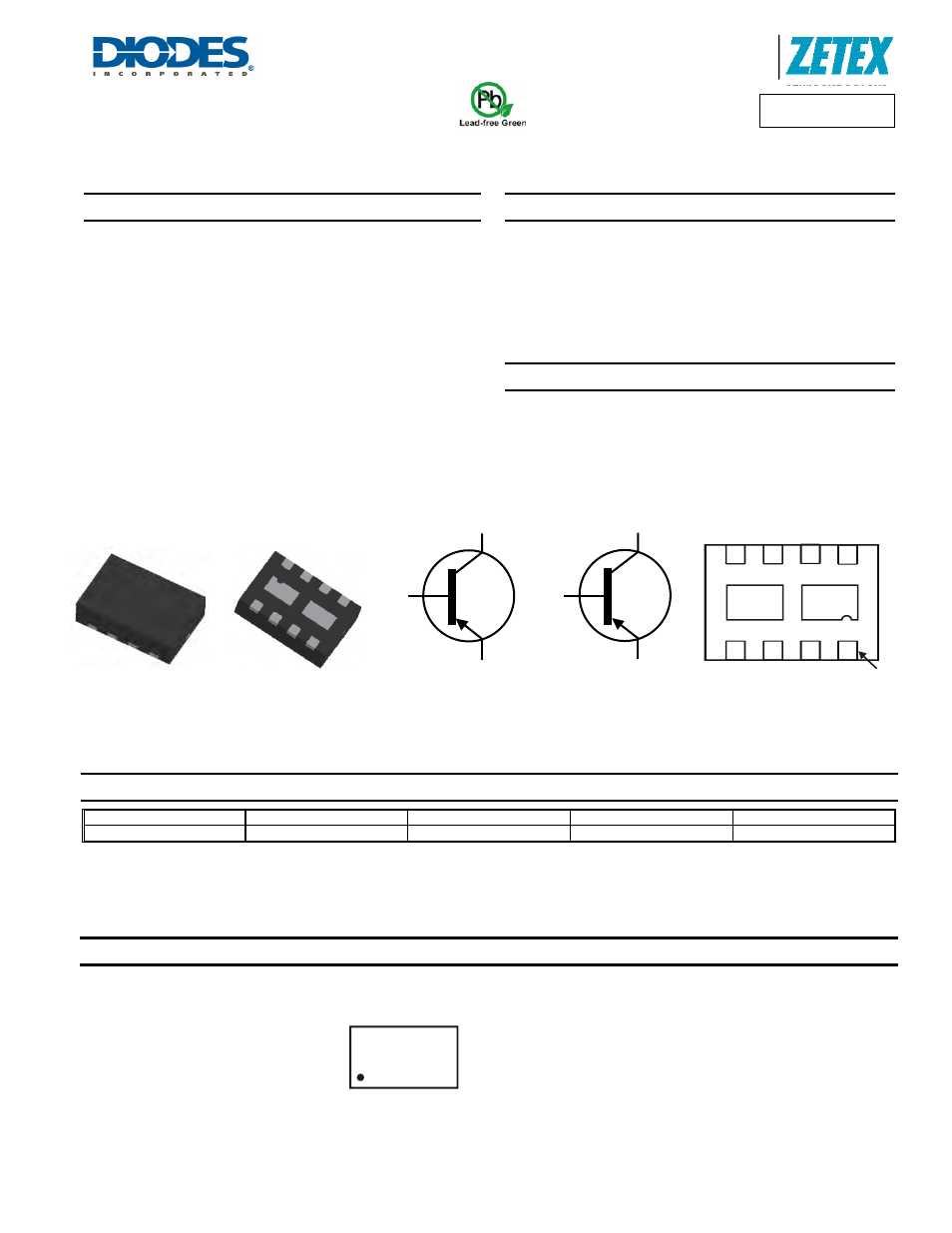

Equivalent Circuit
Top View
Bottom View
DFN3020B-8
PNP Transistor
PNP Transistor
C2
E2
B2
C1
E1
B1
Bottom View
Pin-Out
C2
C2
C1
C1
E2
B2
E1
B1
C2
C1
Pin 1
D11
