ZXT2MA
20V PNP LOW SATURATION SWITCHING TRANSISTOR
Features and Benefits
• BV
CEO
> -20V
•
I
C
= -3.5A Continuous Collector Current
•
Low Saturation Voltage (-220mV @ -1A)
•
R
SAT
= 64 m
Ω for a low equivalent On-Resistance
•
h
FE
specified up to -6A for high current gain hold up
•
R
θJA
efficient, 60% lower than SOT23
• 4mm
2
footprint, 50% smaller than SOT23
•
Lead Free, RoHS Compliant (Note 1)
•
Halogen and Antimony Free. "Green" Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Applications
•
MOSFET Gate Driving
• DC-DC
Converters
• Charging
Circuits
• Power
switches
• Motor
Control
Mechanical Data
• Case:
DFN322
•
Case material: Molded Plastic. “Green” Molding Compound.
•
Terminals: Matte Tin Finish.
•
Nominal package height: 0.85mm
•
UL Flammability Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Weight: 0.01 grams (approximate)
Ordering Information
(Note 3)
Notes:
1. No purposefully added lead.
2. Diodes Inc's "Green" policy can be found on our w3. For packaging details, go to our website at
Marking Information
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXT2MATA S2
7
8
3,000
ZXT2MATC S2
13
8
10,000

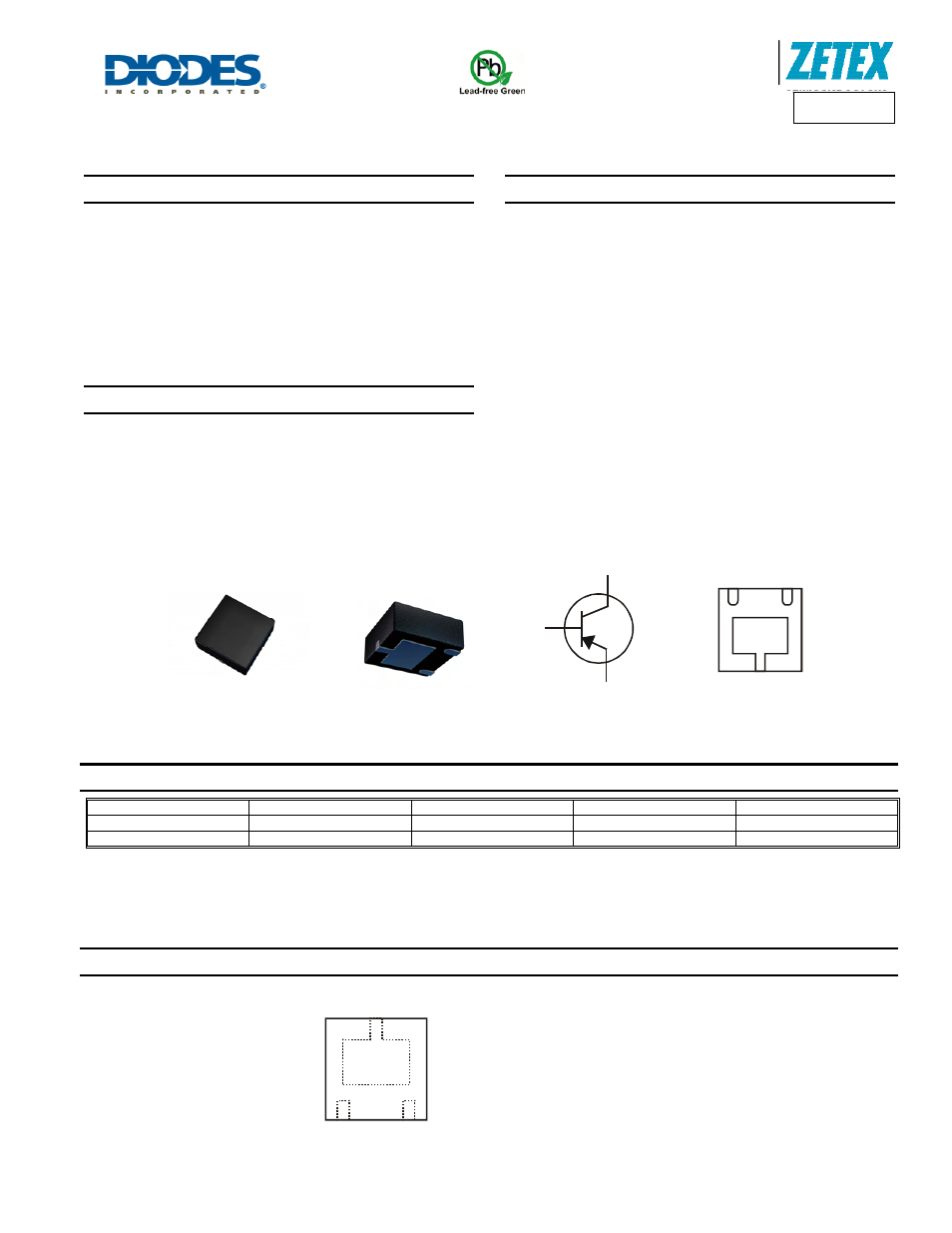

DFN322
S2 = Product Type Marking code
Top View
C
E
B
Top View
Device Symbol
Bottom View
Pin Out
Bottom View
C
B
E
S2
