TBZ363C5V5 - TBZ363C20V8


TRIPLE BI-DIRECTIONAL SURFACE MOUNT ZENER DIODE ARRAY

Features

Nominal Zener Voltages: 5.5V, 6.4V, 7.0V, 20.8V

Ultra-Small Surface Mount Package

Ideal For Transient Suppression

Lead Free/RoHS Compliant (Note 4)

"Green" Device (Note 5 and 6)


Mechanical Data

Case: SOT-363

Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020D

Terminals: Solderable per MIL-STD-202, Method 208

Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe).

Marking Information: See Page 2

Ordering Information: See Page 2

Weight: 0.0061 grams (approximate)








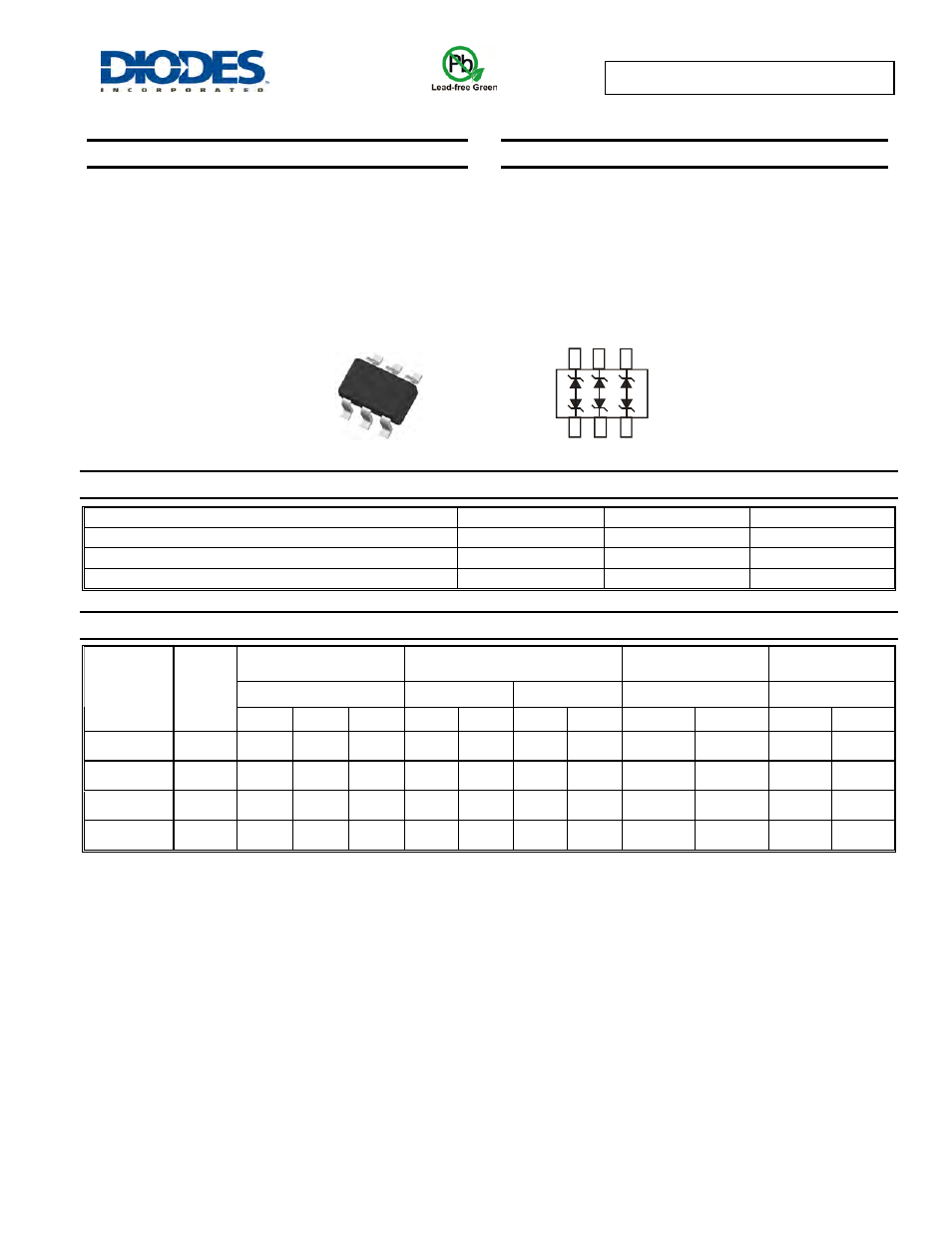

Top View

Device Schematic

Thermal Characteristics

Characteristic

Symbol

Value

Unit

Power Dissipation (Note1)

P

D

200

mW

Thermal Resistance, Junction to Ambient Air (Note 1)

R

θJA

625

°C/W

Operating and Storage Temperature Range

T

J,

T

STG

-65 to +150

°C

Electrical Characteristics

@T

A

= 25°C unless otherwise specified

Zener Voltage

Range (Note 2)

Maximum Zener Impedance

(Note 3)

Maximum Reverse

Current (Note 2)

Temperature

Coefficient

V

Z @

I

ZT

Z

ZT

@

I

ZT

Z

ZK @

I

ZK

I

R

@

V

R

TC (mV/

o

C)

Type

Number

Marking

Code

Nom (V) Min (V) Max (V)

Ω

mA

Ω

mA

μA

V

Min

Max

TBZ363C5V5

KL1

5.5

5.22

5.78

80

5.0

500

1.0

1.0

2.0

-5.5

-2.2

TBZ363C6V4

KL3

6.4

6.08

6.72

50

5.0

400

1.0

2.0

3.0

-4.0

0.5

TBZ363C7V0

KL5

7.0

6.65

7.35

18

5.0

200

1.0

2.0

4.0

-1.6

1.7

TBZ363C20V8

KV7

20.8

19.76

21.84

58

5.0

225

1.0

0.1

14

12.4

16.0

Notes:

1. Mounted on FR4 PC Board with recommended pad layout which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
2. V

Z

measured @ I

ZT

using a short duration pulse. Standard voltage tolerance is 5%.

3. f = 1KHz.
4. No purposefully added lead.
5. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
6. Product manufactured with Date Code UO (week 40, 2007) and newer are built with Green Molding Compound. Product manufactured prior to Date

Code UO are built with Non-Green Molding Compound and may contain Halogens or Sb

2

O

3

Fire Retardants.


















Please click here to visit our online spice models database.
