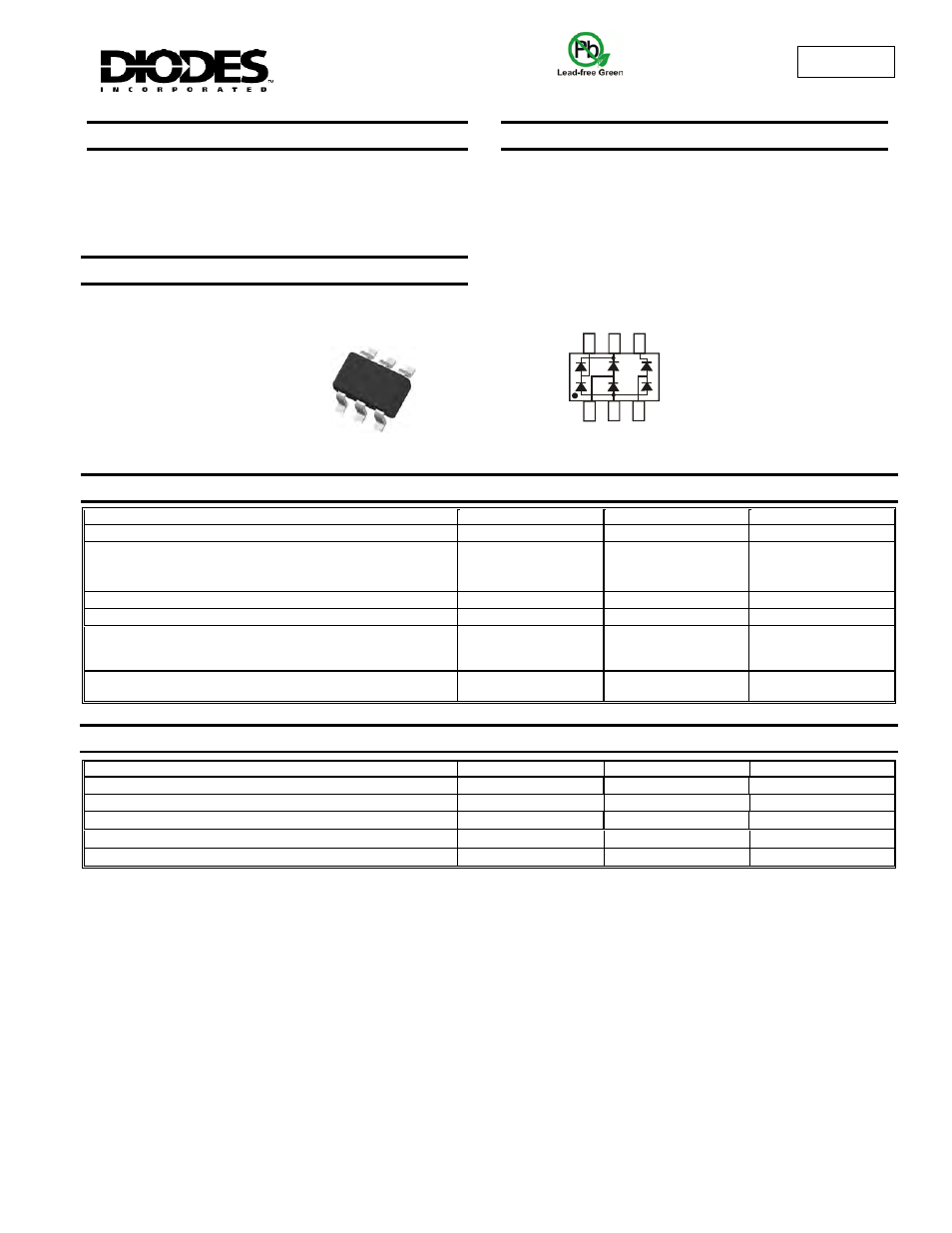

SDA006
DATA BUS TRANSIENT SUPPRESSOR / 3-PHASE FULL WAVE BRIDGE RECTIFIER
Features
•
Fast Switching Speed
•
Ultra-Small Surface Mount Package
•
For 3-Phase Full Wave Bridge Rectification, or 3 Dataline Rail
Clamp
•
Lead Free By Design/RoHS Compliant (Note 3)
•
"Green" Device (Note 4)
IEC Compatibility
(Note 5)
•
61000-4-2 (ESD) Air-10kV Contact-8kV
•
61000-4-5 (Surge) 8x20
μs, 14.5 Amperes
Mechanical Data
•
Case: SOT-363
•
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0 (Note 4)
•
Moisture Sensitivity: Level 1 per J-STD-020D
•
Terminals: Finish
⎯ Matte Tin annealed over Alloy 42
Leadframe. Solderable per MIL-STD-202, Method 208
•
Marking Information: See Page 3
•
Ordering Information: See Page 3
•
Weight: 0.006 grams (approximate)
DC
V
+
CC
DC
V
+
CC
AC
DL
3
3
/
/
/
/
/
/
DL
AC
1
1
DL
AC
2
2
GND
DC-
SOT-363
Internal Schematic
TOP VIEW
TOP VIEW
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic
Symbol
Value
Unit
Non-Repetitive Peak Reverse Voltage
V
RM
100
V
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
V
RRM
V
RWM
V
R
75
V
RMS Reverse Voltage
V
R(RMS)
53
V
Forward Continuous Current (Note 1)
I
FM
215
mA
Non-Repetitive Peak Forward Surge Current @ t = 1.0
μs
@ t = 1.0ms
@ t = 1.0s
I
FSM
2.0
1.0
0.5
A
Clamping Voltage (Note 6) @ Ipp = 14.5A
8x20
μs Waveform
V
C
16 V
Thermal Characteristics
Characteristic
Symbol
Value
Unit
Power Dissipation (Note 1)
P
D
200
mW
Power Dissipation (Note 2)
P
D
300
mW
Thermal Resistance Junction to Ambient Air (Note 1)
R
θJA
625
°C/W
Thermal Resistance Junction to Ambient Air (Note 2)
R
θJA
417
°C/W
Operating and Storage Temperature Range
T
J
, T
STG
-65 to +150
°C
Notes:
1. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch; pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which
can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
2. Device mounted on Alumina PCB, 0.4 inch x 0.3 inch x 0.024 inch; pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which
can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
3. No purposefully added lead.
4. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
5. Tested with V
CC
connected to Ground to simulate appropriate V
CC
decoupling to Ground.
6. Reference to V
CC
or Ground.
