ZHCS400
Electrical Characteristics
@T
A
= 25°C unless otherwise specified
Characteristic Symbol Min Typ Max Unit Test Condition
Reverse Breakdown Voltage V
(BR)R
40 60 - V I
R
= 200 μA
Forward Voltage V
F
- 270 300
mV
I F = 50mA
- 300 350 I
F
= 100mA
- 370 460 I
F
= 250mA
- 425 500 I F = 400mA
- 550 670 I
F
= 750mA
- 640 780 I
F
= 1,000mA
- 810 1050 I
F
= 1,500mA
- 440 - I
F
= 500mA, TA = 100°C
Reverse Current I
R
- 15 40 μA
V
R
= 30V
Diode Capacitance C
D
- 20 - pF f = 1MHz, V
R
= 25V

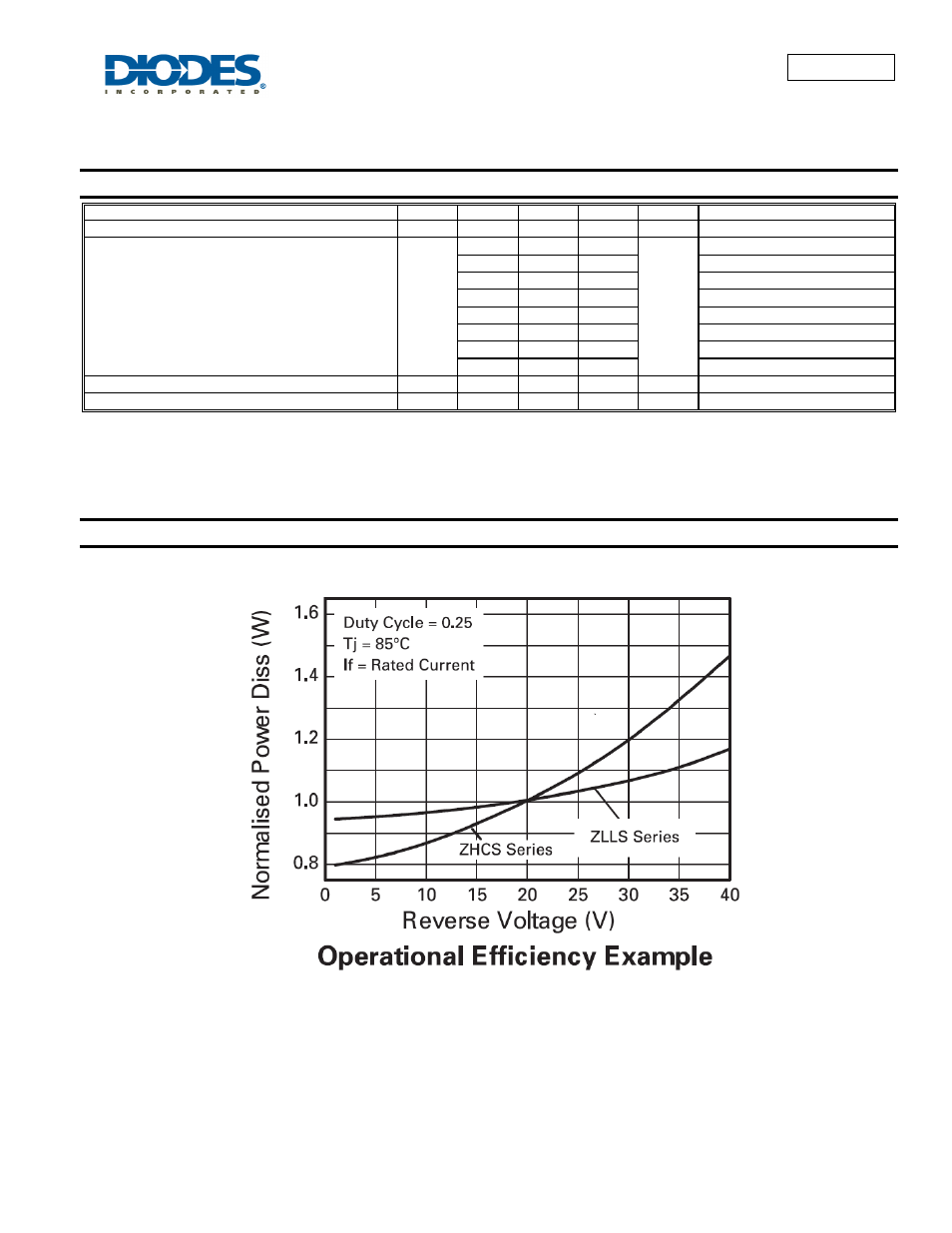

Operational efficiency chart
The operational efficiency chart indicates the beneficial use of the ZLLS series diodes in applications requiring higher voltage, higher temperature
operation. Circuits requiring low voltage low temperature operation will benefit from using Zetex low V
F
ZHCS series diodes.
