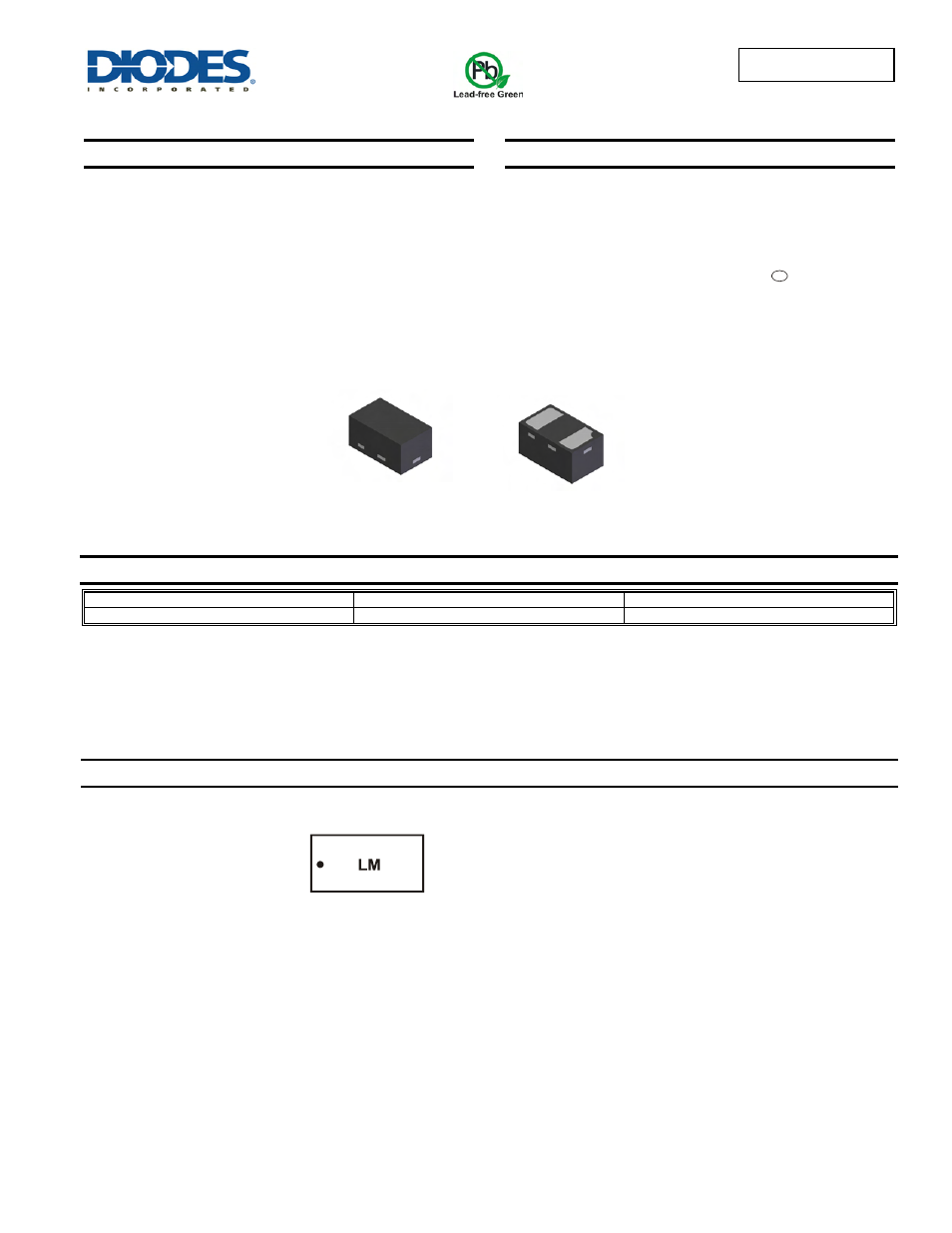

SDM20U30LP
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Features
•
Low Forward Voltage Drop
• Guard Ring Construction for Transient Protection
• Low
Capacitance
•
Ultra-Small Surface Mount Package
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
X1-DFN1006-2
• Case Material: Molded Plastic, "Green" Molding
Compound. UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
•
Terminal Connections: Cathode Dot
•
Terminals: Finish
⎯ NiPdAu annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208 e4
• Weight: 0.001 grams (approximate)
Ordering Information
(Note 4)
Device Packaging Shipping
SDM20U30LP-7 X1-DFN1006-2 3000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.
Marking Information
Top View Bottom View
LM = Product Type Marking Code, Dot Denotes Cathode Side
X1-DFN1006-2
