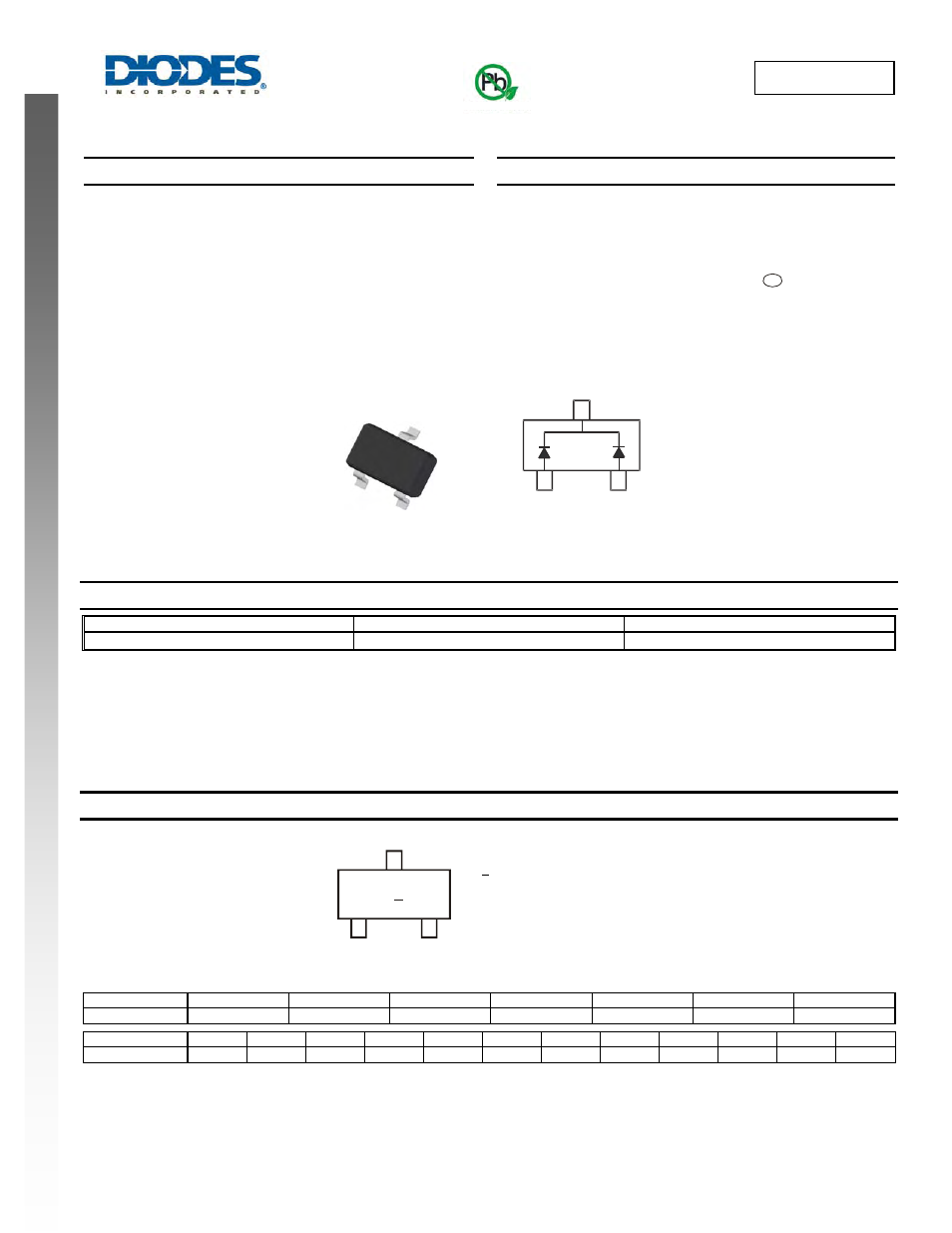

SBR0330CW
Document number: DS33000 Rev. 4 - 2
1 of 5
July 2012
© Diodes Incorporated
SBR0330CW
NEW PROD
UC
T
SBR is a registered trademark of Diodes Incorporated.
0.3A SBR
®
SUPER BARRIER RECTIFIER
Features
•
Low Forward Voltage
•
Ultra Low Reverse Leakage
•
Excellent High Temperature Stability
•
Patented Super Barrier Rectifier Technology
•
Soft, Fast Switching Capability
•
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
• Case:
SOT323
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish — Matte Tin annealed over Alloy 42 leadframe.
Solderable per MIL-STD-202, Method 208
•
Terminal Connections: See Diagram
•
Weight: 0.008 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
SBR0330CW-7
SOT323
3000/Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. Se information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2011
2012
2013
2014
2015
2016
2017
Code Y
Z
A
B
C D
E
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Equivalent Circuit
Top View
SOT323
Cathode
Anode
Anode
e3
23 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Y = 2011)
M = Month (ex: 9 = September)
23
YM
Green
