SBR02U100LP
Document number: DS31134 Rev. 7 - 2
1 of 5
June 2011
© Diodes Incorporated
SBR02U100LP
SBR is a registered trademark of Diodes Incorporated.
0.2A SBR
®
SURFACE MOUNT SUPER BARRIER RECTIFIER
Features
•
Ultra Low Forward Voltage Drop
•
Superior Reverse Avalanche Capability
•
Patented Super Barrier Rectifier Technology
•
Soft, Fast Switching Capability
•
150ºC Operating Junction Temperature
•
Lead Free Finish, RoHS Compliant (Note 1)
•
“Green” Molding Compound (No Br, Sb)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
DFN1006-2
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminal Connections: Cathode Dot
•
Terminals: Finish - NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208
•
Weight: 0.001 grams
Ordering Information
(Note 2)
Part Number
Case
Packaging
SBR02U100LP-7
DFN1006-2
3000/Tape & Reel
SBR02U100LP-7B
DFN1006-2
10,000/Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes.
2. For packaging details, go to our website at

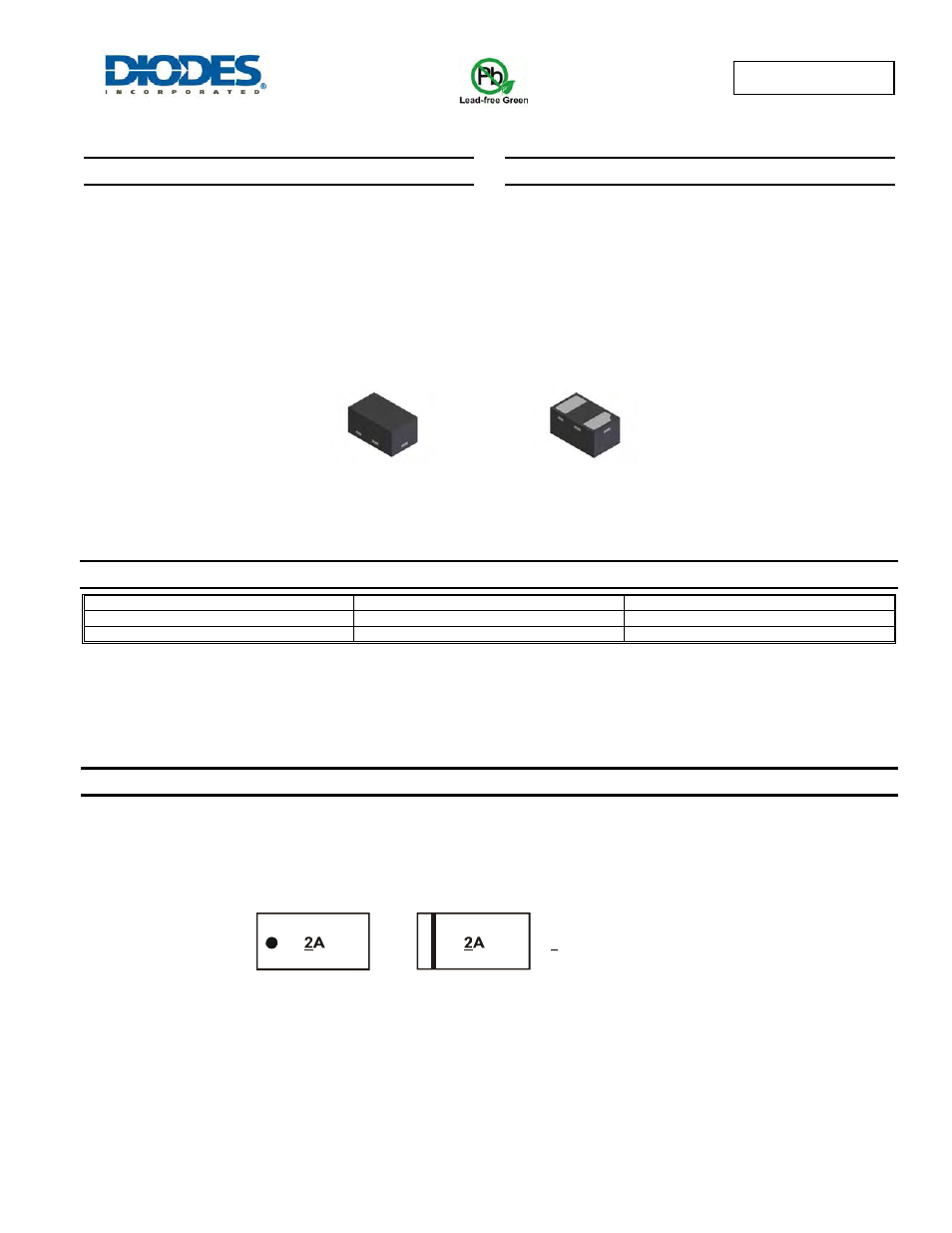

Marking Information
Top View
Bottom View
2A = Product Type Marking Code
SBR02U100LP-7 SBR02U100LP-7B
Top View
Bar Denotes
Cathode Side
Top View
Dot Denotes
Cathode Side
