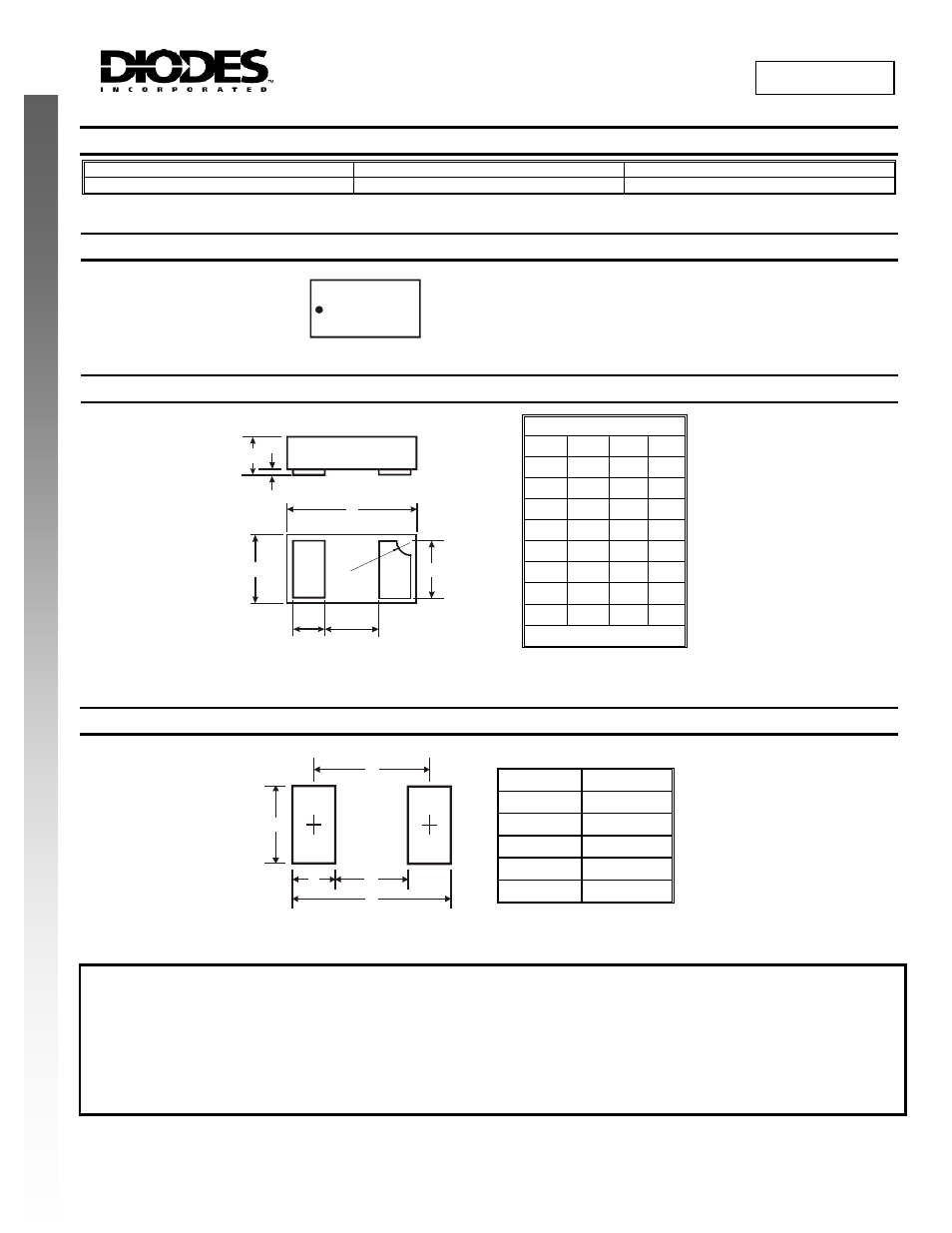

SBR0220LP



Ordering Information

(Note 5)

Part Number

Case

Packaging

SBR0220LP-7

DFN1006-2

3000/Tape & Reel

Notes:

5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.

NEW PRODUCT

SBR is a registered trademark of Diodes Incorporated.

Marking Information


22

22 = Product Type Marking Code
Dot Denotes Cathode Side





Package Outline Dimensions

DFN1006-2

Dim

Min

Max

Typ

A

0.95 1.075 1.00

B

0.55 0.675 0.60

C

0.45

0.55 0.50

D

0.20

0.30 0.25

G

0.47

0.53 0.50

H

0

0.05 0.03

N

0.40

R

0.05 0.15 0.10

All Dimensions in mm

D

B

C

R

N

A

H

G

SBR0220LP

Document number: DS31062 Rev. 5 - 2

3 of 3

www.diodes.com

March 2008

© Diodes Incorporated


Suggested Pad Layout


Z

X

C

G

Y

Dimensions

Value (in mm)

Z

1.1

G

0.3

X

0.7

Y

0.4

C

0.7











IMPORTANT NOTICE

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product
described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall
assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website,
harmless against all damages.

LIFE SUPPORT

Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written
approval of the President of Diodes Incorporated.
