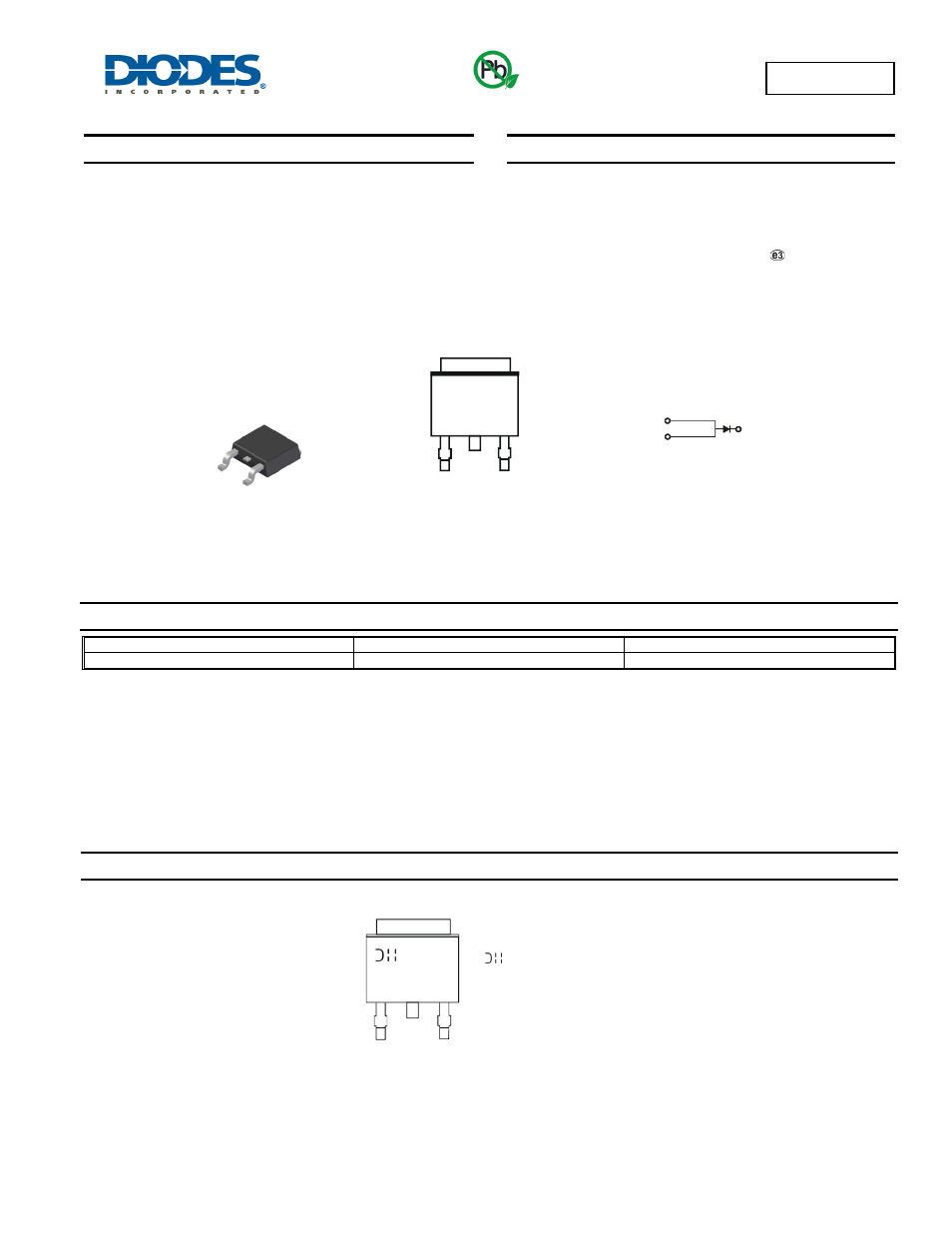

UF5A400D1

NEW PROD

UC

T


5A ULTRA-FAST RECTIFIER

Features

• Ultra-Fast

Die

Construction

Soft, Fast Switching Capability

• Low

Leakage

Current

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Mechanical Data

• Case:

TO252

Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish – Matte Tin Annealed Over Copper Leadframe
Solderable per MIL-STD-202, Method 208

Polarity: See Diagram






















Ordering Information

(Note 4)

Part Number

Case

Packaging

UF5A400D1-13 TO252 2500

pieces/reel

Notes:

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.







Marking Information



















Top View

LEFT PIN

RIGHT PIN

Note: Pins Left & Right must

be electrically connected

at the printed circuit board.

BOTTOMSIDE
HEAT SINK

A

A

C

Top View

Pin-Out

UF5A400 = Product Type Marking Code
= Manufacturers’ Code Marking
YYWW = Date code marking
YY = Last two digits of year (ex: 14 for 2014)
WW = Week code (01 to 53)

YYWW

UF5A400

Green
