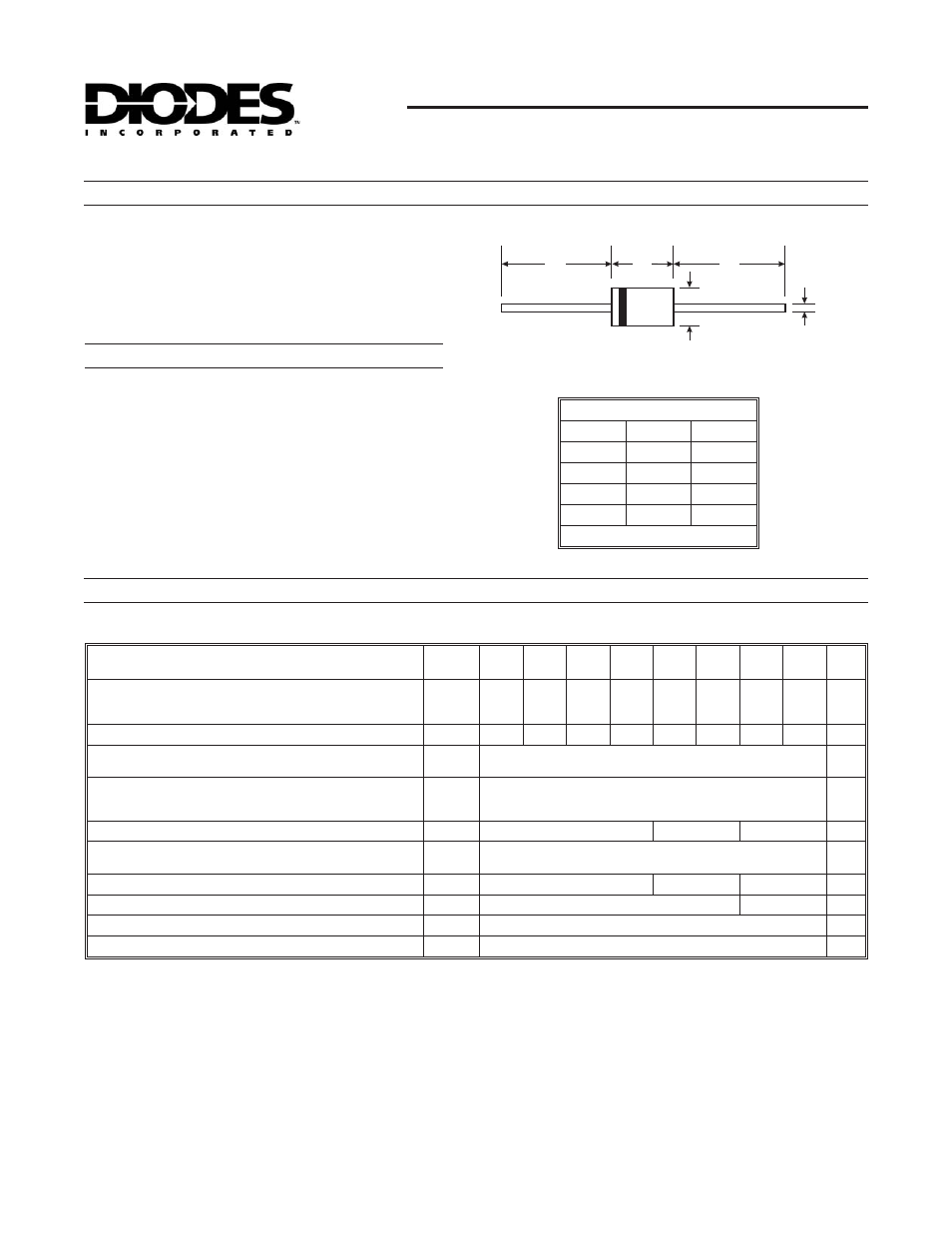

SF30AG - SF30JG
3.0A SUPER-FAST GLASS PASSIVATED RECTIFIER
Features
DO-201AD
Dim Min Max
A 25.40 ¾
B 7.20 9.50
C 1.20 1.30
D 4.80 5.30
All Dimensions in mm
A A B
C
D
Maximum Ratings and Electrical Characteristics @ T A = 25 °C unless otherwise specified
·
Glass Passivated Die Construction
·
Diffused Junction
·
Super-Fast Switching for High Efficiency
·
High Current Capability and Low Forward Voltage Drop
·
Surge Overload Rating to 125A Peak
Low Reverse Leakage Current
·
Lead Free Finish, RoHS Compliant (Note 4)
Mechanical Data
·
Case: DO-201AD
·
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
·
Moisture Sensitivity: Level 1 per J-STD-020C
·
Terminals: Finish - Bright Tin. Plated Leads Solderable per
MIL-STD-202, Method 208
·
Polarity: Cathode Band
·
Mounting Position: Any
·
Ordering Information: See Last Page
·
Marking: Type Number
·
Weight: 1.12 grams (approximate)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic Symbol
SF30
AG
SF30
BG
SF30
CG
SF30
DG
SF30
FG
SF30
GG
SF30
HG
SF30
JG
Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage V RRM
V
RWM
V
R
50 100 150 200 300 400 500 600 V
RMS Reverse Voltage V
R(RMS) 35 70 100 140 210 280 350 420 V
Average Rectified Output Current
(Note 1)
@ T
A
= 55 °C
I
O 3.0 A
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave Superimposed on Rated Load
(JEDEC Method)
I
FSM 125 A
Forward Voltage @ I
F
= 3.0A V
FM 0.95 1.3 1.5 V
Peak Reverse Current @ T
A
= 25 °C
at Rated DC Blocking Voltage @ T A = 100 °C
I
RM
5.0
100
mA
Reverse Recovery Time (Note 3) t
rr 35 40 50 ns
Typical Junction Capacitance (Note 2) C
j 75 50 pF
Typical Thermal Resistance Junction to Ambient R qJA 32 K/W
Operating and Storage Temperature Range T j, T STG -65 to +150 °C
Notes: 1. Valid provided that leads are maintained at ambient temperature at a distance of 9.5mm from the case.
2. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
3. Measured with I F = 0.5A, I R = 1.0A, I rr = 0.25A. See Figure 5.
4. RoHS revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied, see EU Directive Annex Notes 5 and 7.
