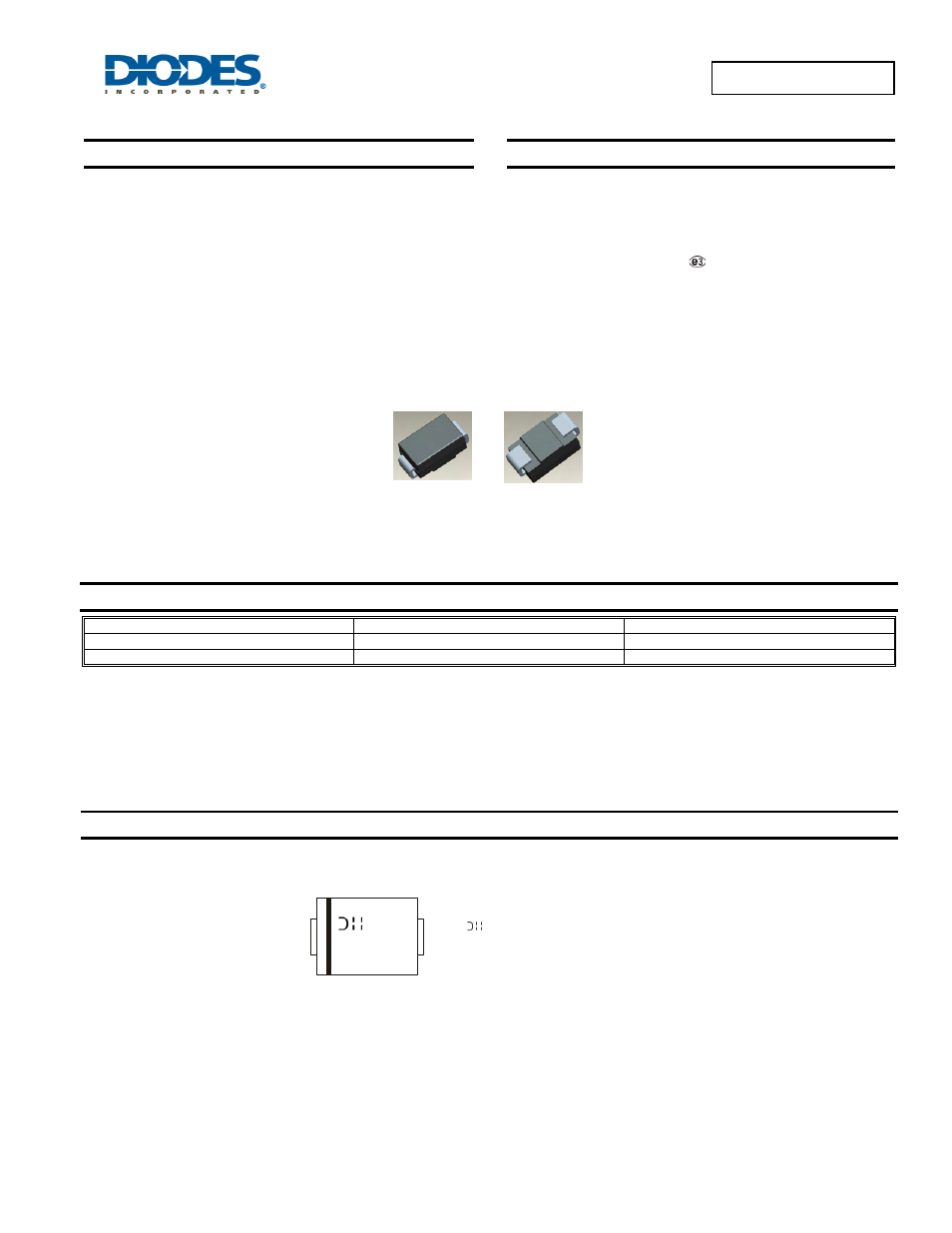

RS2A/A - RS2M/A
1.5A SURFACE MOUNT FAST RECOVERY RECTIFIER
Features
•
Glass Passivated Die Construction
•
Fast Recovery Time For High Efficiency
•
Surge Overload Rating to 50A Peak
•
Ideally Suited for Automated Assembly
•
Lead Free Finish/RoHS Compliant (Note 1)
•
Green Molding Compound (No Halogen and Antimony)
(Note 2)
Mechanical Data
•
Case: SMA/SMB
•
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Lead Free Plating (Matte Tin Finish). Solderable per
MIL-STD-202, Method 208
•
Polarity: Cathode Band or Cathode Notch
•
SMA Weight: 0.065 grams (approximate)
•
SMB Weight: 0.09 grams (approximate)
Ordering Information
(Note 3)
Part Number
Case
Packaging
RS2xA-13-F
SMA
5000/Tape & Reel
RS2x-13-F
SMB
3000/Tape & Reel
*x = Device type, e.g. RS2DA-13-F (SMA package); RS2J-13-F (SMB package).
Notes:
1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes.
2. Product manufactured with Data Code 0924 (week 24, 2009) and newer are built with Green Molding Compound.
3. For packaging details, go to our website at
Marking Information
Top View
Bottom View
RS2x = Product type marking code, ex: RS2G (SMB package)
RS2xA = Product type marking code, ex: RS2GA (SMA package)
= Manufacturers’ code marking
YWW = Date code marking
Y = Last digit of year (ex: 2 for 2002)
WW = Week code (01 to 53)
YWW
RS2x(A)
