PDU420
4A ULTRA-FAST RECOVERY RECTIFIER
PowerDI ä 5
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic Symbol Value Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
V
RRM
V
RWM
V
R
200 V
RMS Reverse Voltage V
R(RMS) 141 V
Average Rectified Output Current (See also figure 4) I
O
4 A
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave Superimposed on Rated Load
I
FSM 125 A
Maximum Ratings @ T
A
= 25°C unless otherwise specified
Characteristic Symbol Typ Max Unit
Thermal Resistance Junction to Soldering Point R
q JS ¾ 3.0 ° C/W
Thermal Resistance Junction to Ambient Air (Note 2) T
A
= 25°C R
q JA 85 ¾ ° C/W
Thermal Resistance Junction to Ambient Air (Note 3) T
A
= 25°C R
q JA 60 ¾ ° C/W
Thermal Resistance Junction to Ambient Air (Note 4) T
A
= 25°C R
q JA 40 ¾ ° C/W
Operating Temperature Range T
j
-65 to +175 °C
Storage Temperature Range T
STG -65 to +175 °C
Notes: 1. RoHS revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied, see EU Directive Annex Notes 5 and 7.
2. FR-4 PCB, 2 oz. Copper, minimum recommended pad layout per http://www.diodes.com/datasheets/ap02001.pdf.
3. Polymide PCB, 2 oz. Copper, minimum recommended pad layout per http://www.diodes.com/datasheets/ap02001.pdf.
4. Polymide PCB, 2 oz. Copper. Cathode pad dimensions 9.4mm x 7.2mm. Anode pad dimensions 2.7mm x 1.6mm.
· Case: PowerDI ä 5
· Case Material: Molded Plastic, “Green” Molding
Compound. UL Flammability Classification Rating 94V-0
· Moisture Sensitivity: Level 1 per J-STD-020C
· Terminals: Finish – Matte Tin annealed over Copper
leadframe. Solderable per MIL-STD-202, Method 208
· Polarity: See Diagram on Page 4
· Marking: See Page 3
· Ordering Information: See Page 3
· Weight: 0.096 grams (approximate)
· Glass Passivated Die Construction
· Ultra-Fast Recovery Time for High Efficiency
· High Maximum Junction Temperature
· For Use in Low Voltage, High Frequency Inverters, Free
Wheeling, and Polarity Protection Applications
· High Forward Surge Current Capability
· Lead Free Finish, RoHS Compliant (Note 1)
· "Green" Molding Compound (No Br, Sb)
· Qualified to AEC-Q101 Standards for High Reliability
Thermal Characteristics

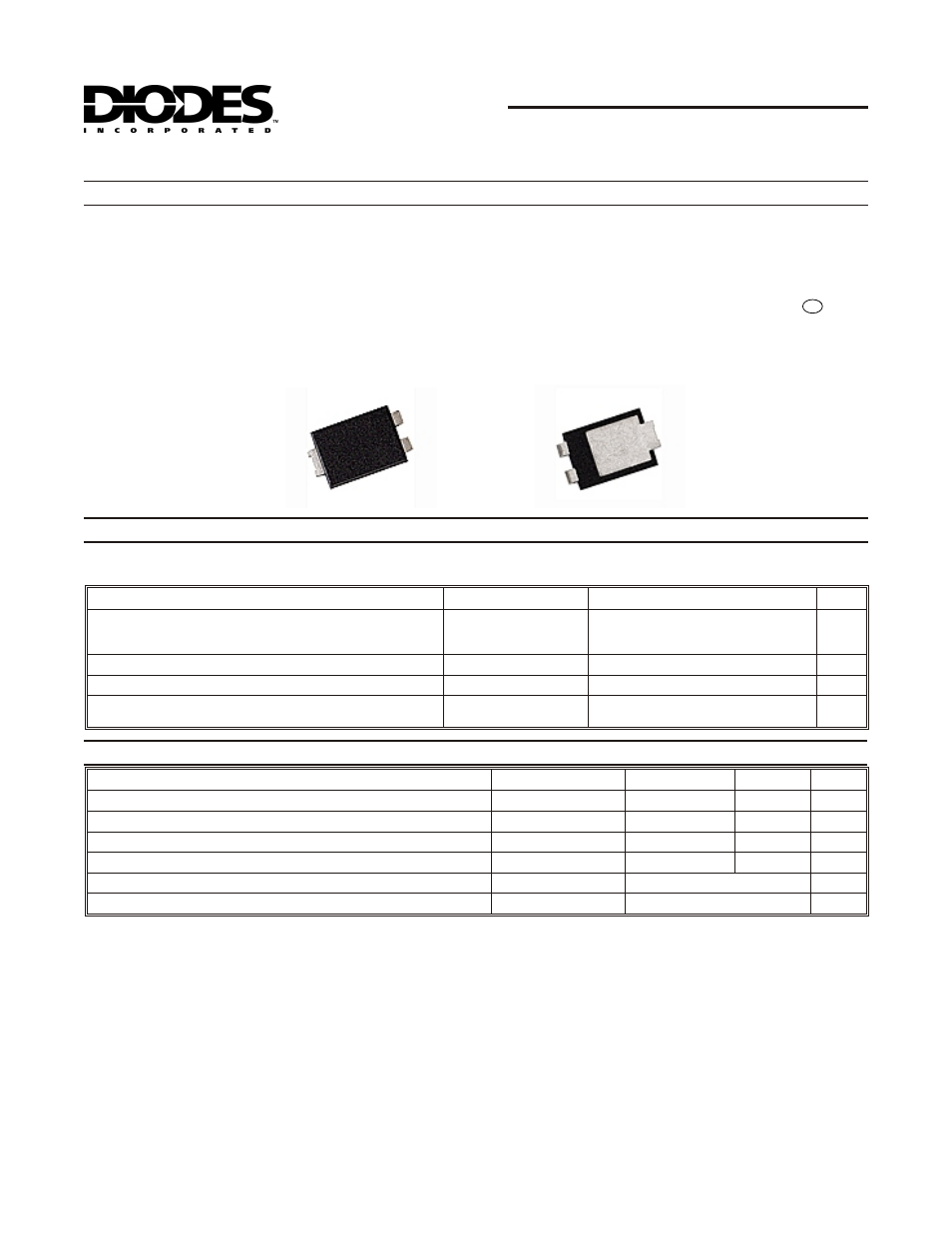

TOP VIEW BOTTOM VIEW
Features Mechanical Data
