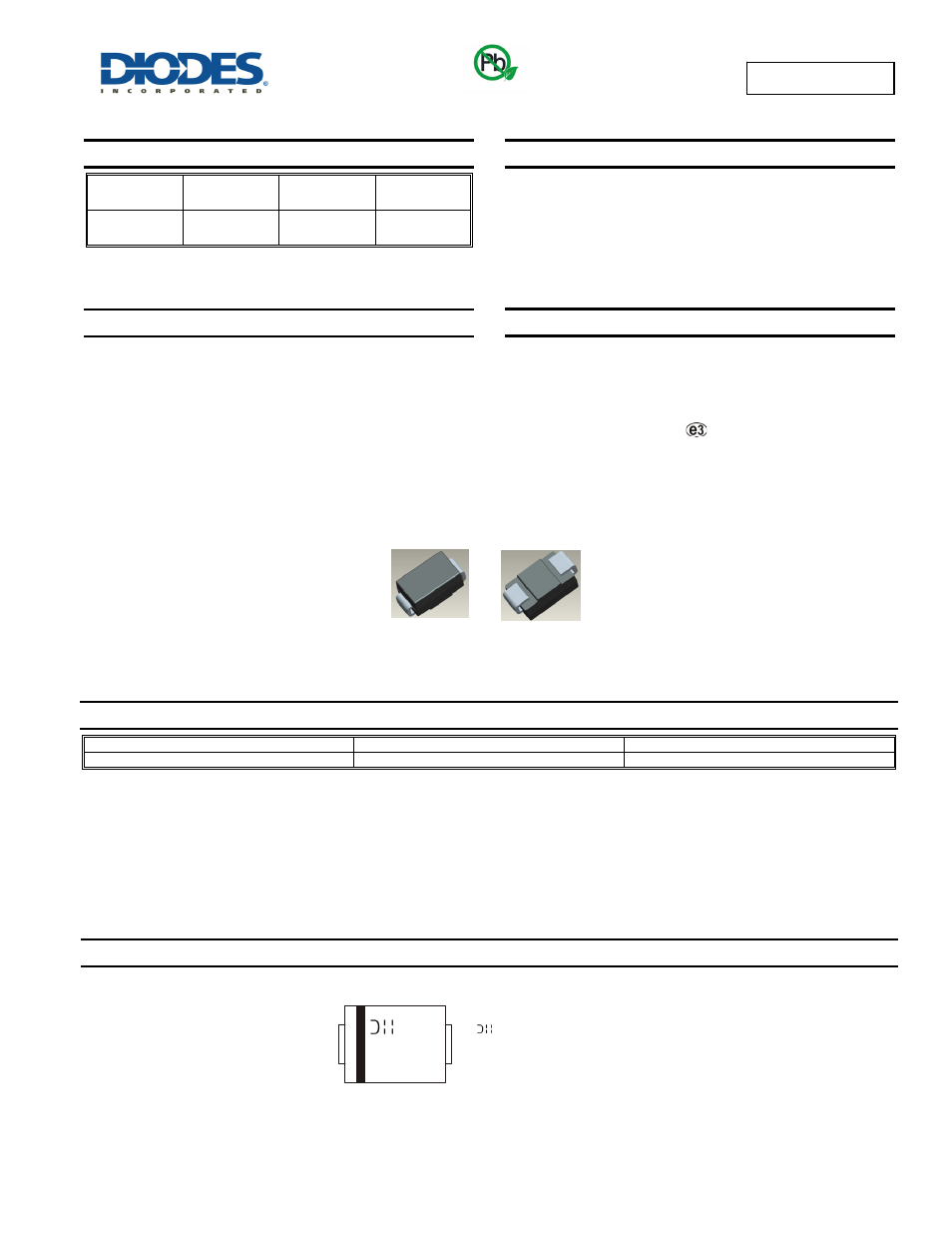

Diodes S8KC - S8MC User Manual
S8kc - s8mc, Product summary, Description and applications
S8KC - S8MC
Document number: DS31117 Rev. 9 - 2
1 of 4
November 2013
© Diodes Incorporated
S8KC - S8MC
8.0A SURFACE MOUNT GLASS PASSIVATED RECTIFIER
Product Summary
@T
A
= +25°C
V
RRM
(V)
I
O
(A)
V
F
(V)
I
R
(μA)
800, 1000
8
0.985
10
Description and Applications
8.0 A Surface Mount Glass Passivated Rectifier in SMC package,
offers high current capability and low forward voltage drop, designed
with Guard Ring for Transient Protection and high surge capacity.
Features and Benefits
Glass Passivated Die Construction
Low Forward Voltage Drop and High Current Capability
Surge Overload Rating to 200A Peak
Ideally Suited for Automated Assembly
Lead Free Finish/RoHS Compliant (Note 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case: SMC
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals: Lead Free Plating (Matte Tin Finish). Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band or Cathode Notch
Marking Information: See Page 2
Ordering Information: See Page 2
Weight: 0.21 grams (approximate)
Ordering Information
(Note 5)
Part Number
Case
Packaging
S8xC-13
SMC
3000/Tape & Reel
*x = Device type, e.g. S8MC-13.
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S more information about Diodes Incorporated’s definations of Halogen- and Antimony-free, “Green”
and Lead-free.
3.Halogen- and Antimony-free “Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
5. For packaging details, go to our website at
Marking Information
Green
Top View
Bottom View
xxxx = Product type marking code, ex: S8KC
= Manufacturers’ code marking
YWW = Date code marking
Y = Last digit of year (ex: 7 for 2007)
WW = Week code 01 to 52
YWW
xxxx
