SBR30A45CTBQ
Document number: DS36348 Rev. 1 - 2
1 of 5
July 2013
© Diodes Incorporated
SBR30A45CTBQ
SBR is a registered trademark of Diodes Incorporated.
30A SBR
®
SUPER BARRIER RECTIFIER
Product Summary
Description and Applications
This Super Barrier Rectifier (SBR) diode has been designed to meet
the stringent requirements of Automotive Applications. It is ideally
suited to use as :
Polarity Protection Diode
Re-circulating
Diode
Switching
Diode
V
RRM
(V)
I
O
(A)
V
F MAX
(V) @+25°C I
R MAX
(mA) @+25°C
45 30
0.55
0.5
Features and Benefits
100% Avalanche tested
Patented SBR technology provides a superior avalanche
capability than schottky diodes ensuring more rugged and
reliable end applications.
Reduced ultra-low forward voltage drop (V
F
); better efficiency
and cooler operation.
Reduced high temperature reverse leakage; increased reliability
against thermal runaway failure in high temperature operation
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: TO263 (D
2
Pak)
Case Material: Molded Plastic, “Green” Molding compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 1.6 grams (approximate)
Ordering Information
(Note 4)
Part Number
Compliance
Case
Packaging
SBR30A45CTBQ-13 Automotive
TO263
800/Tape
&
Reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at

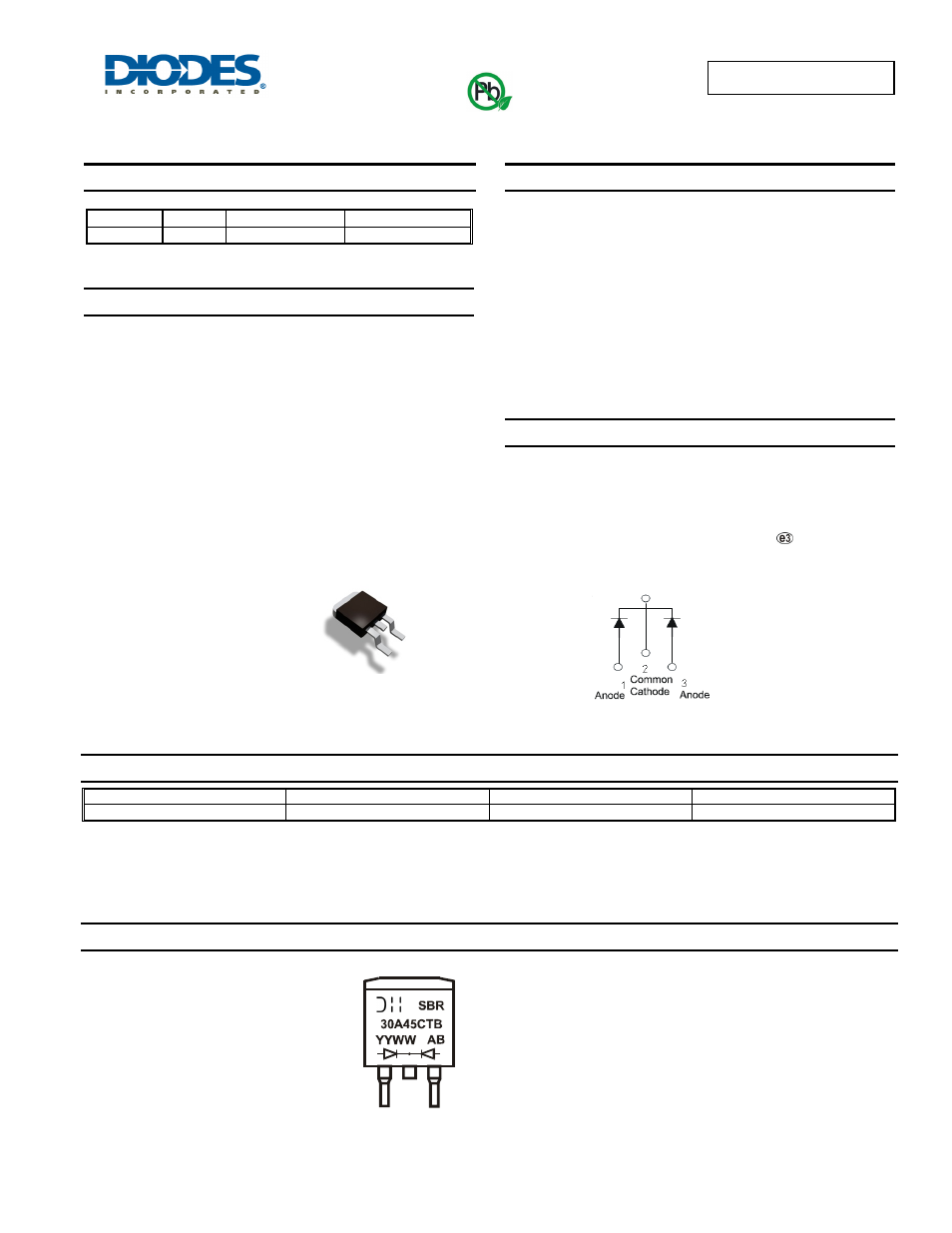

Marking Information
SBR30A45CTB = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 13 = 2013)
WW = Week (01 – 53)
Green
Top View
Package Pin-Out
Configuration
