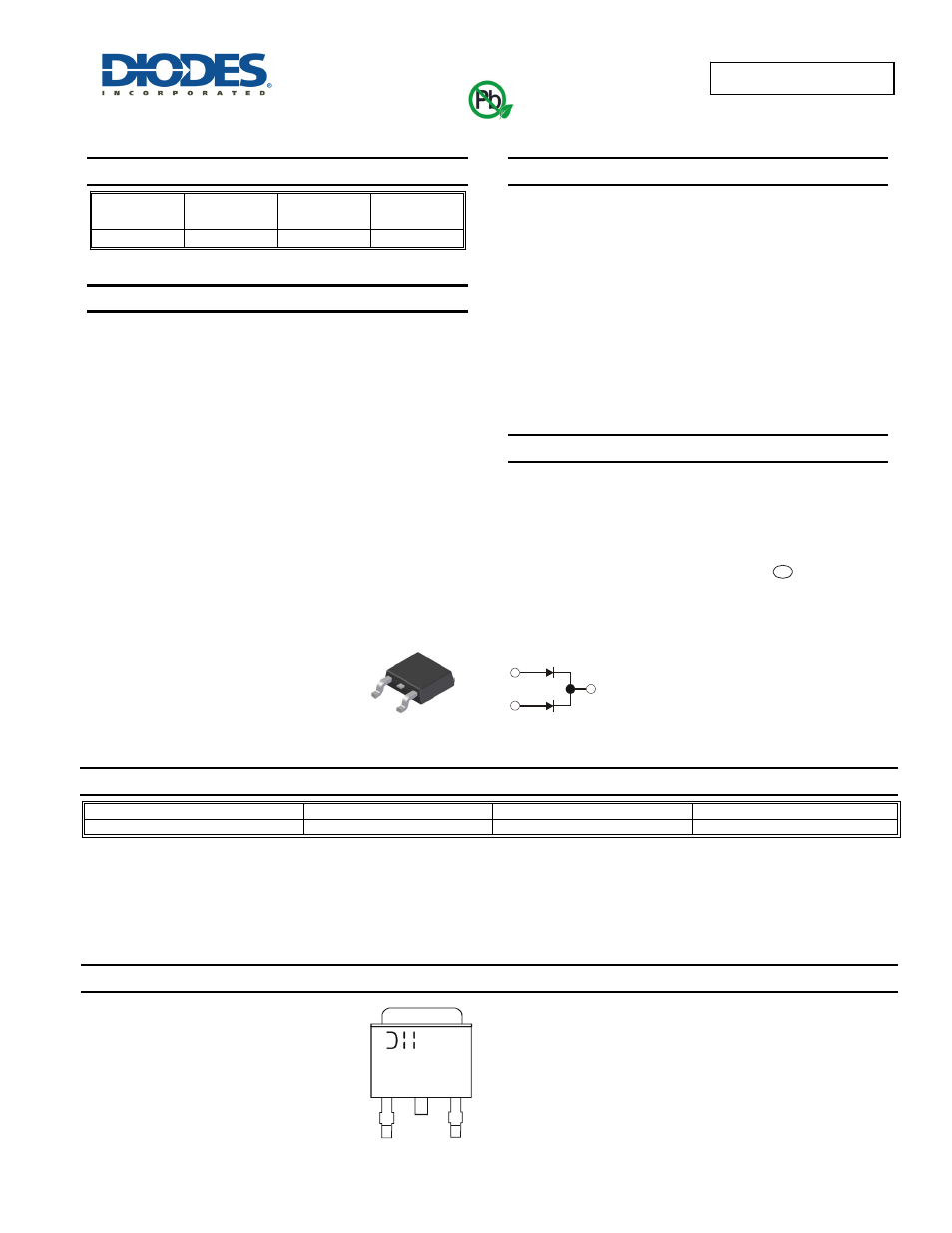

SBR15U100CTLQ
Document number: DS36130 Rev. 3 - 2
1 of 5
February 2014
© Diodes Incorporated
SBR15U100CTLQ
NEW PROD
UC
T
15A SBR
®
SUPER BARRIER RECTIFIER
Product Summary
V
RRM
(V)
I
O
(A)
V
F MAX
(V)
@+25°C
I
R MAX
(mA)
@+25°C
100 15 0.8 0.1
Description and Applications
This Super Barrier Rectifier (SBR) diode has been designed to meet
the stringent requirements of Automotive Applications. It is ideally
suited to use as :
•
Polarity Protection Diode
• Re-circulating
Diode
• Switching
Diode
Features and Benefits
•
100% Avalanche Tested
•
Patented SBR technology provides a superior avalanche
capability than schottky diodes ensuring more rugged and
reliable end applications
•
Reduced ultra-low forward voltage drop (V
F
); better efficiency
and cooler operation
•
Reduced high temperature reverse leakage; increased
reliability against thermal runaway failure at high temperature
•
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
•
PPAP Capable (Note 4)
Mechanical Data
•
Case: TO252 (DPAK)
•
Case Material: Molded Plastic, “Green” Molding compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish - Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Polarity: See Below
•
Weight: 0.34 grams (approximate)
Ordering Information
(Note 5)
Part Number
Compliance Case
Packaging
SBR15U100CTLQ-13 Automotive
TO252
2500
pieces/reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to
5. For packaging details, go to our website at
Marking Information
Green
Top View
Polarity
2
1
3
TO252
SBR15U100CT = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 14 = 2014)
WW = Week (01 - 53)
YYWW AB
15U100CT
SBR
e3
