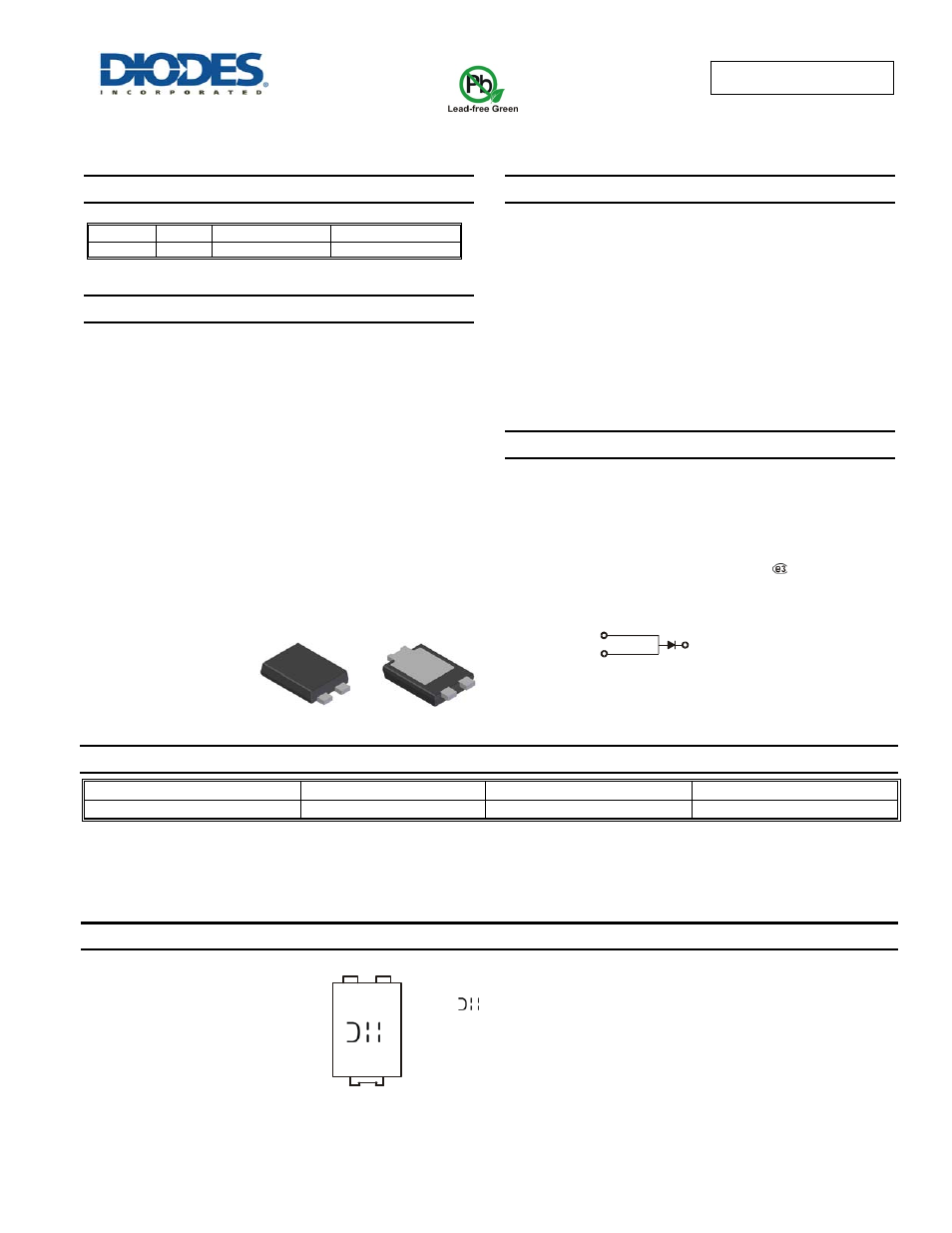

SBR and POWERDI are registered trademarks of Diodes Incorporated.

SBR10U45SP5Q

Document number: DS36358 Rev. 1 - 2

1 of 6

www.diodes.com

June 2013

© Diodes Incorporated

SBR10U45SP5Q


10A SBR

®

SUPER BARRIER RECTIFIER

POWERDI

®

5

Product Summary

V

RRM

(V)

I

O

(A)

V

F MAX

(V) @+25°C I

R MAX

(mA) @+25°C

45 10

0.47

0.3


Description and Applications

This Super Barrier Rectifier (SBR) diode has been designed to meet
the stringent requirements of Automotive Applications. It is ideally
suited to use as :

Polarity Protection Diode

 Re-circulating

Diode

 Switching

Diode

Features and Benefits

100% Avalanche Tested.

Patented SBR technology provides a superior avalanche
capability than schottky diodes ensuring more rugged and
reliable end applications.

Reduced ultra-low forward voltage drop (V

F

); better efficiency

and cooler operation.

Reduced high temperature reverse leakage; increased reliability
against thermal runaway failure at high temperature

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

 Case:

POWERDI5

Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish – Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208

Weight: 0.093 grams (approximate)







Ordering Information

(Note 4)

Part Number

Compliance Case

Packaging

SBR10U45SP5Q-13

Automotive

POWERDI5

5000/Tape & Reel

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information











Top View

Bottom View

LEFT PIN

RIGHT PIN

Note: Pins Left & Right must
be electrically connected

at the printed circuit board.

BOTTOMSIDE
HEAT SINK

S10U45S = Product Type Marking Code

= Manufacturers’ Code Marking

K = Factory Designator
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 13 for 2013)
WW = Week code (01 - 53)

YYWWK

S10U45S

POWERDI

®

5
