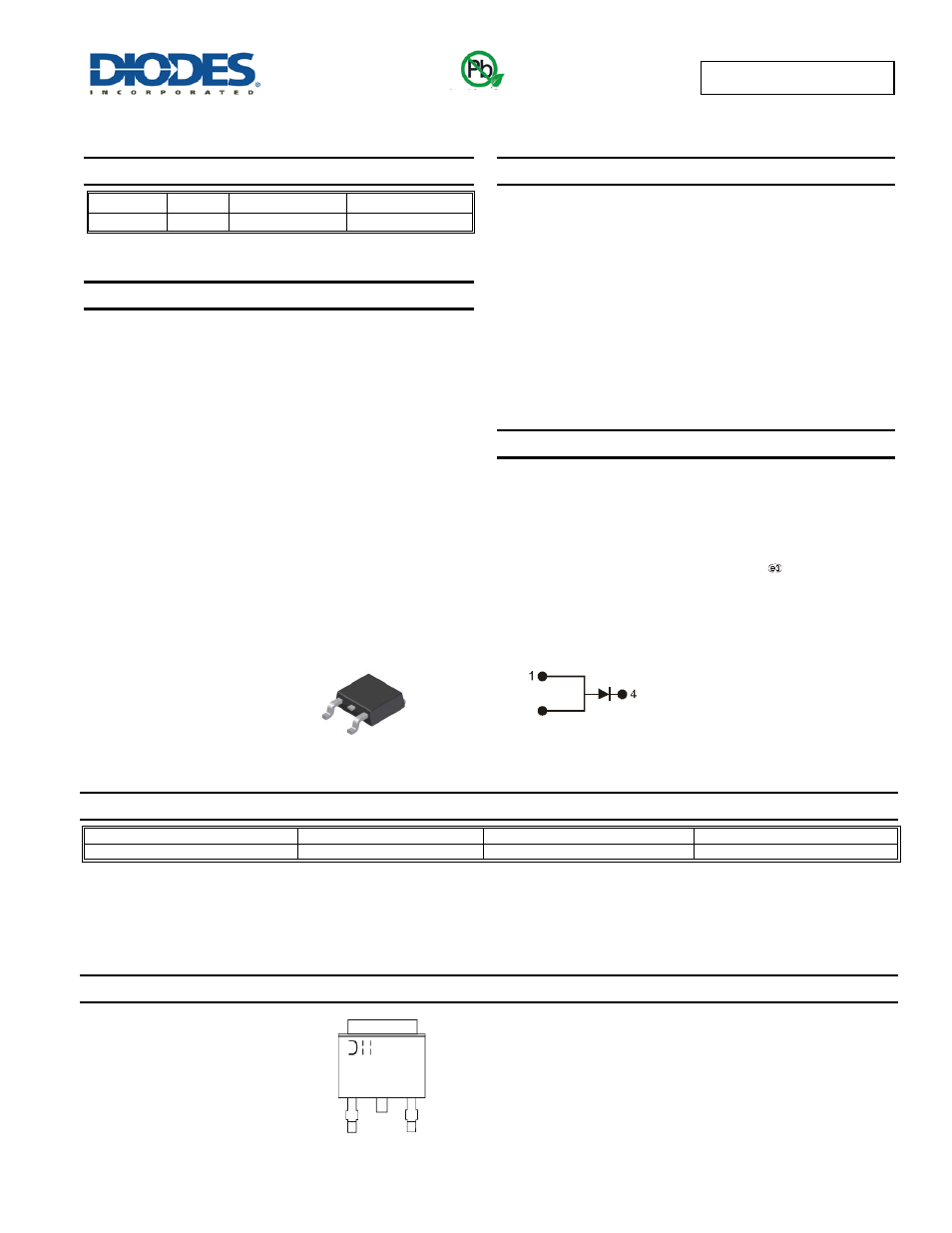

background image

SBR is a registered trademark of Diodes Incorporated.

SBR10U45D1Q

Document number: DS36131 Rev. 2 - 2

1 of 5

www.diodes.com

June 2013

© Diodes Incorporated

SBR10U45D1Q

NE

W

P

R

OD

UC

T


10A SBR

®

SUPER BARRIER RECTIFIER

Product Summary

V

RRM

(V)

I

O

(A)

V

F MAX

(V) @+25°C I

R MAX

(mA) @ +25°C

45

10

0.57

0.3



Description and Applications

This Super Barrier Rectifier (SBR) diode has been designed to meet

the stringent requirements of Automotive Applications. It is ideally

suited to use as a:

Polarity Protection Diode

Re-circulating Diode

Switching Diode







Features and Benefits

100% Avalanche tested

Patented SBR technology provides a superior avalanche

capability than schottky diodes ensuring more rugged and reliable

end applications

Reduced Ultra-low forward voltage drop (V

F

); better efficiency and

cooler operation

Reduced high temperature reverse leakage; Increased reliability

against thermal runaway failure in high temperature operation

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability


Mechanical Data

Case: TO252 (DPAK)

Case Material: Molded Plastic, “Green” Molding compound. UL

Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish - Matte Tin annealed over Copper leadframe.

Solderable per MIL-STD-202, Method 208

Polarity: See Below

Weight: 0.4 grams (approximate)

Ordering Information

(Note 4)

Part Number

Compliance

Case

Packaging

SBR10U45D1Q-13

Automotive

TO252(DPAK)

2500 pieces/reel

Notes:

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds

4.

For packaging details, go to our website at http://www.diodes.com/products/packages.html


Marking Information










3

Top View

Package Pin Out

Configuration

TO252

Green

SBR10U45 = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year, (ex: 13 = 2013)
WW = Week (01 - 53)

YYWW AB

10U45

SBR
