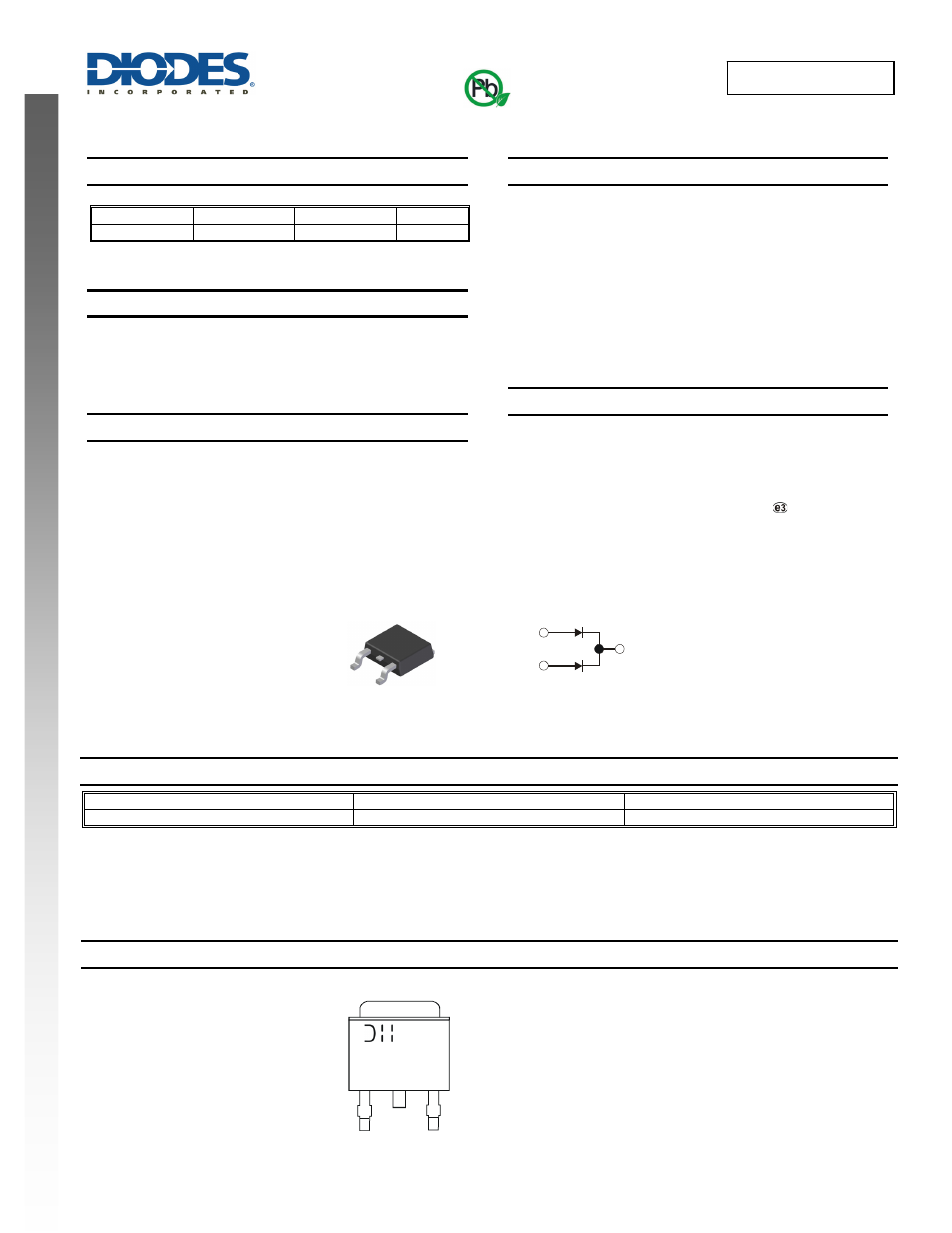

Diodes SBR1045CTLQ User Manual
Sbr1045ctlq new prod uc t, Product summary, Description
SBR is a registered trademark of Diodes Incorporated.
SBR1045CTLQ
Document number: DS36094 Rev. 1 - 2
1 of 6
October 2012
© Diodes Incorporated
SBR1045CTLQ
NEW PROD
UC
T
10A SBR
®
SUPER BARRIER RECTIFIER
Product Summary
V
RRM
(V)
I
O
(A) V
F max
(V) I
R max
(μA)
45 10 0.55
300
Description
The SBR1045CTLQ is dual center tap rectifier in DPAK package.
Offering excellent high temperature stability and low forward voltage
drop for cool operation.
Applications
•
DC – DC Converters
• DC/AC
Inverters
•
AC/DC Power Supplies
Features
•
Low forward voltage drop (V
F
); better efficiency and cooler
operation.
•
Reduced high temperature reverse leakage; Increased
reliability against thermal runaway failure in high temperature
operation
•
Excellent High Temperature Stability
•
Patented Super Barrier Rectifier Technology
•
Soft, Fast Switching Capability
•
+150ºC Operating Junction Temperature
•
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
•
Case: TO252 (DPAK)
•
Case Material: Molded Plastic, “Green” Molding compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish - Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Polarity: See Below
•
Weight: 0.33 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
SBR1045CTLQ-13
TO252 (DPAK)
2500 pieces/reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. Se information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
SBR1045CT = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year, ex: 07 = 2007
WW = Week (01 - 53)
YYWW AB
1045CT
SBR
Green
Top View
2
1
3
Polarity
TO252
