Diodes SBR1045D1Q User Manual
Product summary, Description and applications, Features

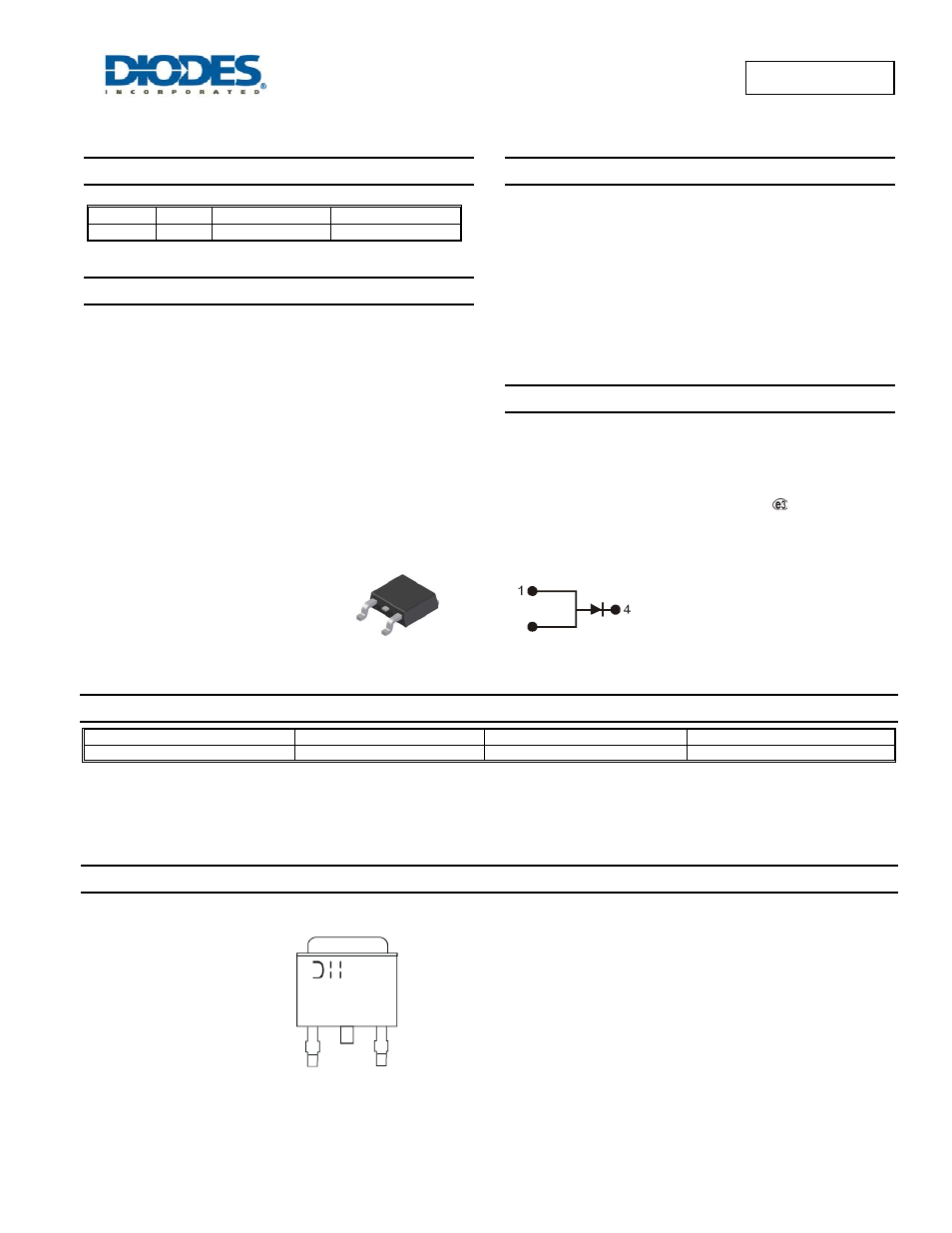

SBR1045D1Q
Document number: DS36362 Rev. 1 - 2
1 of 5
June 2013
© Diodes Incorporated
SBR1045D1Q
SBR is a registered trademark of Diodes Incorporated.
10A SBR
®
SUPER BARRIER RECTIFIER
Product Summary
V
RRM
(V)
I
O
(A)
V
F MAX
(V) @+25°C I
R MAX
(mA) @+25°C
45 10
0.58
0.3
Description and Applications
This Super Barrier Rectifier (SBR) diode has been designed to meet
the stringent requirements of Automotive Applications. It is ideally
suited to use as :
Polarity Protection Diode
Re-circulating
Diode
Switching
Diode
Features
100% Avalanche Tested.
Patented SBR technology provides a superior avalanche
capability than schottky diodes ensuring more rugged and
reliable end applications.
Reduced ultra-low forward voltage drop (VF); better efficiency
and cooler operation.
Reduced high temperature reverse leakage; increased reliability
against thermal runaway failure at high temperature
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: TO252 (DPAK)
Case Material: Molded Plastic, “Green” Molding compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.33 grams (approximate)
Ordering Information
(Note 4)
Part Number
Compliance Case
Packaging
SBR1045D1Q-13
Automotive
TO252 (DPAK)
2500/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Top View
Polarity
3
SBR1045 = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 13 = 2013)
WW = Week (01 - 53)
YYWW AB
1045
SBR
