Diodes SBR40U200CT User Manual
Features, Mechanical data, Maximum ratings (per leg)

SBR40U200CT
Document number: DS31242 Rev. 4 - 2
1 of 4
December 2009
© Diodes Incorporated
SBR40U200CT
SBR is a registered trademark of Diodes Incorporated.
40A SBR
®
SUPER BARRIER RECTIFIER
Features
•
Ultra Low Forward Voltage Drop
•
Excellent High Temperature Stability
•
Patented Super Barrier Rectifier Technology
•
Soft, Fast Switching Capability
•
150ºC Operating Junction Temperature
•
Lead Free Finish, RoHS Compliant (Note 2)
•
Also Available in Green Molding Compound (Note 4)
Mechanical Data
• Case:
TO-220AB
•
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
•
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Marking Information: See Page 2
•
Ordering Information: See Page 2
•
Weight: 1.85 grams (approximate)
Maximum Ratings (Per Leg)
@T
A
= 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic Symbol
Value
Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
V
RRM
V
RWM
V
RM
200 V
Average Rectified Output Current Per Device
(Per Leg)
(Total)
I
O
20
40
A
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
I
FSM
240 A
Thermal Characteristics (Per Leg)
Characteristic Symbol
Value
Unit
Typical Thermal Resistance
Thermal Resistance Junction to Case (Note 3)
Thermal Resistance, Junction to Ambient (Note 3)
R
θJC
R
θJA
0.6
7.8
ºC/W
Operating and Storage Temperature Range
T
J
, T
STG
-65 to +150
ºC
Electrical Characteristics (Per Leg)
@T
A
= 25°C unless otherwise specified
Characteristic Symbol
Min
Typ
Max
Unit
Test
Condition
Forward Voltage Drop (per leg)
V
F
-
0.83
0.68
0.89
0.73
V
I
F
= 20A, T
J
= 25ºC
I
F
= 20A, T
J
= 125ºC
Leakage Current (Note 1)
I
R
- -
0.2
40
mA
V
R
= 200V, T
J
= 25ºC
V
R
= 200V, T
J
= 125ºC
Reverse Recovery Time
t
rr
- 38 50
ns
I
F
= 0.5A, I
R
= 1A, I
RR
= 0.25A
- 25 35
I
F
= 1A, V
R
= 30V
di/dt = 100A/
μs, T
J
= 25ºC
Notes:
1. Short duration pulse test used to minimize self-heating effect.
2. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at
3. Device mounted on heatsink (Black Aluminum, 50mm x 37mm x 15mm)

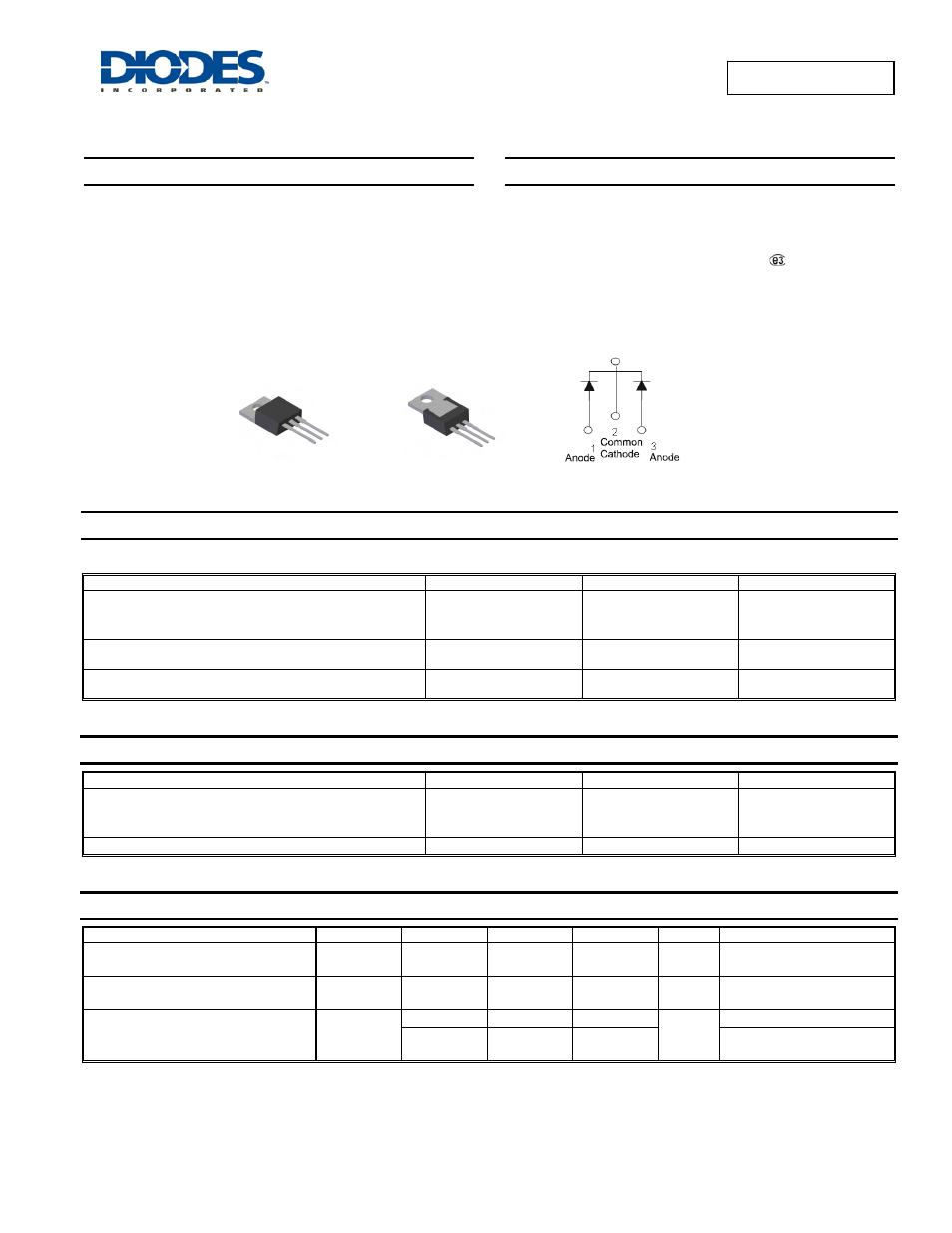

TO-220AB
Top View
Package Pin Out
Configuration
TO-220AB
Bottom View
