Diodes SBRT10M50SP5 - Manual

SBR and POWERDI are registered trademarks of Diodes Incorporated.

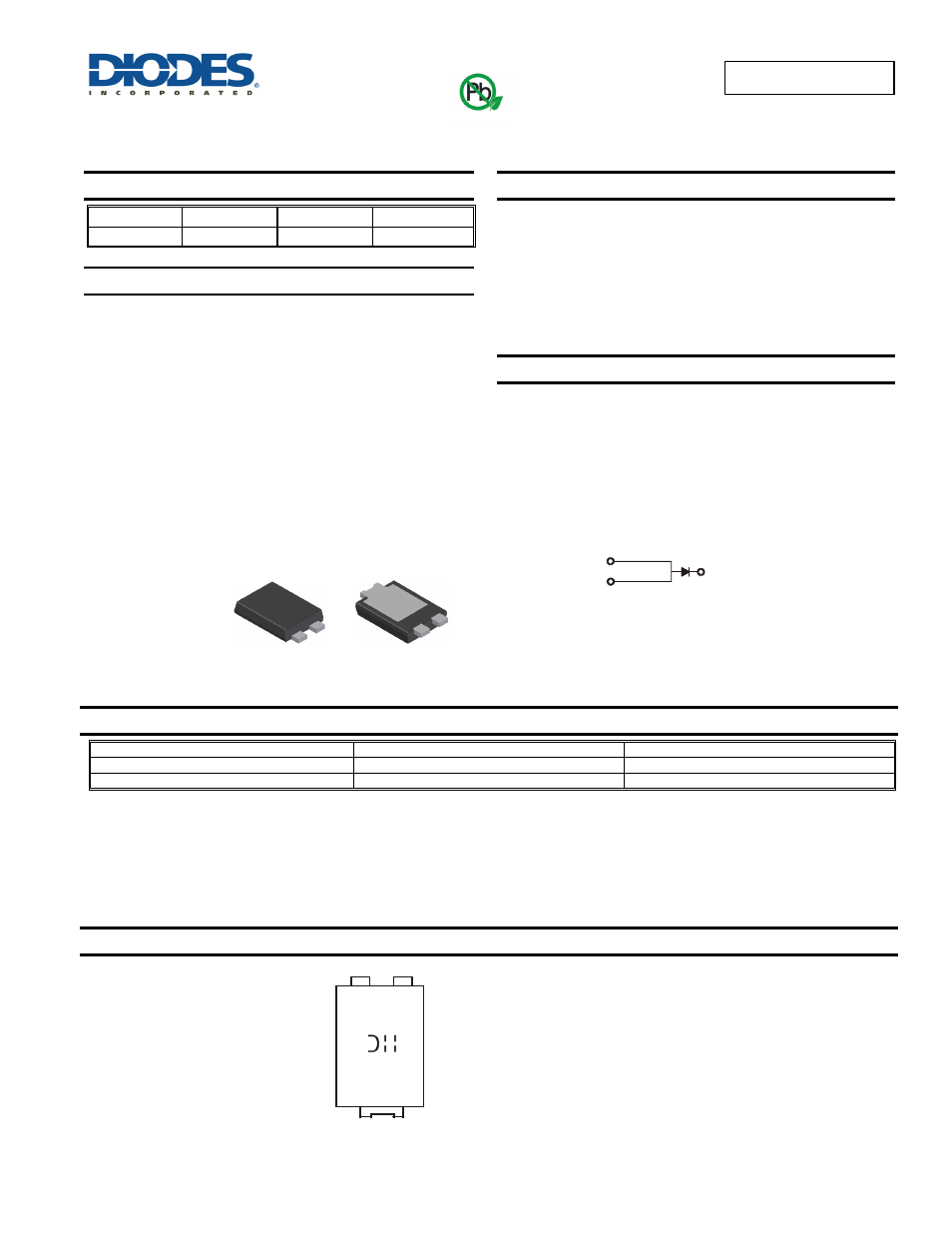

SBRT10M50SP5
Document number: DS36537 Rev. 3 - 2
1 of 4
www.diodes.com
January 2014
© Diodes Incorporated
SBRT10M50SP5
NEW PROD
UC
T
ADVANCED INFORMATION
10A Trench SBR
TRENCH SUPER BARRIER RECTIFIER
POWERDI ® 5
Product Summary
(@ T
A
= +25°C)
V
RRM
(V) I
O
(A) V
F(MAX)
(V) I
R(MAX)
(mA)
50 10 0.47 0.15
Description and Applications
Packaged in the compact thermally efficient POWERDI5 package, the
Trench SBR SBRT10M50SP5 provides ultra-low reverse leakage (I
R
)
and provides excellent forward voltage drop (V
F
) at high
temperatures. It is ideal for use as a rectification, freewheeling or
polarity protection diode in applications such as:
• >10W AC/DC Adaptors/Chargers
• DC/DC Converters
Features and Benefits
• Ultra low forward voltage drop (V
F
) helps – minimizes power
losses
• Excellent reverse leakage (I
R
) stability at higher temperatures
• Thermally efficient package for cooler running applications
• Less than 1.1mm package profile ideal for thin applications
• Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
• Case: POWERDI5
• Case Material: Molded Plastic, “Green” Molding compound. UL
Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminal Connections: See Diagram Below
• Weight: 0.093 grams (approximate)
Ordering Information
(Note 4)
Part Number Case Packaging
SBRT10M50SP5-13 POWERDI5 5000/Tape & Reel
SBRT10M50SP5-13D POWERDI5 5000/Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
POWERDI5 available in 5K quantity on 13inch reel &12mm tape, part number suffix “13D”.
Marking Information
LEFT PIN
RIGHT PIN
Note: Pins Left & Right must
be electrically connected
at the printed circuit board.
BOTTOMSIDE
HEAT SINK
Bottom View Top View
POWERDI5
Green
YYWWK
T10M50S
T10M50S = Product Type Marking Code
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 13 = 2013)
K = Factory Designator
