SBR is a registered trademark of Diodes Incorporated.

SBR40U60CT

Document number: DS31145 Rev. 7- 2

1 of 4

www.diodes.com

August 2012

© Diodes Incorporated

SBR40U60CT


40A SBR

®

SUPER BARRIER RECTIFIER

Features

Ultra Low Forward Voltage Drop

• Low

Leakage

Current

Excellent High Temperature Stability

Patented Super Barrier Rectifier Technology

Soft, Fast Switching Capability

150ºC Operating Junction Temperature

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Also Available in Green Molding Compound (Note 4)

Halogen and Antimony Free. “Green” Device (Note 3)

Mechanical Data

• Case:

TO-220AB

Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0

Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208

Weight: TO-220AB - 1.85 grams (approximate)















Ordering Information

(Notes 4 & 5)

Part Number

Case

Packaging

Pb

SBR40U60CT TO-220AB

50

pieces/tube

Green

SBR40U60CT-G TO-220AB

50

pieces/tube

Notes:

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.



3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For Green Molding Compound version part numbers, add "-G" suffix to part number above. Examples: SBR40U60CT-G.
5. For packaging details, go to our website at http://www.diodes.com.



Marking Information






















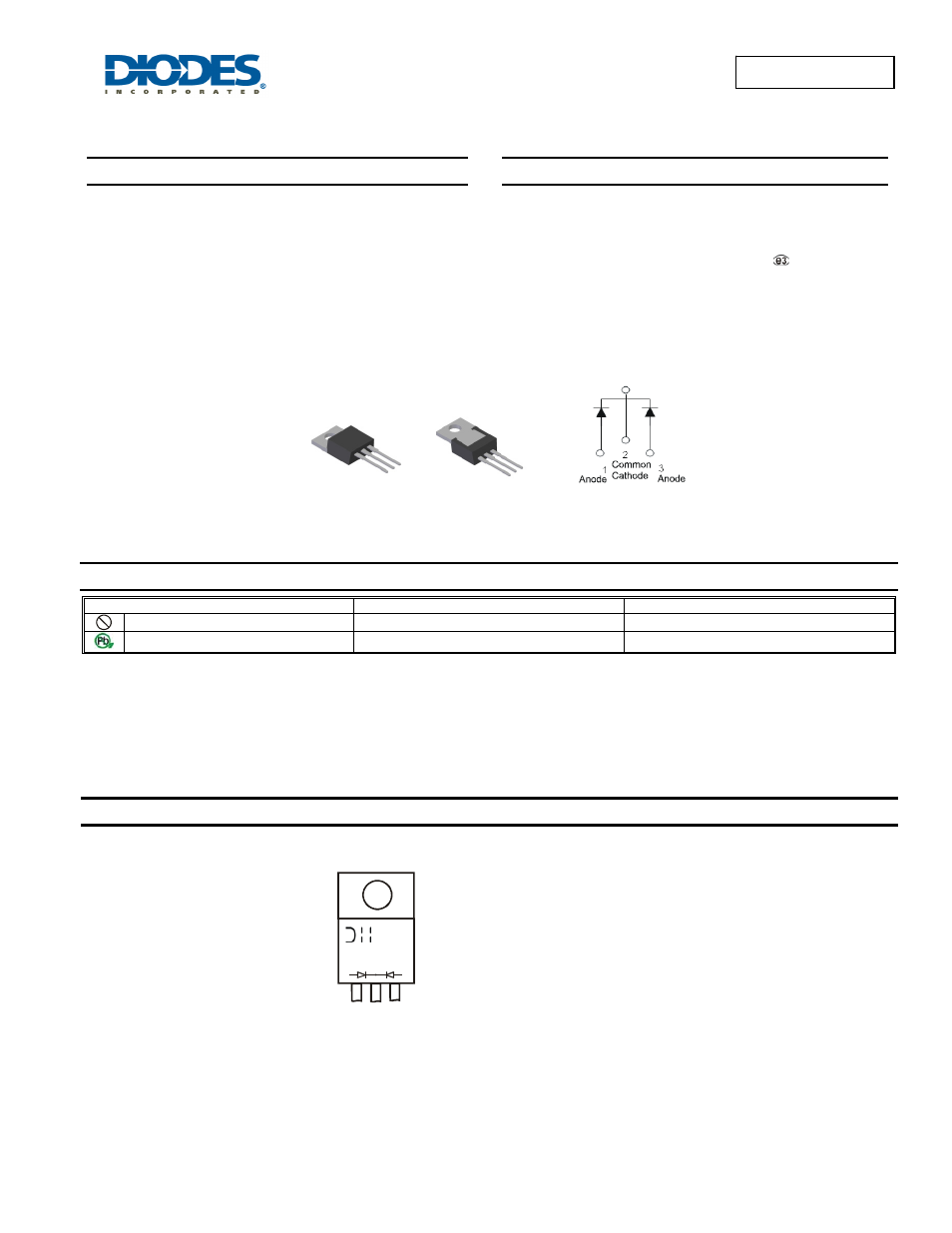

Package Pin Out

Configuration

TO-220AB

Top View

TO-220AB

Bottom View

SBR40U60CT = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 07 = 2007)
WW = Week (01 - 53)

40U60CT

YYWW

AB

SBR
